Part Number:
Status:
Overview:
Description:
0474036002
Active
esatausb_combo_receptacles
Combo External Serial ATA and USB Receptacles, Reverse Type, Through Hole, Right
Angle, with Through Hole type Solder Tabs, Beveled Metal Pins and Mylar, Lead free
Documents:
3D Model

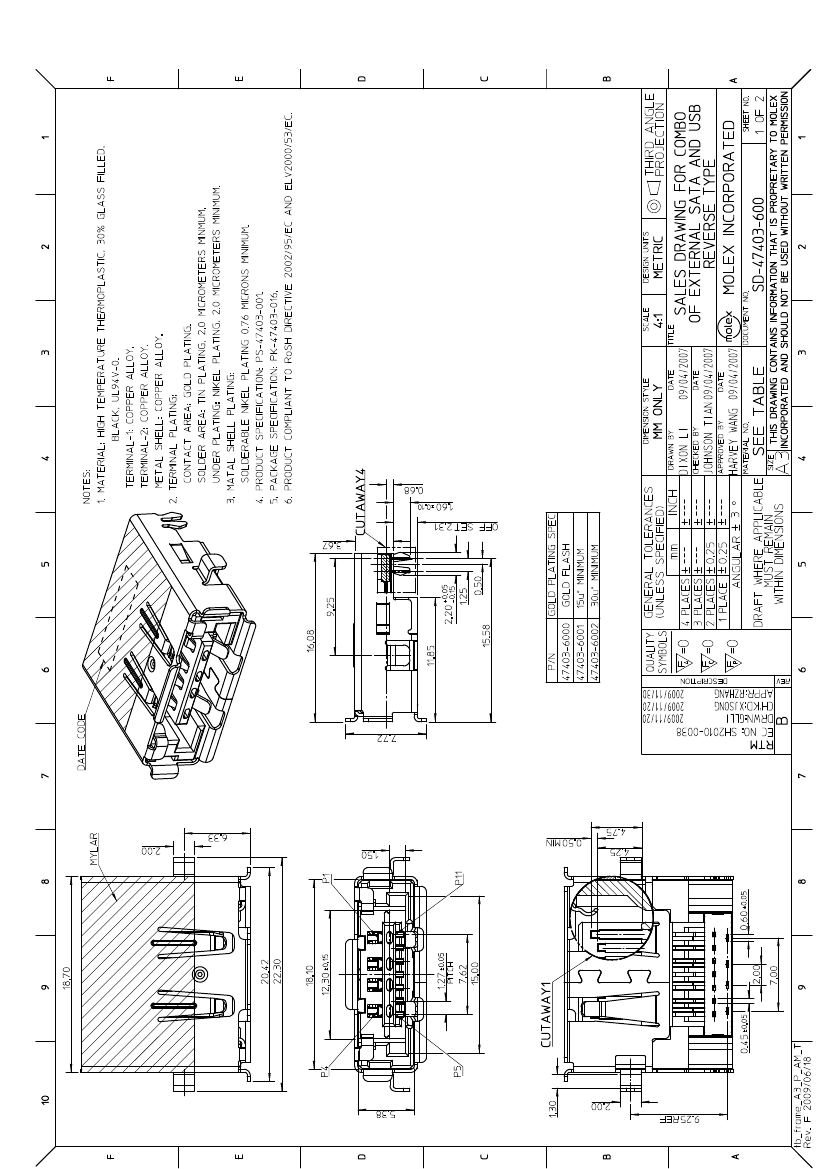

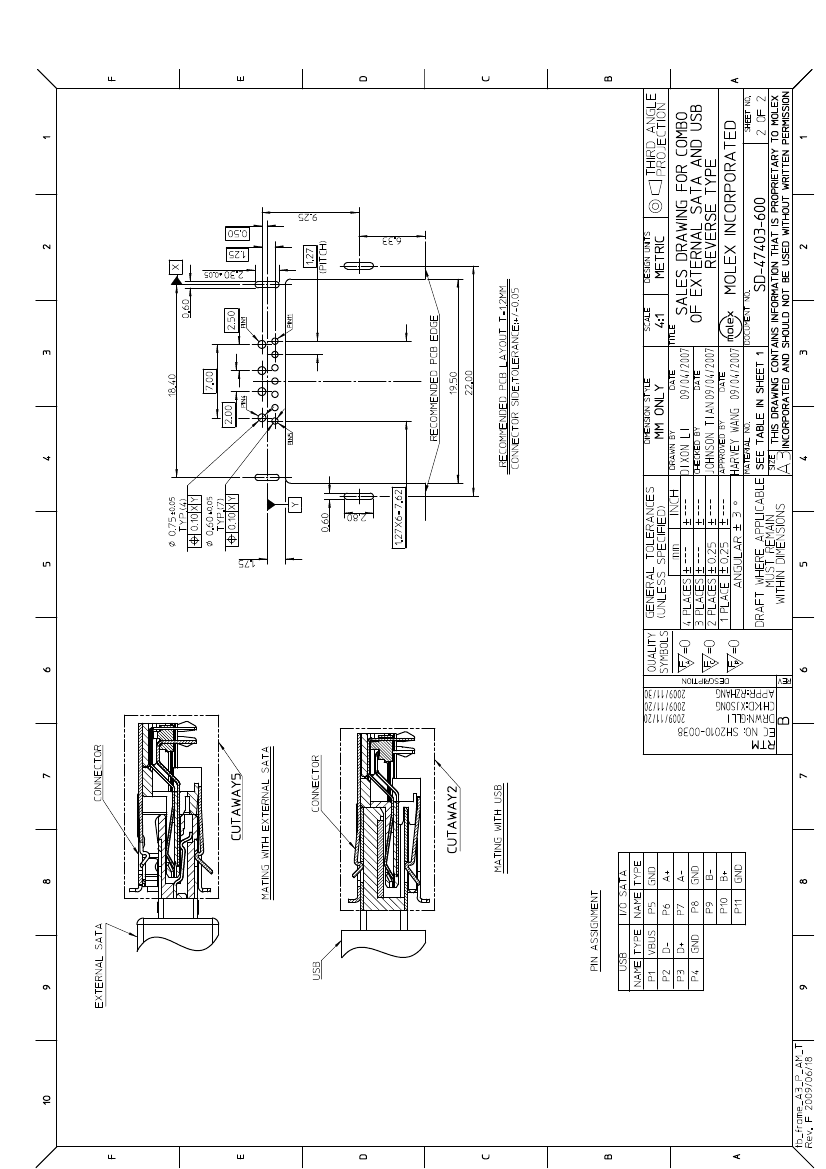

Drawing (PDF)
Product Specification PS-47403-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
I/O Connectors
47403
Wire-to-Board
Through hole type front solder tabs . Reverse mounted
on recessed PCB . Durability: 1,500 cycles for USB;
2,500 cycles for eSATA
Receptacle
esatausb_combo_receptacles
eSATA/USB Combo, External Serial ATA, USB
N/A
Component Type
Overview
Product Name
Type
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Physical
Circuits (Loaded)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Gender
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Ports
Temperature Range - Operating
Termination Interface: Style
4, 7
eSATA: 7 circuits; USB: 4 circuits
Black
1,500
Male
Yes
Yes
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
2
Right Angle
No
Yes
0.047 In
1.20 mm
Embossed Tape on Reel
Yes
0.050 In, 0.079 In, 0.098 In
1.27 mm, 2.00 mm, 2.50 mm
0.050 In, 0.079 In, 0.098 In
1.27 mm, 2.00 mm, 2.50 mm
30
0.76
80
2
Yes
Yes
1
-35°C to +85°C
Through Hole
