48325-4002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 48325-4002

48325-4002: Description1.00mm (.039"), 1.27mm (.050") Pitch Slimline Serial ATA Receptacle, Right Angle,Reverse Type, Through Hole, 0.38楼矛m (15楼矛") Gold (Au) Plating, Mounted Height:5.80mm (.228"); CategoryThe connector The connector; File Size167KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

48325-4002 Overview

1.00mm (.039"), 1.27mm (.050") Pitch Slimline Serial ATA Receptacle, Right Angle,Reverse Type, Through Hole, 0.38楼矛m (15楼矛") Gold (Au) Plating, Mounted Height:5.80mm (.228")

48325-4002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn)
Contact material	COPPER ALLOY
Durability	500 Cycles
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	48325
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.07 inch
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0483254002

Active

Slimline Serial ATA ODD Connectors

1.00mm (.039"), 1.27mm (.050") Pitch Slimline Serial ATA Receptacle, Right Angle,

Reverse Type, Through Hole, 0.38µm (15µ") Gold (Au) Plating, Mounted Height:

5.80mm (.228"), with Cap and Screw, Lead free

Documents:

3D Model

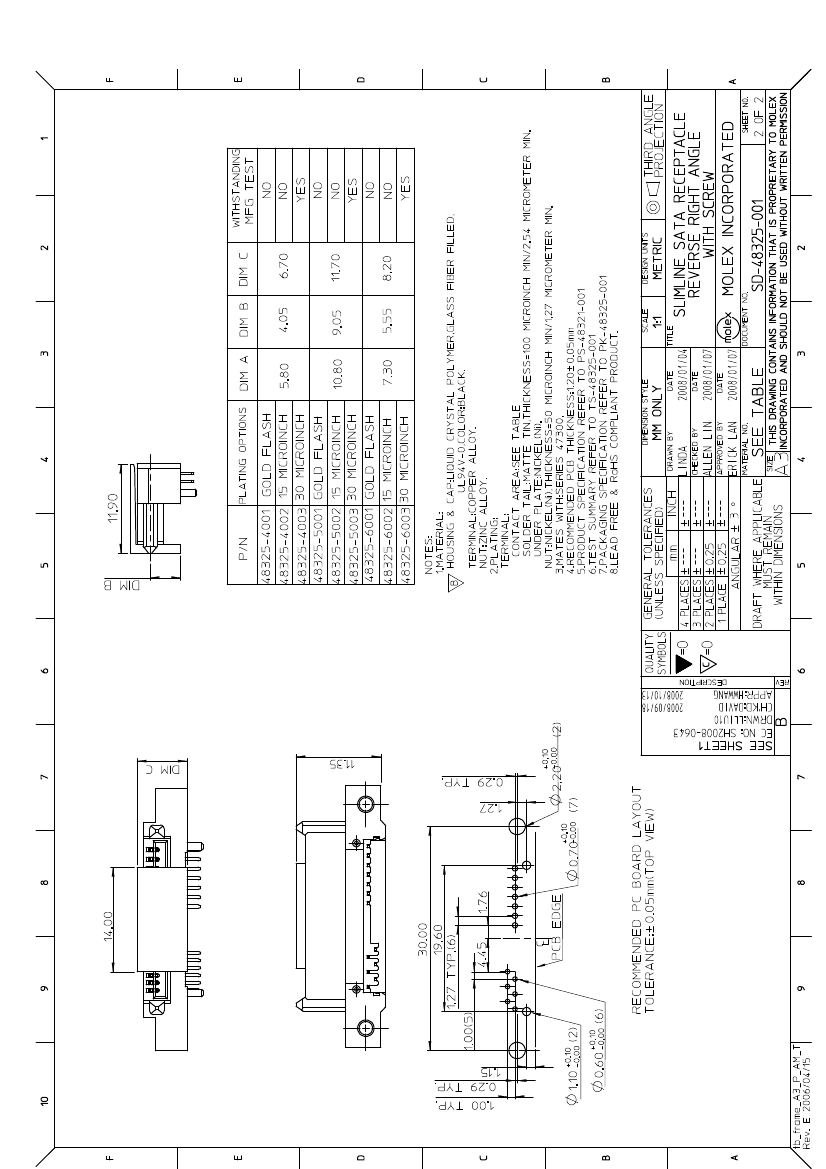

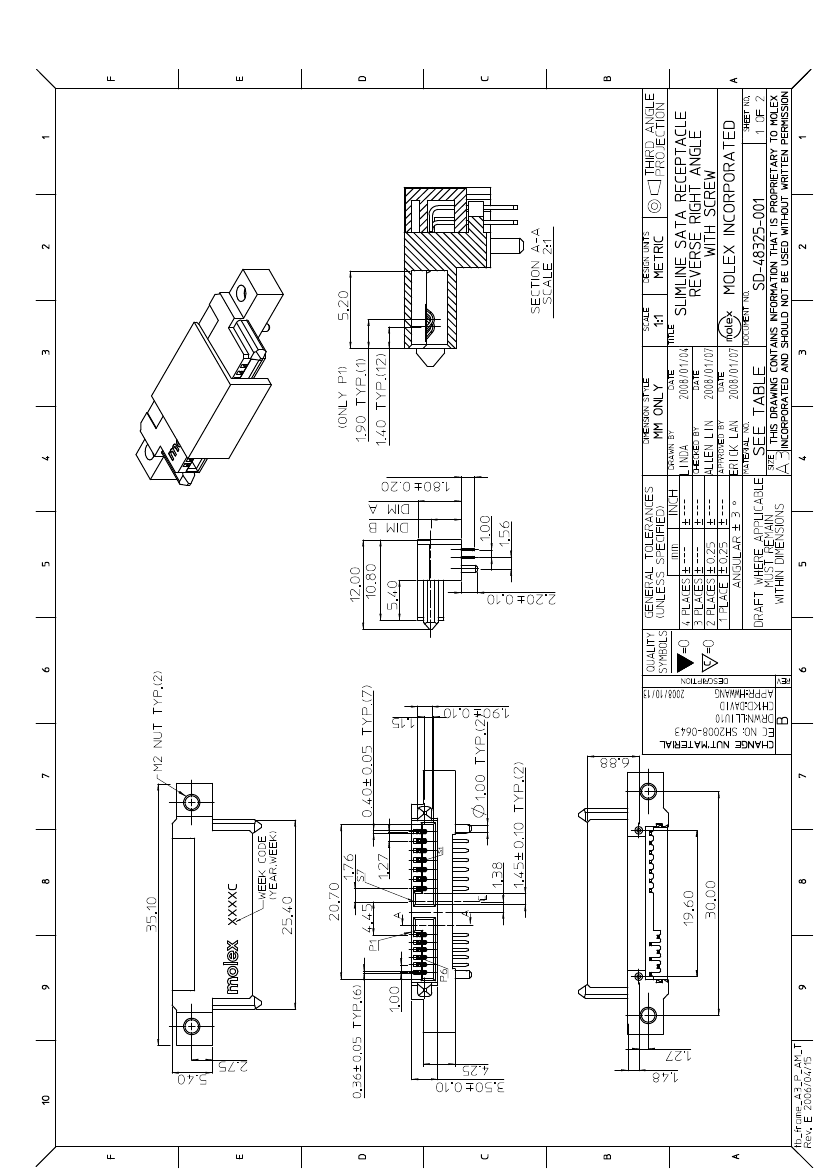

Drawing (PDF)

Product Specification PS-48321-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Receptacles

48325

Board-to-Board

Screw version

Slimline Serial ATA ODD Connectors

Serial ATA, Slimline Serial ATA

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Black

500

94V-0

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

Right Angle

0.071 In

1.80 mm

Yes

0.047 In

1.20 mm

Embossed Tape on Reel

0.039 In, 0.050 In

1.00 mm, 1.27 mm

0.039 In, 0.050 In

1.00 mm, 1.27 mm

0.38

100

2.54

Yes

Email pro

For a mu

Complian

Please vi

non-prod

48325S

Mates

473001
