Part Number:
Status:
Overview:
Description:
0850480660
Active
din_41612
2.54mm (.100") Pitch DIN 41612/IEC 603-2 Mixed Layout Connector, Through Hole,
Vertical, Female Style M, 48 Circuits
Documents:
3D Model

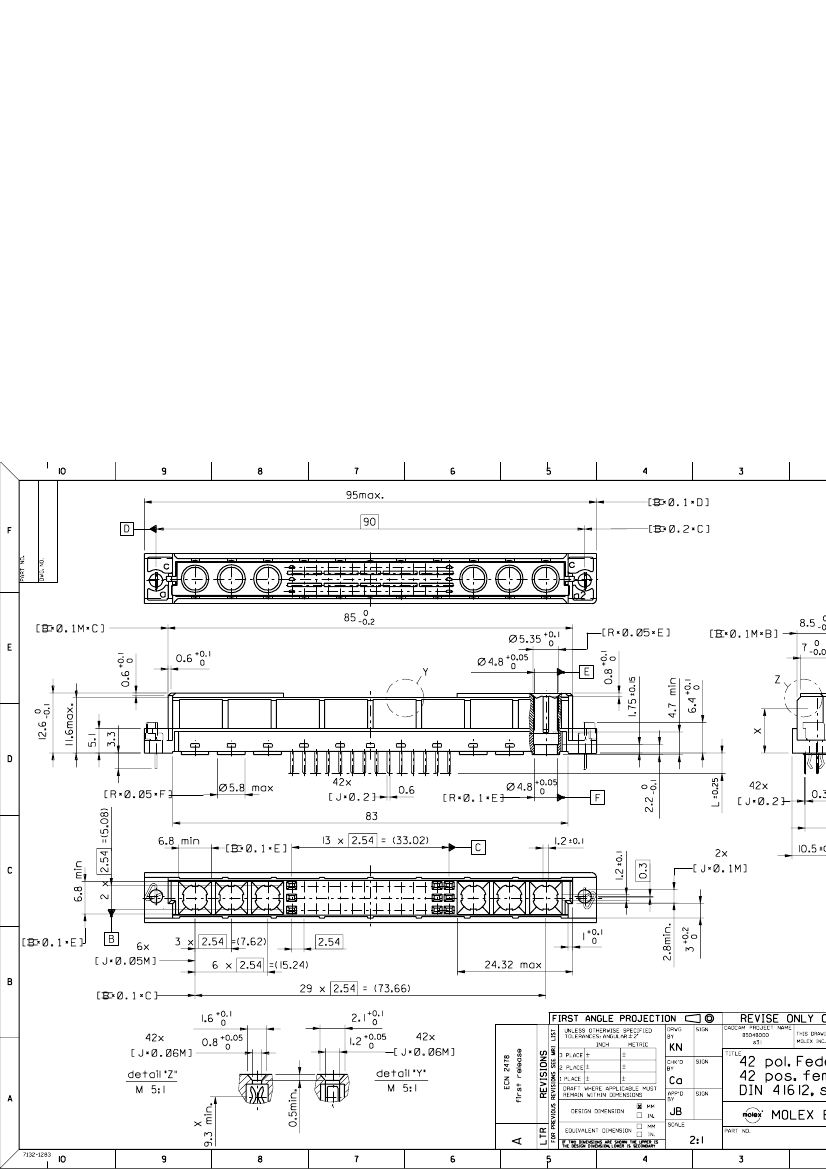

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
85048
Daughtercard
Mixed Layout
PCB Receptacle
din_41612
IEC 603-2/DIN 41612
M
EU RoHS
Complia
Not Revi
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
48
48
Rows A, B & C
500
No
94V-0
No
Yes
Copper Alloy
Gold
Tin
14
Open Pin Field
3
Vertical
0.177 In
4.50 mm
No
Yes
Carton
0.100 In
2.54 mm
0.100 In
2.54 mm
39.37
1.00
Yes
No
No
-55°C to +125°C
Through Hole
Email pro
For a mu
Complian
Please vi
non-prod
Search
85048S
Mates
DIN 41
Connec
Use W
85022
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Voltage - Maximum
1A
622.0 Mbps
30
250V AC (RMS)
Material Info
Reference - Drawing Numbers
Packaging Specification

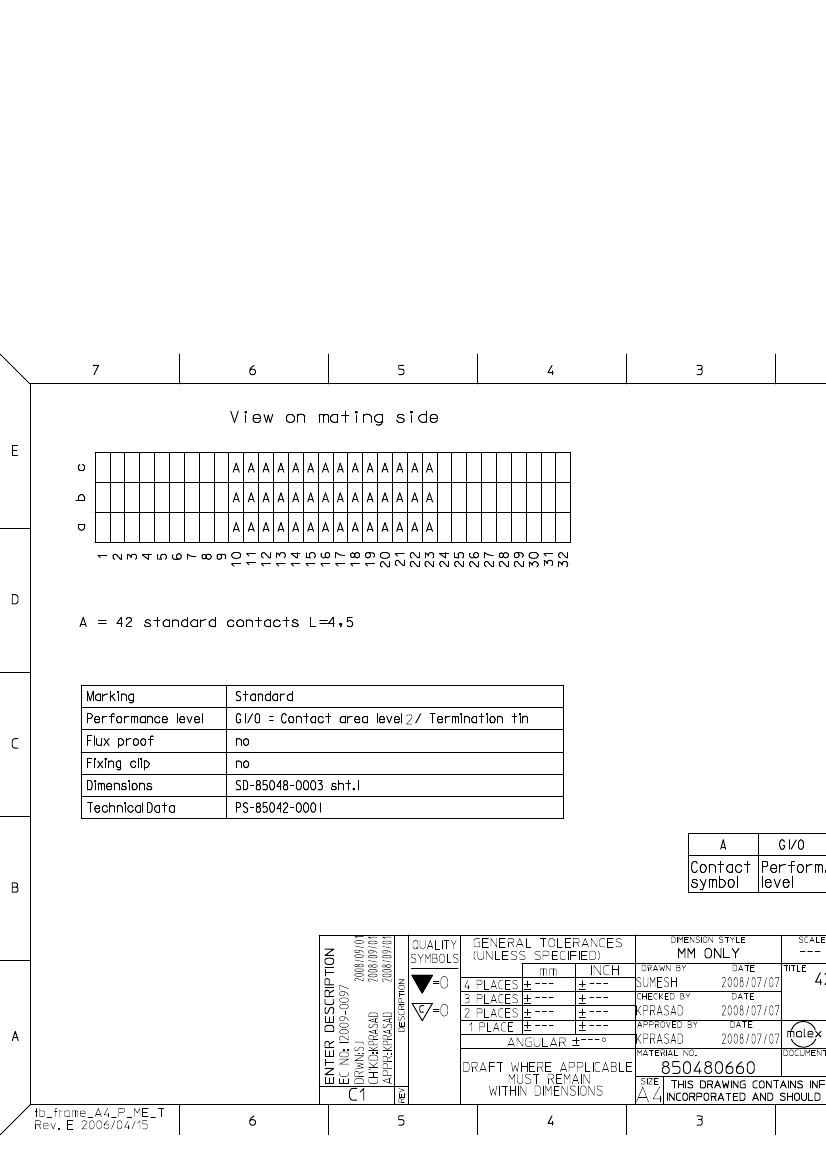

Sales Drawing
PK-85048-001
SD-85048-0003, SD-85048-0660
