85056-0074 Overview

80 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER

85056-0074 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	STANDARDS: DIN 41612; IEC 603-2, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	85056
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0850560074

Active

din_41612

2.54mm (.100") Pitch DIN 41612/IEC 603-2 Mixed Layout Connector, Female Style M

Inverse, 78 Circuits, Lead free

Documents:

3D Model

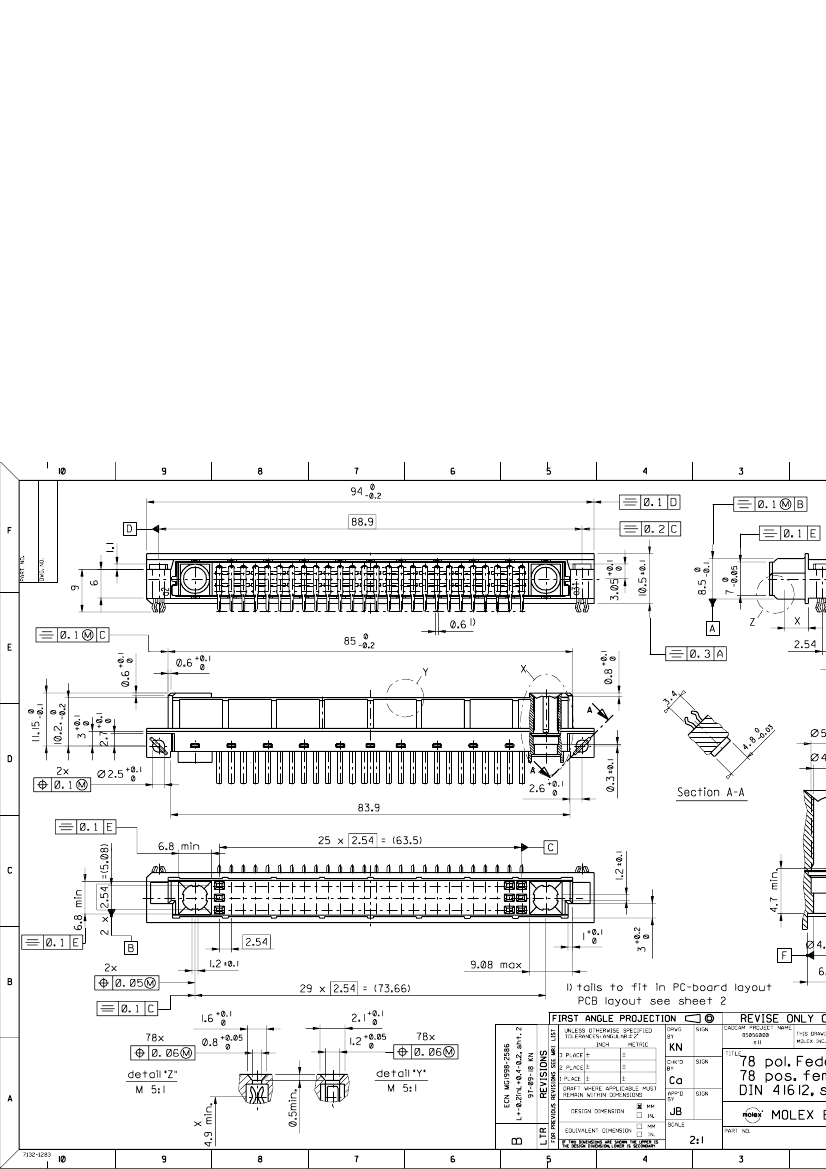

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

Backplane Connectors

85056

Daughtercard

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Plating Mating

Material - Plating Termination

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Standard Contacts at A:a4-a29; B:b4-b29; C:c4-c29

400

94V-0

Yes

Gold

Tin

Open Pin Field

Right Angle

0.133 In

3.40 mm

Yes

0.063 In, 0.126 In

1.60 mm, 3.20 mm

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

0.60

Yes

-55°C to +125°C

Through Hole

Email pro

For a mu

Complian

Please vi

non-prod

85056S

Mates

DIN 41

Connec

Use W

85022
