SY58051UMITR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SY58051UMITR

SY58051UMITR: DescriptionLow Skew Clock Driver, 58051 Series, 1 True Output(s), 0 Inverted Output(s), 3 X 3 MM, MLF-16; Categorylogic logic; File Size265KB，10 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

SY58051UMITR Overview

Low Skew Clock Driver, 58051 Series, 1 True Output(s), 0 Inverted Output(s), 3 X 3 MM, MLF-16

SY58051UMITR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	DFN
package instruction	HVQCCN,
Contacts	16
Manufacturer packaging code	MLF
Reach Compliance Code	compliant
Other features	ALSO OPERATES AT 3.3V SUPPLY
series	58051
Input adjustment	DIFFERENTIAL MUX
JESD-30 code	S-XQCC-N16
JESD-609 code	e0
length	3 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs
Number of terminals	16
Actual output times	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	240
propagation delay (tpd)	0.19 ns
Certification status	Not Qualified
Maximum seat height	0.95 mm
Maximum supply voltage (Vsup)	2.625 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	3 mm

Preview

Download Datasheet

View All

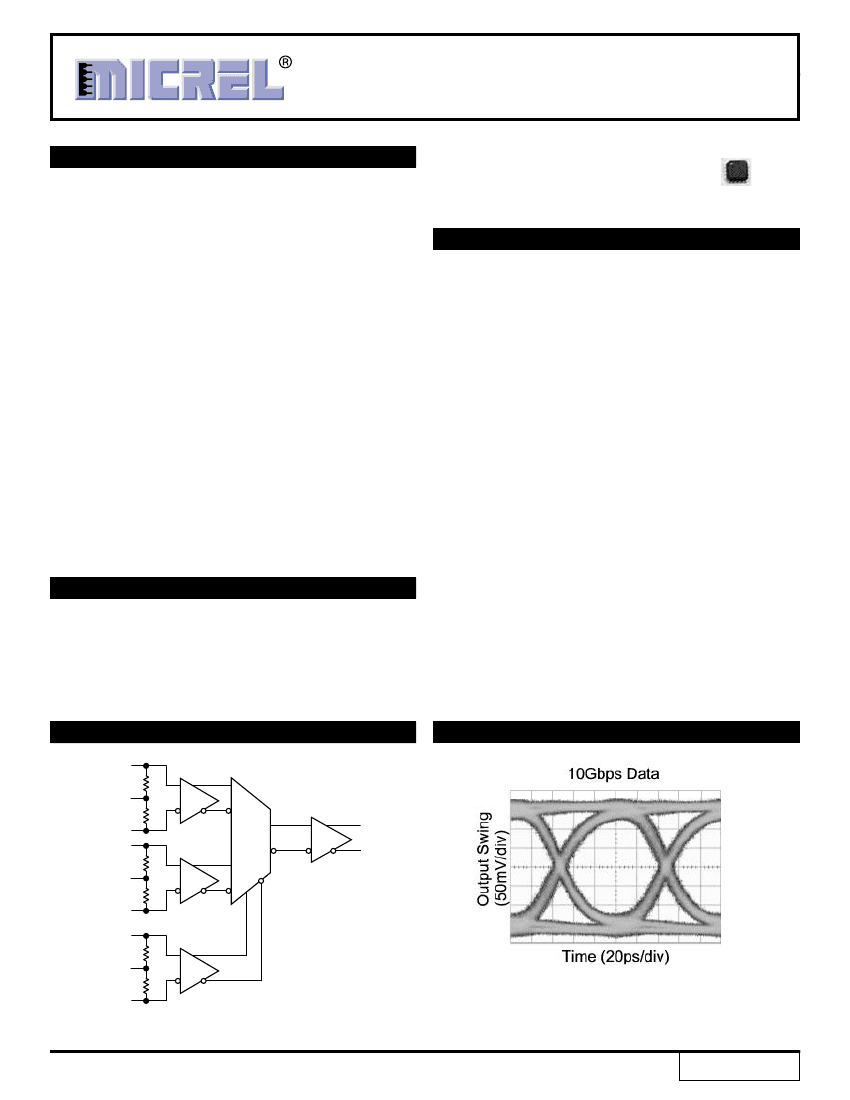

Micrel

ULTRA-PRECISION CML

AnyGate® WITH INTERNAL INPUT

AND OUTPUT TERMINATION

Precision Edge™

SY58051U

Precision Edge™

SY58051U

FEATURES

Three matched-delay input pair provide any logic

function: AND, NAND, OR, NOR, XOR

Guaranteed AC performance over temperature and

voltage:

• DC-to > 10.7Gbps data rate throughput

• DC-to > 7GHz clock f

MAX

• < 190ps Any In-to-Out t

• t

/ t

< 60ps

Ultra low-jitter design:

• < 1ps

rms

random jitter

• < 10ps

deterministic jitter

• < 10ps

total jitter (clock)

Unique input termination and V

pin accepts DC-

coupled and AC-coupled inputs (CML, PECL)

Internal 50

Ω

output source termination

Typical 400mV CML output swing (R

= 50

Ω

)

Internal 50

Ω

input termination

Power supply 2.5V

5% or 3.3V

10%

–40

C to 85

C temperature range

Available in a 16-pin (3mm

3mm) MLF™ package

Precision Edge™

DESCRIPTION

The SY58051U is an ultra-fast, low jitter universal logic

gate with a guaranteed maximum data or clock throughput

of 10.7Gbps or 7GHz, respectively. This AnyGate

differential logic device will produce many logic functions of

two Boolean variables, such as AND, NAND, OR, NOR,

DELAY, or NEGATION.

The SY58051U differential inputs include a unique,

internal termination design that allows access to the

termination network through a V

pin. This feature allows

the device to easily interface to different logic standards,

both AC- and DC-coupled without external resistor-bias and

termination networks. The result is a clean, stub-free, low-

jitter interface solution. The differential CML output is

optimized for 50Ω environments with internal 50Ω source

termination and a 400mV output swing.

The SY58051U operates from a 2.5V or 3.3V supply,

and is guaranteed over the full industrial temperature range

(–40°C to +85°C). The SY58051U is part of a Micrel’s

Precision Edge™ product family.

All support documentation can be found on Micrel’s web

site at www.micrel.com.

APPLICATIONS

Data communication systems

OC-192, OC-192+FEC

All SONET OC-3 — OC-768 applications

All Fibre Channel applications

All GigE applications

FUNCTIONAL BLOCK DIAGRAM

50Ω

TYPICAL APPLICATION

10Gbps 2

–1 PRBS

(100mV Input, 400mV Output)

Precision Edge is a trademark of Micrel, Inc. and AnyGate is a registered trademark of Micrel, Inc.

Micro

LeadFrame and MLF are trademarks of Amkor Technology, Inc.

M9999-050404

hbwhelp@micrel.com or (408) 955-1690

Rev.: A

Amendment: /0

Issue Date: May 2004

SY58051UMITR Related Products

	SY58051UMITR	SY58051UMI
Description	Low Skew Clock Driver, 58051 Series, 1 True Output(s), 0 Inverted Output(s), 3 X 3 MM, MLF-16	Low Skew Clock Driver, 58051 Series, 1 True Output(s), 0 Inverted Output(s), 3 X 3 MM, MLF-16
Is it Rohs certified?	incompatible	incompatible
Maker	Micrel ( Microchip )	Micrel ( Microchip )
Parts packaging code	DFN	DFN
package instruction	HVQCCN,	HVQCCN,
Contacts	16	16
Manufacturer packaging code	MLF	MLF
Reach Compliance Code	compliant	compliant
Other features	ALSO OPERATES AT 3.3V SUPPLY	ALSO OPERATES AT 3.3V SUPPLY
series	58051	58051
Input adjustment	DIFFERENTIAL MUX	DIFFERENTIAL MUX
JESD-30 code	S-XQCC-N16	S-XQCC-N16
JESD-609 code	e0	e0
length	3 mm	3 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	16	16
Actual output times	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	HVQCCN	HVQCCN
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	240	240
propagation delay (tpd)	0.19 ns	0.19 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	0.95 mm	0.95 mm
Maximum supply voltage (Vsup)	2.625 V	2.625 V
Minimum supply voltage (Vsup)	2.375 V	2.375 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD
Terminal pitch	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	30	30
width	3 mm	3 mm
