CLC432AMC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> CLC432AMC

CLC432AMC: DescriptionOperational Amplifier, 2 Func, 6000uV Offset-Max,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size806KB，6 Pages; ManufacturerComlinear Corporation

Download Datasheet Parametric Compare View All

CLC432AMC Overview

Operational Amplifier, 2 Func, 6000uV Offset-Max,

CLC432AMC Parametric

Parameter Name	Attribute value
Maker	Comlinear Corporation
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	63 dB
Maximum input offset voltage	6000 µV
JESD-30 code	X-XUUC-N8
Negative supply voltage upper limit	-16.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
Nominal slew rate	2000 V/us
Supply voltage upper limit	16.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER

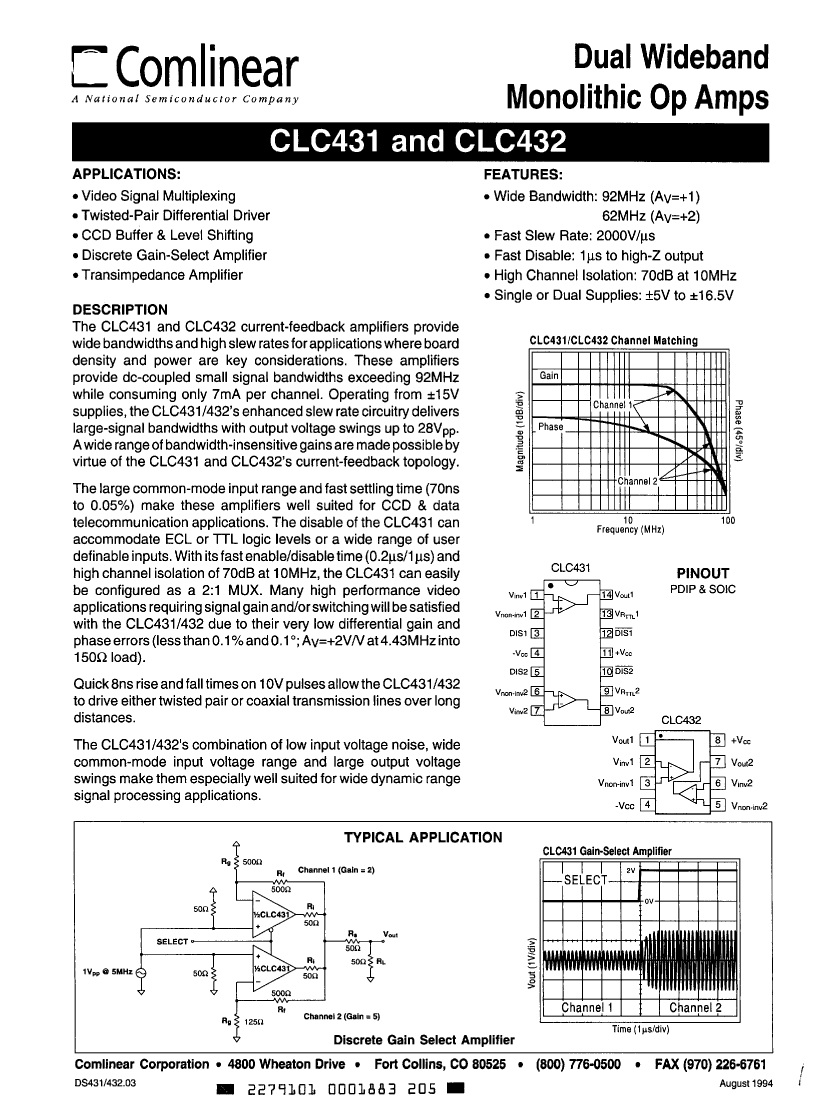

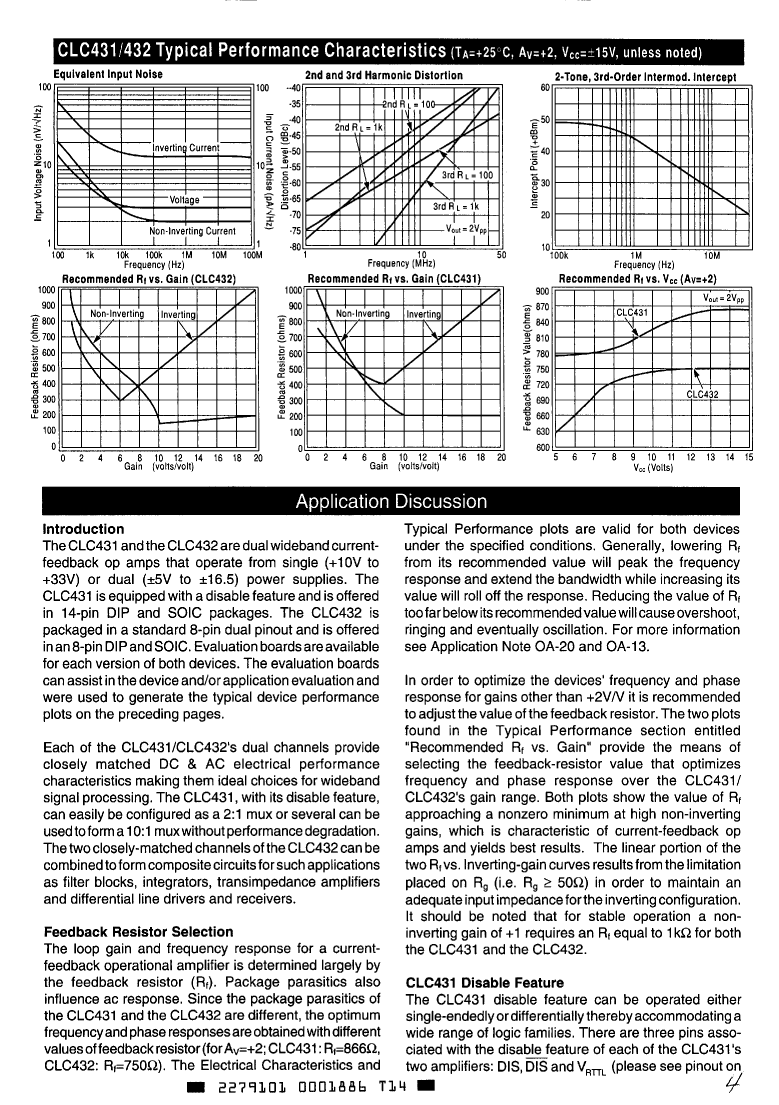

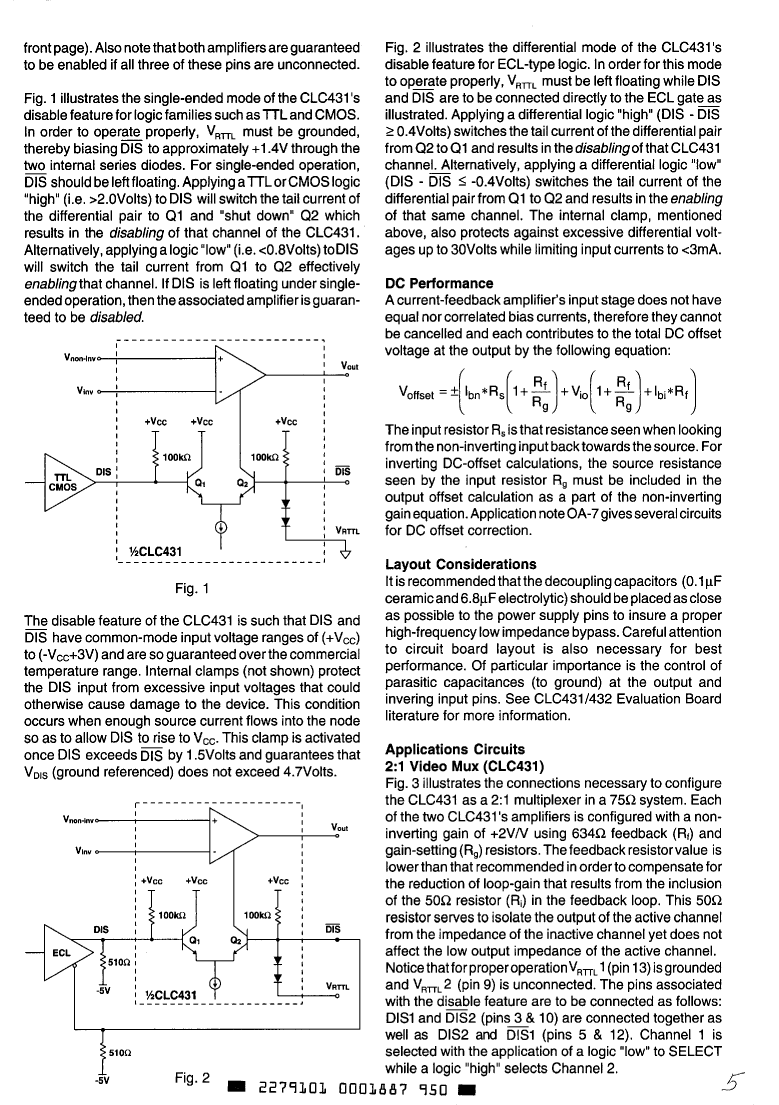

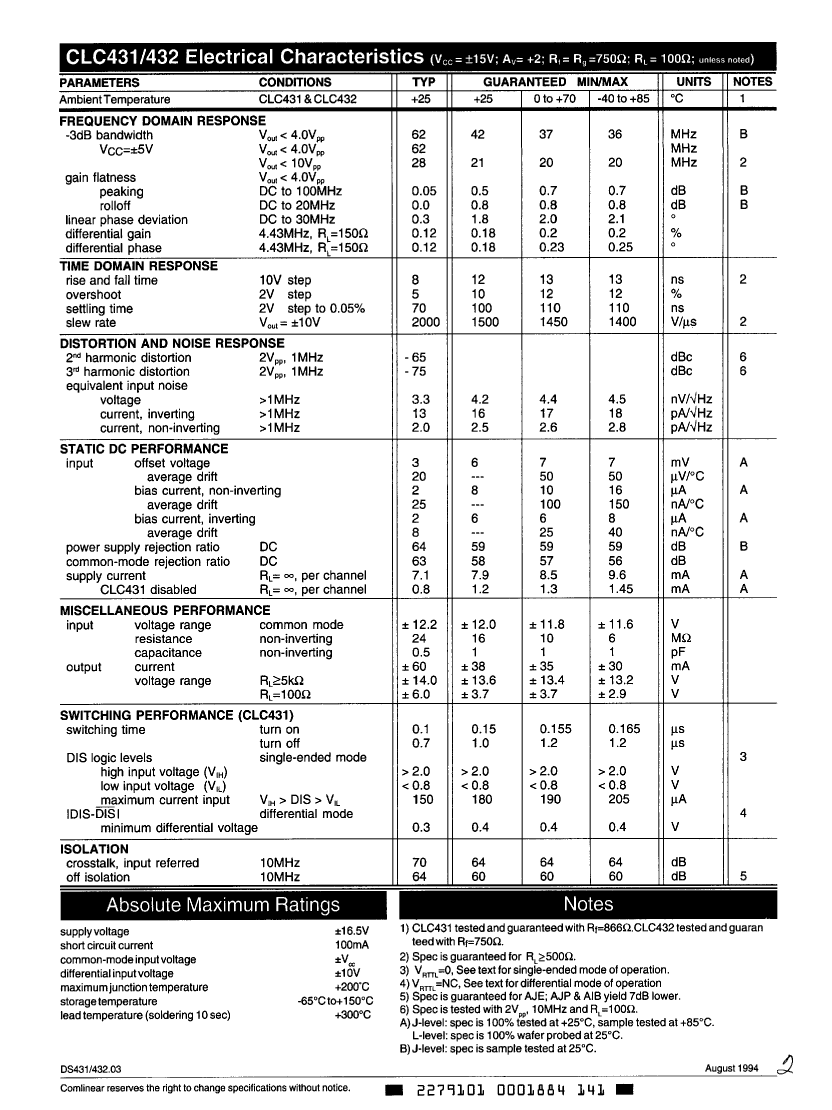

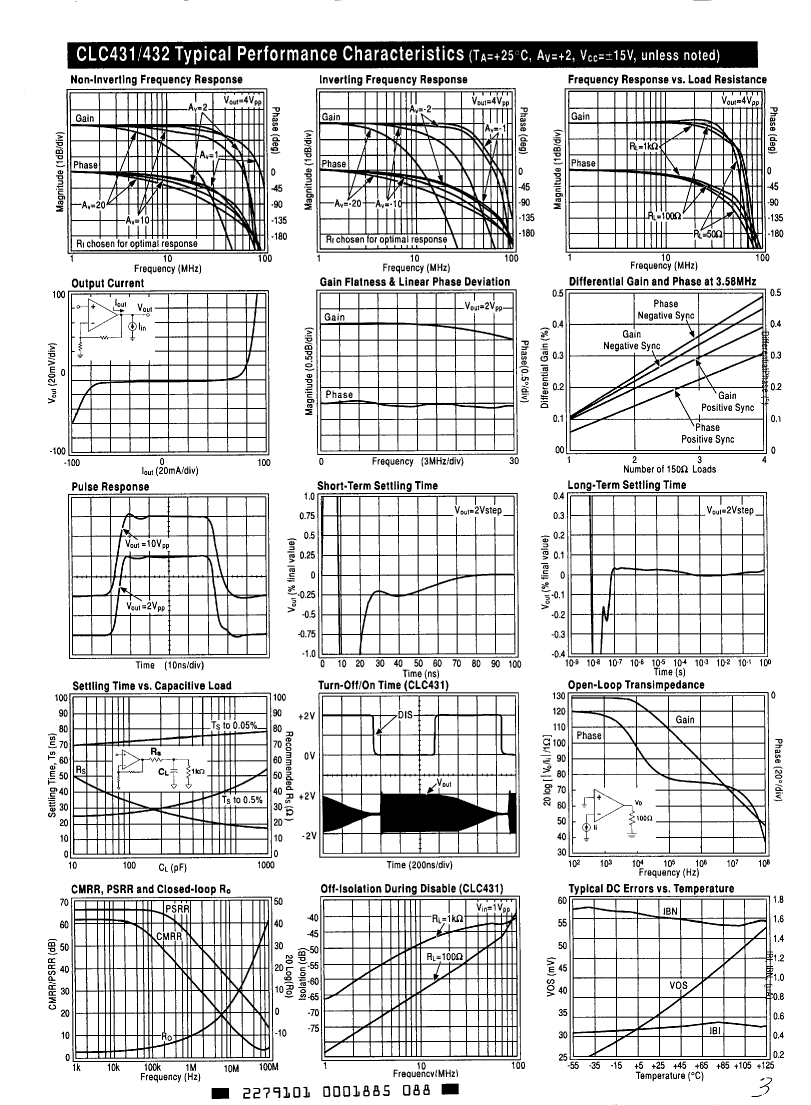

Preview

Download Datasheet

View All

CLC432AMC Related Products

	CLC432AMC	CLC432ALC	CLC431AJP	CLC431A8B	CLC431AJE	CLC431ALC	CLC431AMC	CLC432AJP	CLC432AJE	CLC432A8B
Description	Operational Amplifier, 2 Func, 6000uV Offset-Max,	Operational Amplifier, 2 Func, 7000uV Offset-Max,	Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 2 Func, BIPolar, PDSO14,	Operational Amplifier, 2 Func, 7000uV Offset-Max,	Operational Amplifier, 2 Func, 6000uV Offset-Max,	Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 2 Func, BIPolar, PDSO8,	Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, CDIP8,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
JESD-30 code	X-XUUC-N8	X-XUUC-N8	R-PDIP-T14	R-GDIP-T14	R-PDSO-G14	X-XUUC-N14	X-XUUC-N14	R-PDIP-T8	R-PDSO-G8	R-GDIP-T8
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2	2	2	2	2	2	2
Number of terminals	8	8	14	14	14	14	14	8	8	8
Maximum operating temperature	125 °C	85 °C	85 °C	125 °C	85 °C	85 °C	125 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIE	DIE	DIP	DIP	SOP	DIE	DIE	DIP	SOP	DIP
Package shape	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	IN-LINE	IN-LINE	SMALL OUTLINE	UNCASED CHIP	UNCASED CHIP	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	16.5 V	16.5 V	16.5 V	16.5 V	18 V	16.5 V	16.5 V	16.5 V	18 V	16.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	NO	NO	YES	YES	YES	NO	YES	NO
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	GULL WING	NO LEAD	NO LEAD	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	UPPER	UPPER	DUAL	DUAL	DUAL	UPPER	UPPER	DUAL	DUAL	DUAL
Maker	Comlinear Corporation	-	Comlinear Corporation	Comlinear Corporation	Comlinear Corporation	Comlinear Corporation	Comlinear Corporation	Comlinear Corporation	Comlinear Corporation	Comlinear Corporation
Nominal Common Mode Rejection Ratio	63 dB	63 dB	63 dB	63 dB	-	63 dB	63 dB	63 dB	-	63 dB
Maximum input offset voltage	6000 µV	7000 µV	7000 µV	6000 µV	-	7000 µV	6000 µV	7000 µV	-	6000 µV
Negative supply voltage upper limit	-16.5 V	-16.5 V	-16.5 V	-16.5 V	-	-16.5 V	-16.5 V	-16.5 V	-	-16.5 V
Nominal slew rate	2000 V/us	2000 V/us	2000 V/us	2000 V/us	-	2000 V/us	2000 V/us	2000 V/us	-	2000 V/us
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	-	-	incompatible	incompatible	incompatible
Architecture	-	-	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	-	-	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK
Maximum bias current (IIB) at 25C	-	-	8 µA	8 µA	8 µA	-	-	8 µA	8 µA	8 µA
frequency compensation	-	-	YES	YES	YES	-	-	YES	YES	YES
JESD-609 code	-	-	e0	e0	e0	-	-	e0	e0	e0
low-dissonance	-	-	NO	NO	NO	-	-	NO	NO	NO
Encapsulate equivalent code	-	-	DIP14,.3	DIP14,.3	SOP14(UNSPEC)	-	-	DIP8,.3	SOP8,.25	DIP8,.3
power supply	-	-	+-15 V	+-15 V	+-15 V	-	-	+-15 V	+-15 V	+-15 V
minimum slew rate	-	-	1450 V/us	1450 V/us	1450 V/us	-	-	1450 V/us	1450 V/us	1450 V/us
Maximum slew rate	-	-	15.8 mA	15.8 mA	15.8 mA	-	-	15.8 mA	15.8 mA	15.8 mA
technology	-	-	BIPOLAR	BIPOLAR	BIPOLAR	-	-	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
