CLC440AJP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> CLC440AJP

CLC440AJP: DescriptionOperational Amplifier, 1 Func, 3500uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size700KB，6 Pages; ManufacturerComlinear Corporation

Download Datasheet Parametric Compare View All

CLC440AJP Overview

Operational Amplifier, 1 Func, 3500uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8

CLC440AJP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Comlinear Corporation
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	40 µA
Maximum bias current (IIB) at 25C	30 µA
Nominal Common Mode Rejection Ratio	80 dB
frequency compensation	YES
Maximum input offset voltage	3500 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-bias	NO
low-dissonance	NO
micropower	NO
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power	NO
power supply	+-5 V
Programmable power	NO
Certification status	Not Qualified
minimum slew rate	600 V/us
Nominal slew rate	1500 V/us
Maximum slew rate	8 mA
Supply voltage upper limit	8 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	230000 kHz
broadband	YES

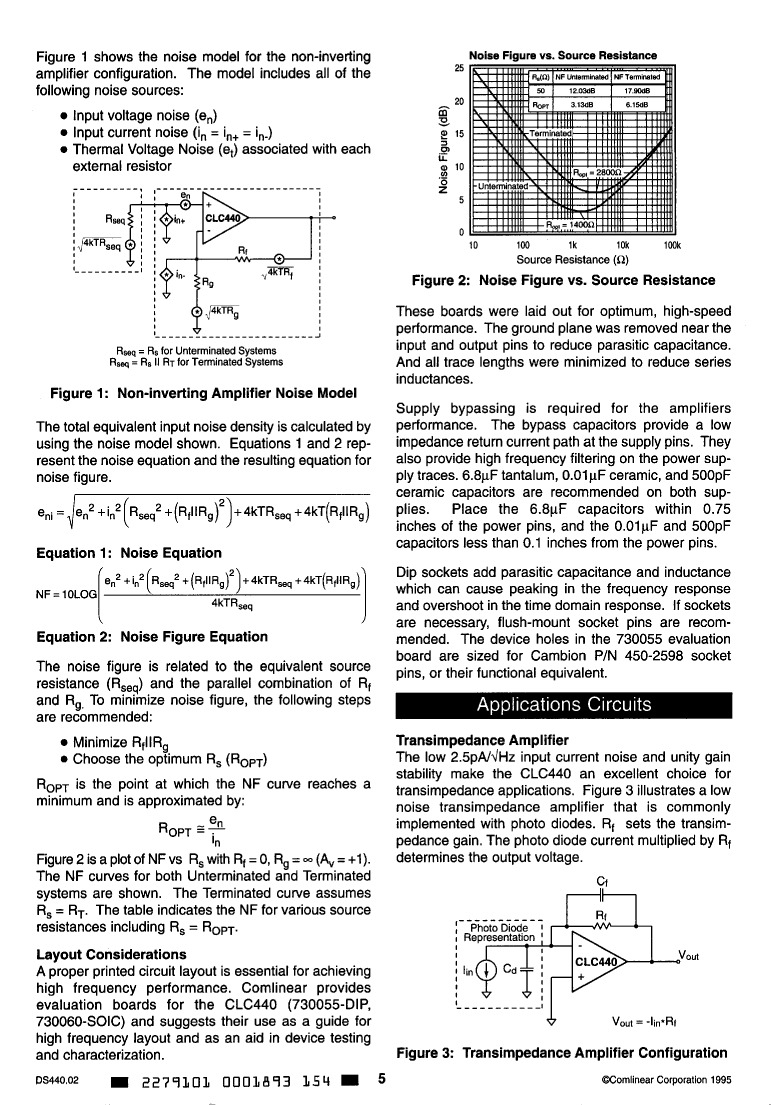

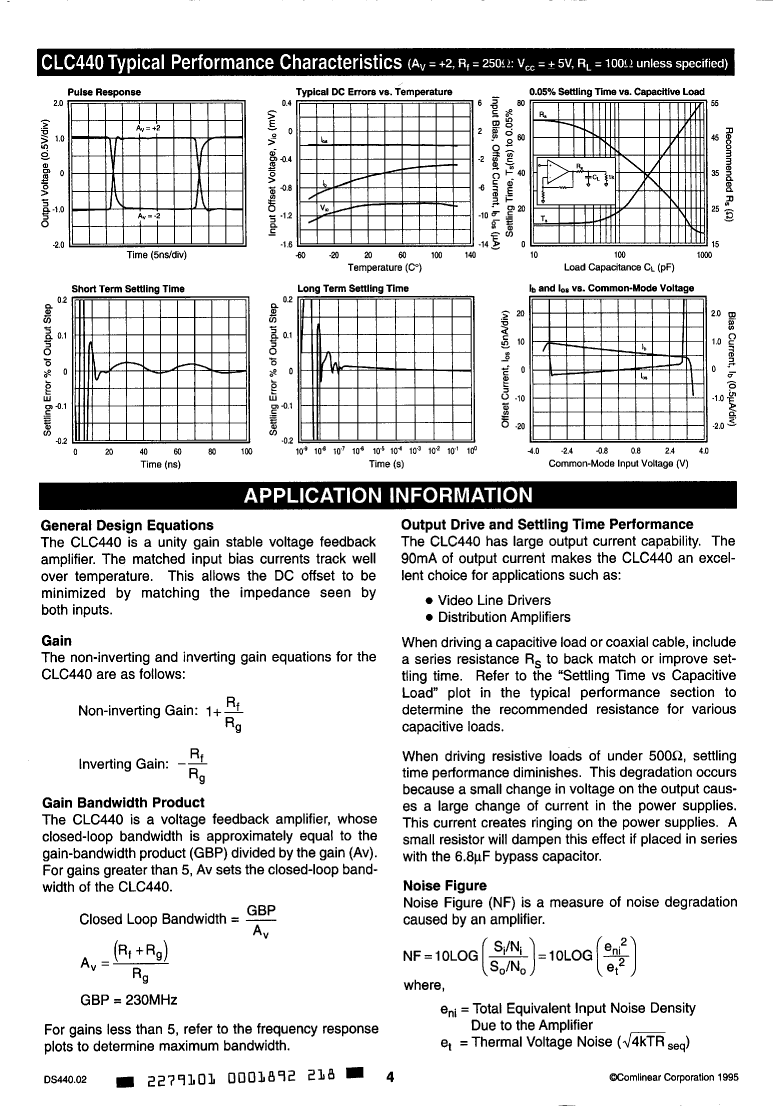

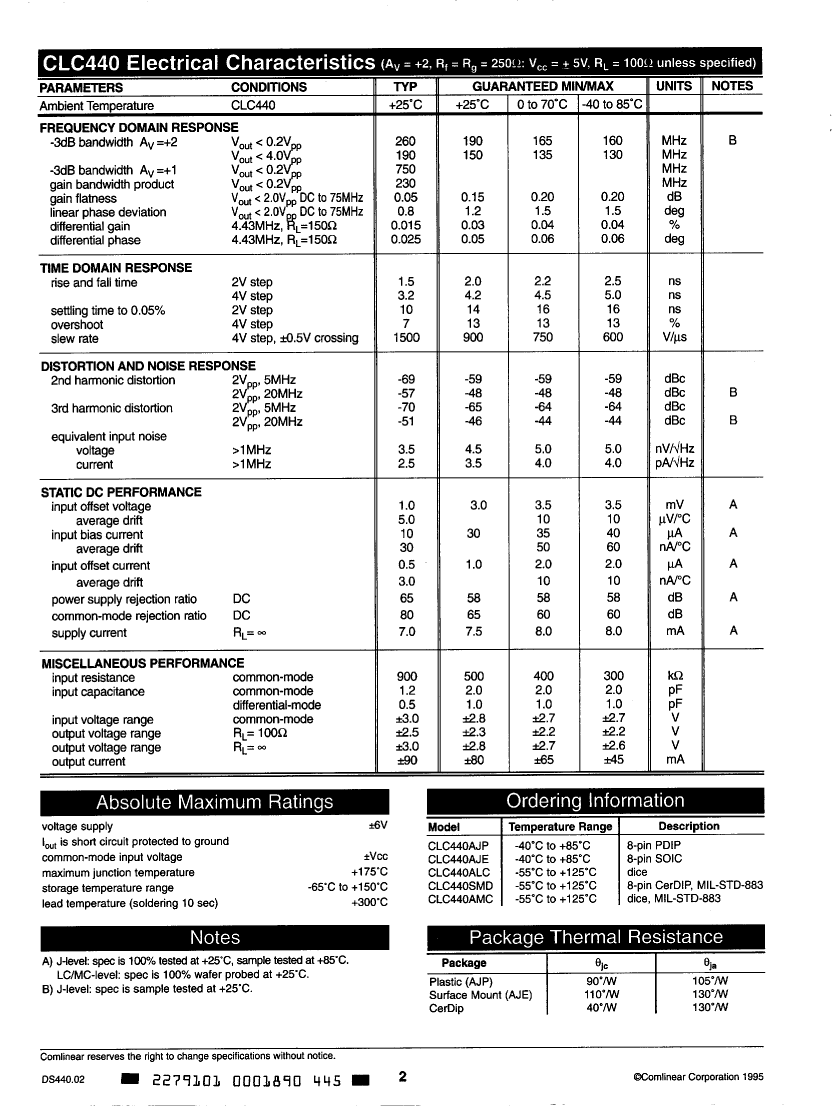

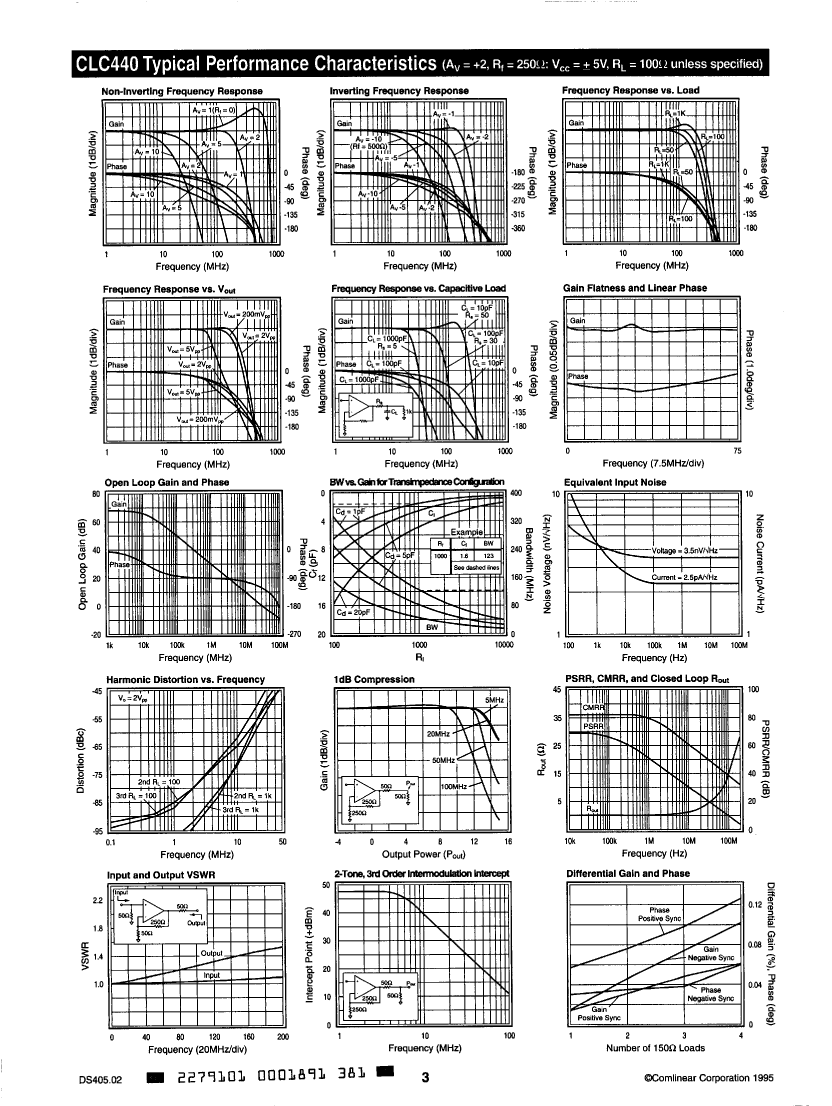

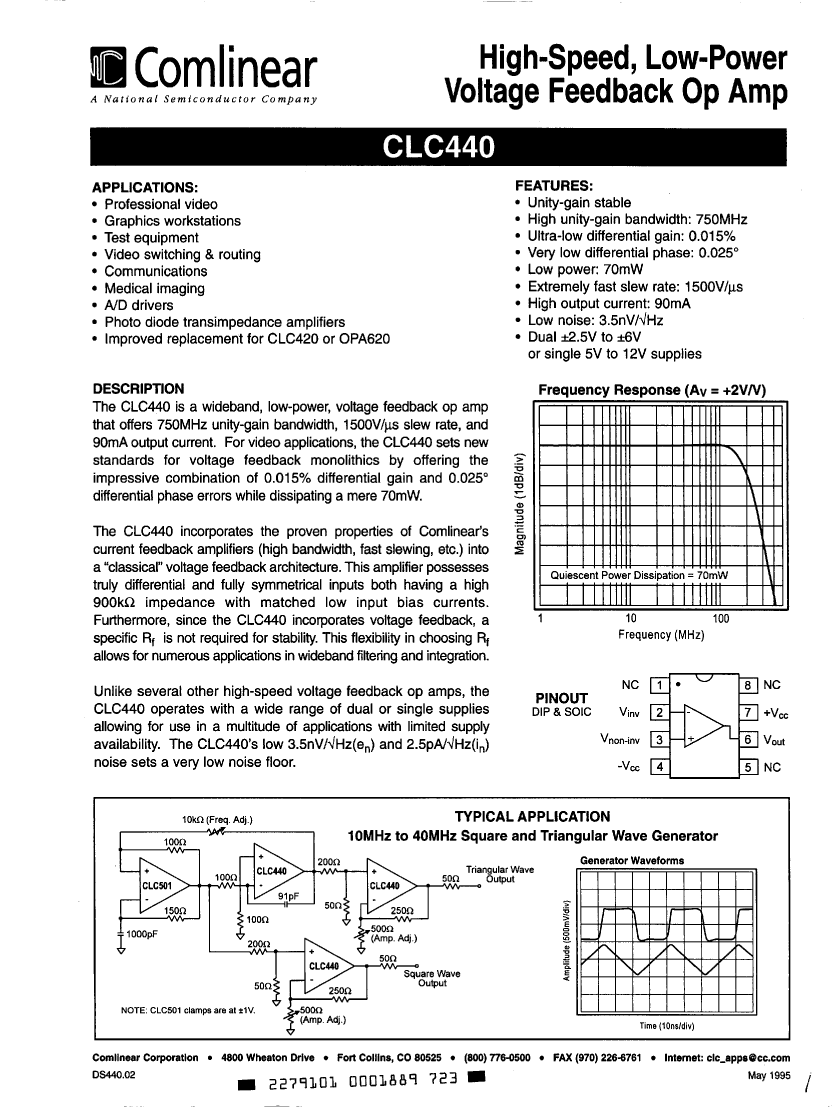

Preview

Download Datasheet

View All

CLC440AJP Related Products

	CLC440AJP	CLC440ALC	CLC440SMD	CLC440AJE	CLC440AMC
Description	Operational Amplifier, 1 Func, 3500uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 1 Func, 3000uV Offset-Max, DIE	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8, CERDIP-8	Operational Amplifier, 1 Func, 3500uV Offset-Max, BIPolar, PDSO8, SOIC-8	Operational Amplifier, 1 Func, 3000uV Offset-Max, DIE
package instruction	DIP, DIP8,.3	DIE	CERDIP-8	SOP, SOP8,.25	DIE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	40 µA	30 µA	30 µA	40 µA	30 µA
Nominal Common Mode Rejection Ratio	80 dB	80 dB	80 dB	80 dB	80 dB
Maximum input offset voltage	3500 µV	3000 µV	3000 µV	3500 µV	3000 µV
JESD-30 code	R-PDIP-T8	X-XUUC-N	R-GDIP-T8	R-PDSO-G8	X-XUUC-N
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1	1
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C	-55 °C
Package body material	PLASTIC/EPOXY	UNSPECIFIED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	UNSPECIFIED
Package shape	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	UNCASED CHIP	IN-LINE	SMALL OUTLINE	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	1500 V/us	1500 V/us	1500 V/us	1500 V/us	1500 V/us
Maximum slew rate	8 mA	7.5 mA	7.5 mA	8 mA	7.5 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES
Temperature level	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	GULL WING	NO LEAD
Terminal location	DUAL	UPPER	DUAL	DUAL	UPPER
Nominal Uniform Gain Bandwidth	230000 kHz	230000 kHz	230000 kHz	230000 kHz	230000 kHz
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-
Maker	Comlinear Corporation	Comlinear Corporation	-	Comlinear Corporation	Comlinear Corporation
Architecture	VOLTAGE-FEEDBACK	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	-
Maximum bias current (IIB) at 25C	30 µA	-	30 µA	30 µA	-
frequency compensation	YES	-	YES	YES	-
JESD-609 code	e0	-	e0	e0	-
low-bias	NO	-	NO	NO	-
low-dissonance	NO	-	NO	NO	-
micropower	NO	-	NO	NO	-
Number of terminals	8	-	8	8	-
encapsulated code	DIP	-	DIP	SOP	-
Encapsulate equivalent code	DIP8,.3	-	DIP8,.3	SOP8,.25	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
power	NO	-	NO	NO	-
power supply	+-5 V	-	+-5 V	+-5 V	-
Programmable power	NO	-	NO	NO	-
minimum slew rate	600 V/us	-	600 V/us	600 V/us	-
Supply voltage upper limit	8 V	-	8 V	8 V	-
technology	BIPOLAR	-	BIPOLAR	BIPOLAR	-
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal pitch	2.54 mm	-	2.54 mm	1.27 mm	-
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
broadband	YES	-	YES	YES	-
