CD4052BMJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> CD4052BMJ

CD4052BMJ: DescriptionDifferential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size457KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

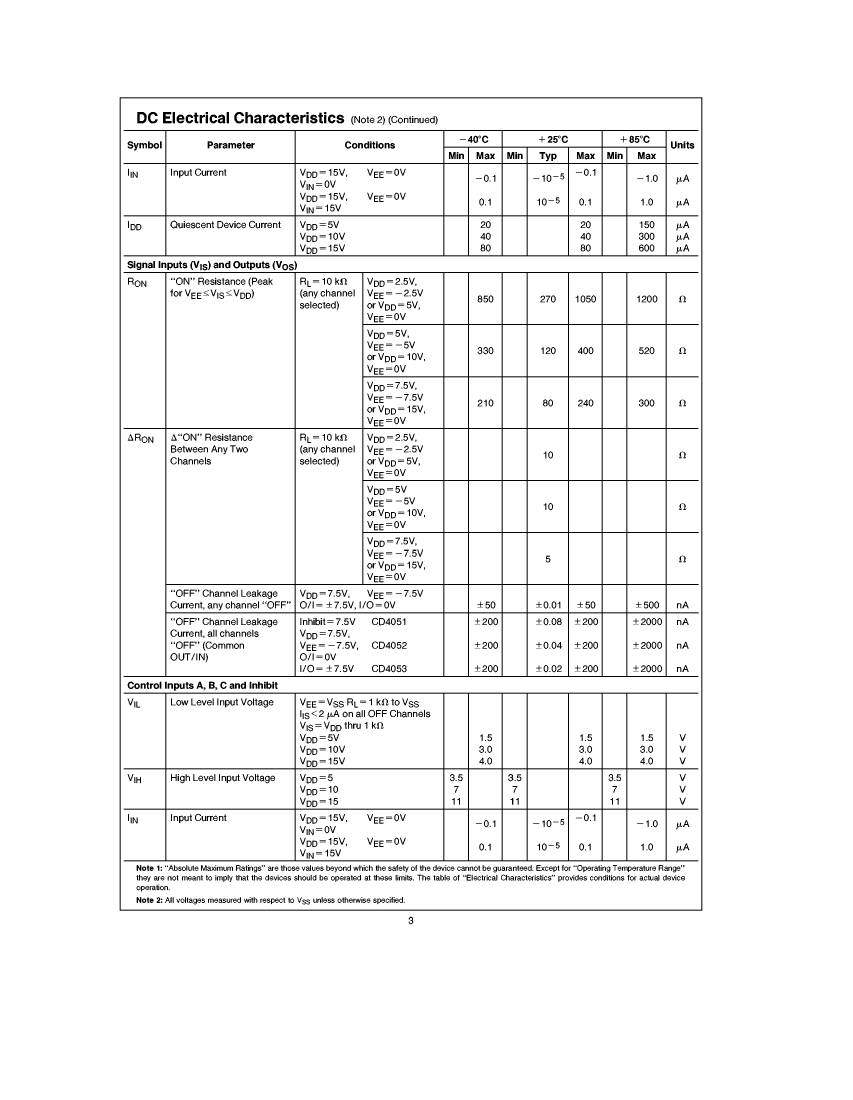

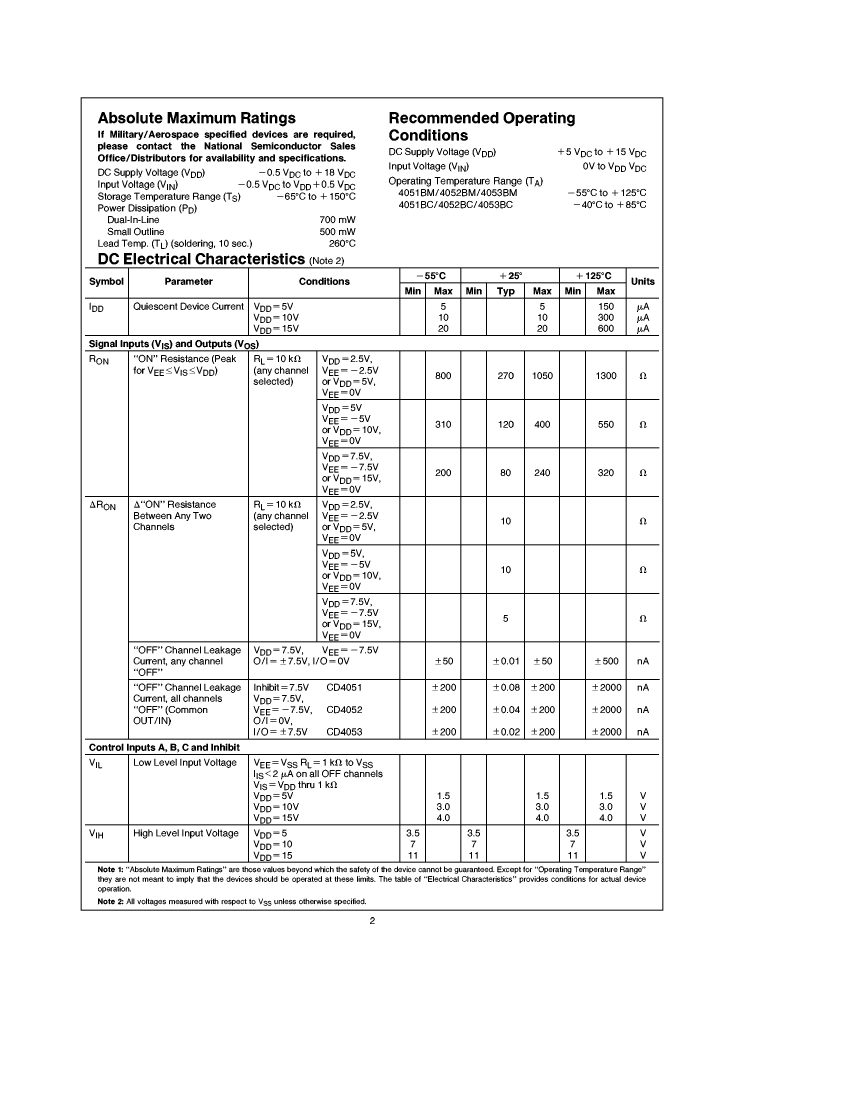

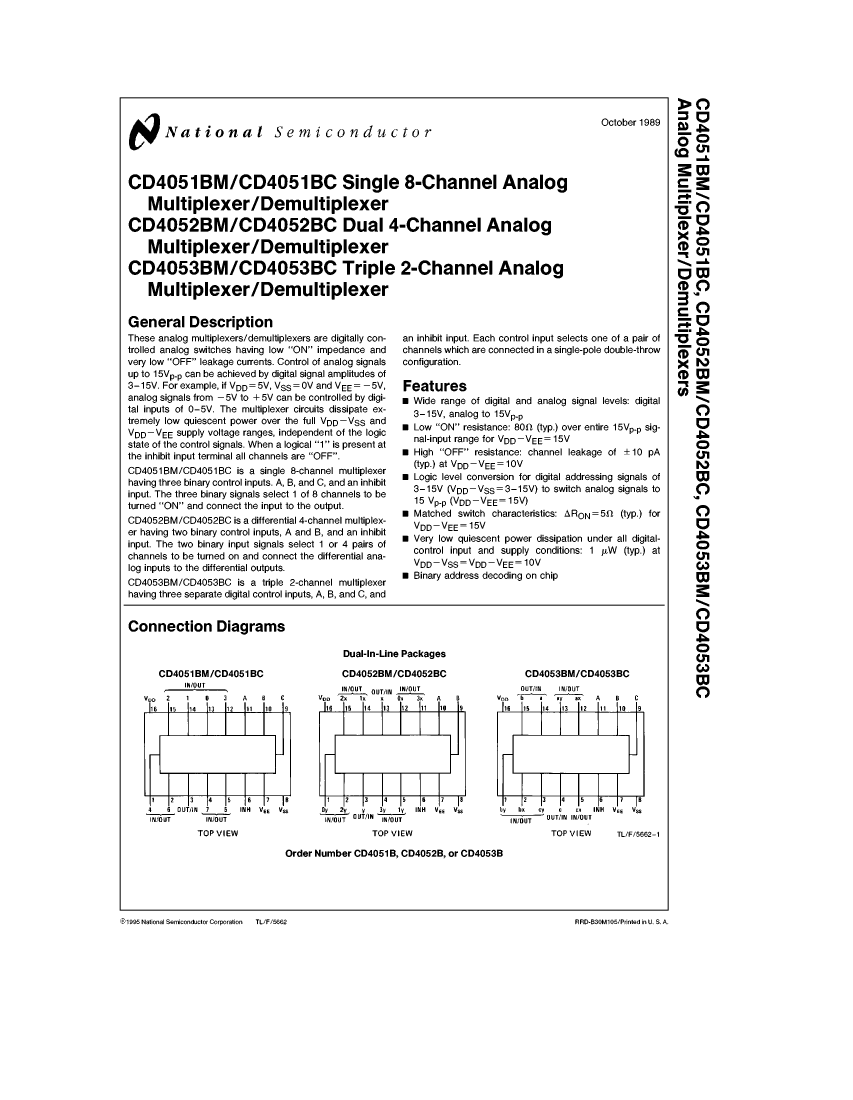

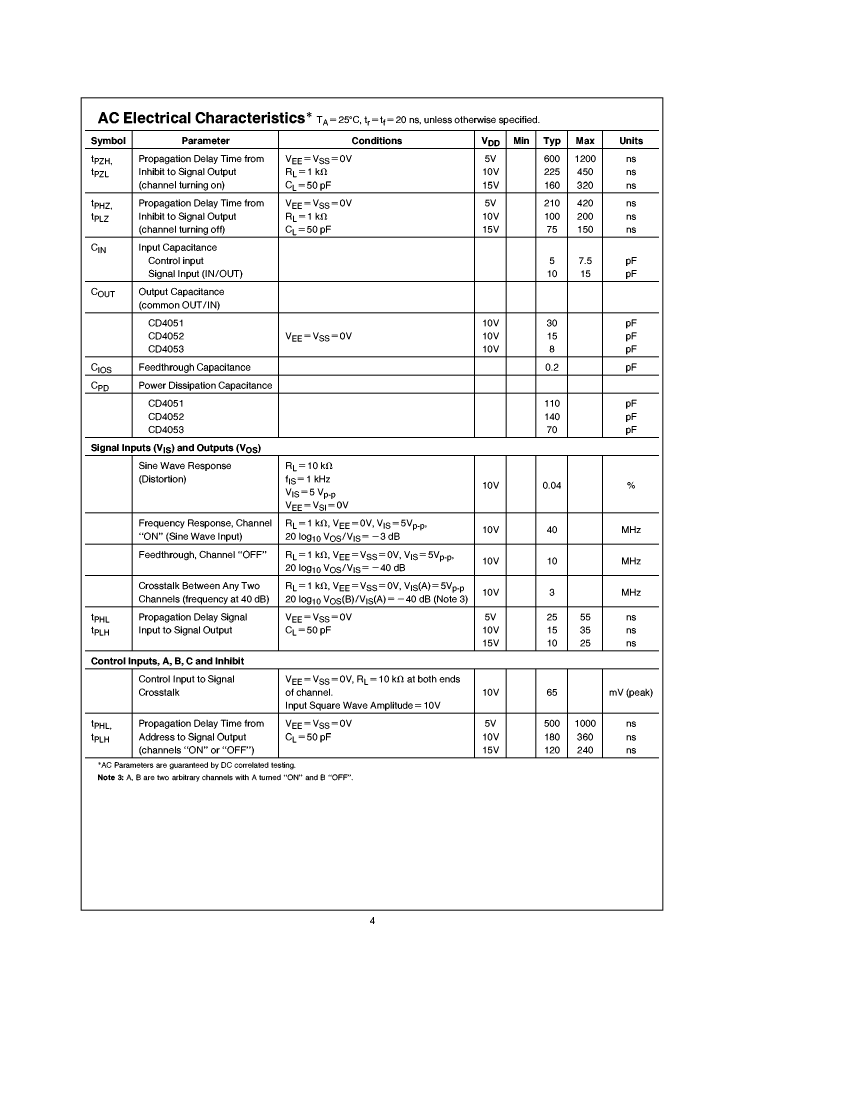

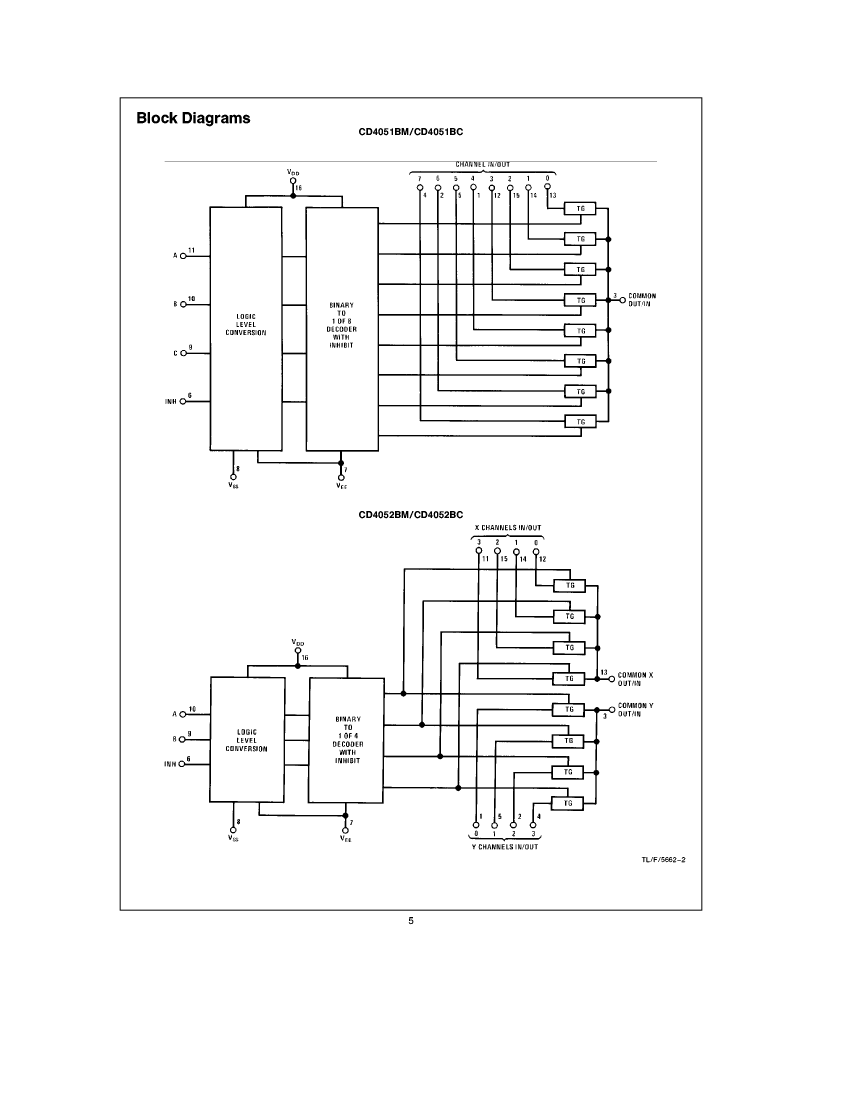

CD4052BMJ Overview

Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,

CD4052BMJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Number of channels	4
Number of functions	1
Number of terminals	16
Maximum on-state resistance (Ron)	1300 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
Maximum connection time	1200 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

CD4052BMJ Related Products

	CD4052BMJ	CD4052BMN	CD4052BCJ	CD4051BMJ	CD4051BMN	CD4053BMN
Description	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16,	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16,	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDIP16,	Single-Ended Multiplexer, 3 Func, 2 Channel, CMOS, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of channels	4	4	4	8	8	2
Number of functions	1	1	1	1	1	3
Number of terminals	16	16	16	16	16	16
Maximum on-state resistance (Ron)	1300 Ω	1300 Ω	1200 Ω	1300 Ω	1300 Ω	1300 Ω
Maximum operating temperature	125 °C	125 °C	85 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Maximum connection time	1200 ns	1200 ns	1200 ns	1200 ns	1200 ns	1200 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild
