This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0681082561
Active
D-Subminiature Shielded I/O PCB Female Receptacle, Right Angle, 25 Circuits,
Standard Nut, Lead Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-68107-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
I/O Connectors
68108
Wire-to-Board
Plug
D-Sub
N/A
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Gender
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire Insulation Diameter
Wire Size AWG
N/A
25
25
200
Receptacle
None
No
Gold
2
Right Angle
0.125 In
3.18 mm
Yes
Yes
0.063 In
1.60 mm
Tray
Yes
0.109 In
2.77 mm
0.109 In
2.77 mm
Yes
Yes
1
No
-55°C to +105°C
Through Hole
No
N/A
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
68108S
Electrical
Current - Maximum per Contact
Grounding to Panel
Shielded
Voltage - Maximum
5A
Yes
No
125V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification

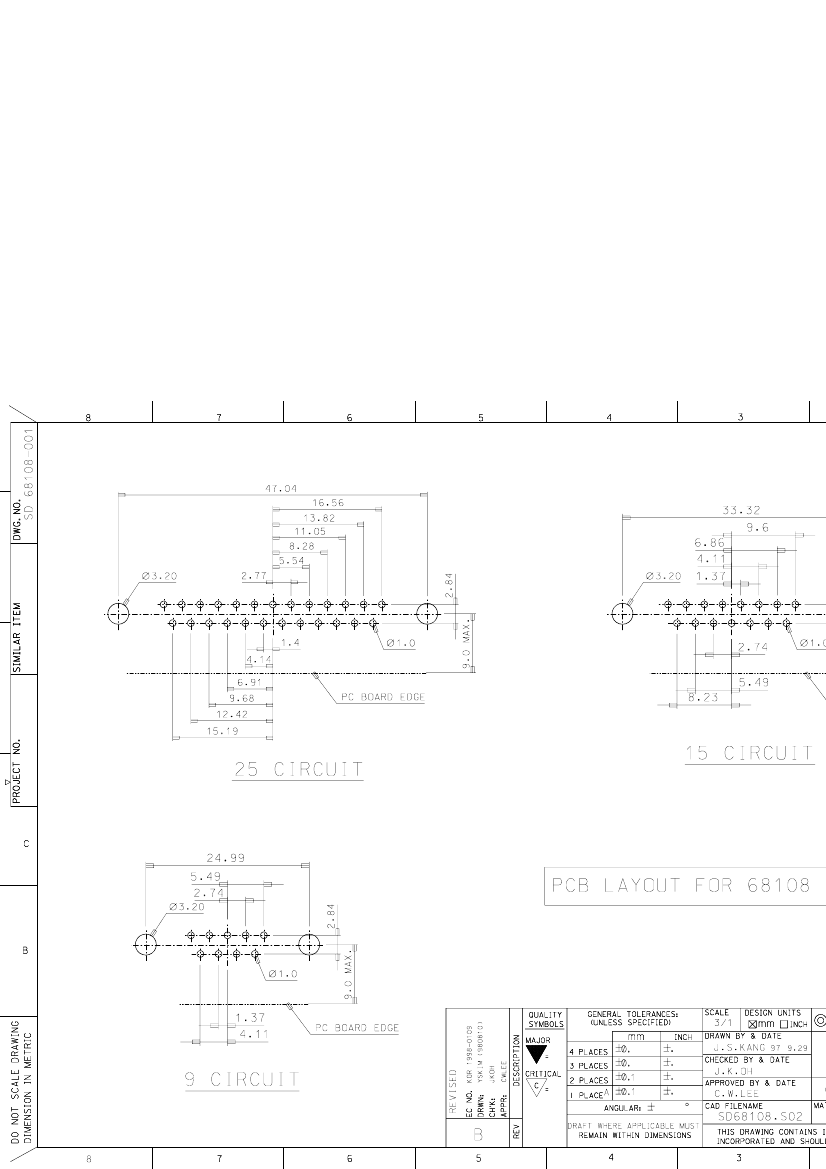

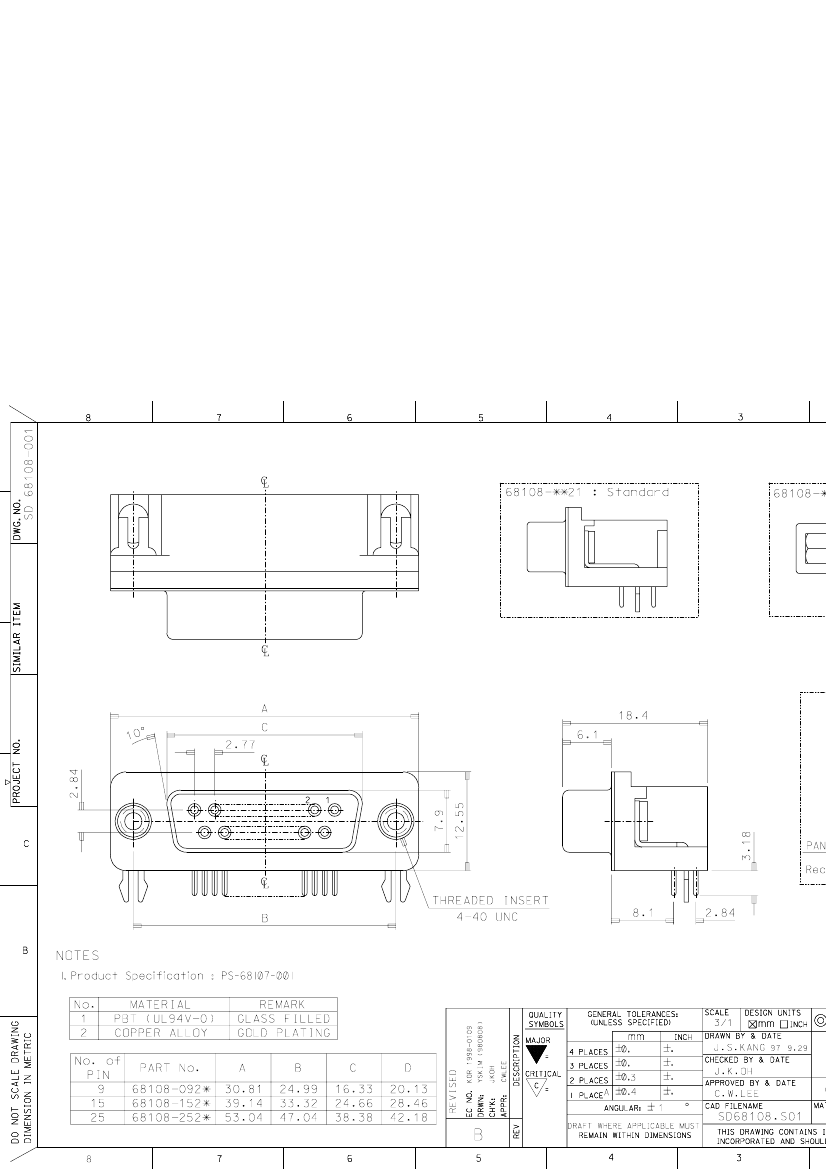

Sales Drawing
PS-68107-001
SD-68108-002
