68107-0961 Overview

D-Subminiature Shielded I/O PCB Female Receptacle, Right Angle, 9 Circuits, Standard Nut, Lead Free

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0681070961

Active

D-Subminiature Shielded I/O PCB Female Receptacle, Right Angle, 9 Circuits,

Standard Nut, Lead Free

Documents:

3D Model

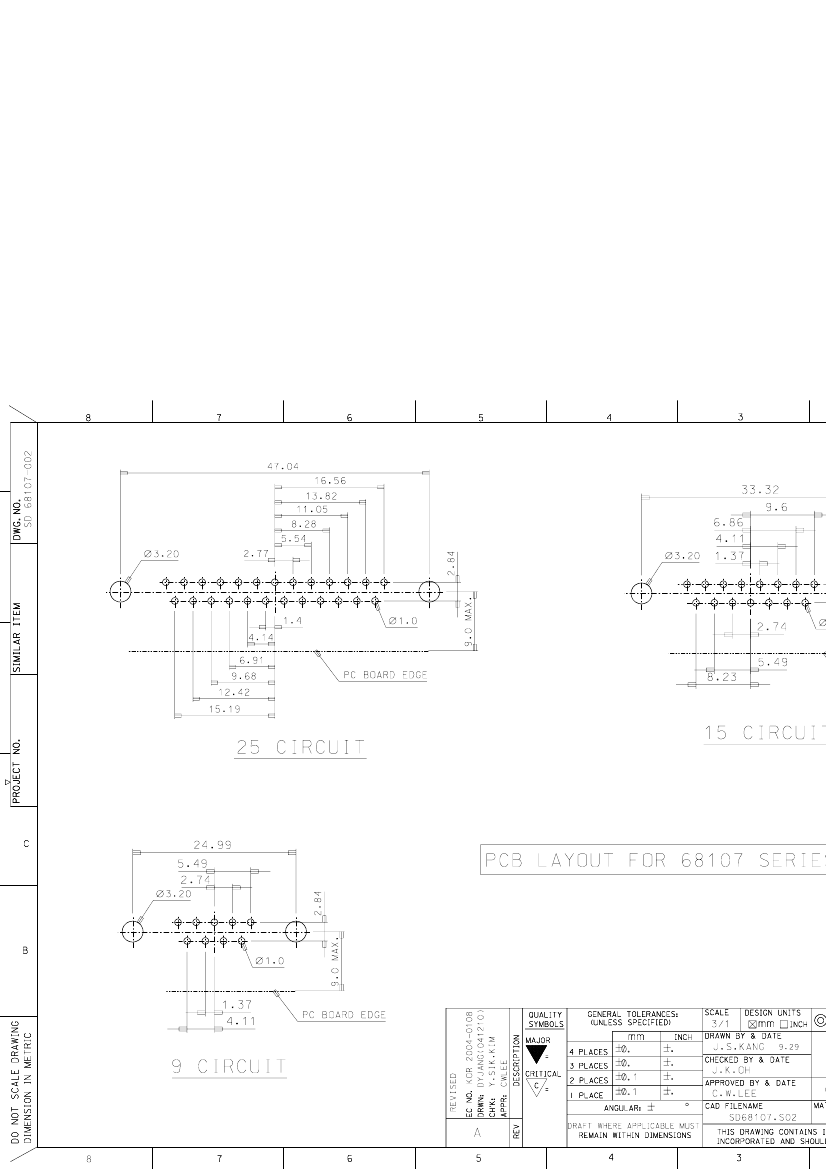

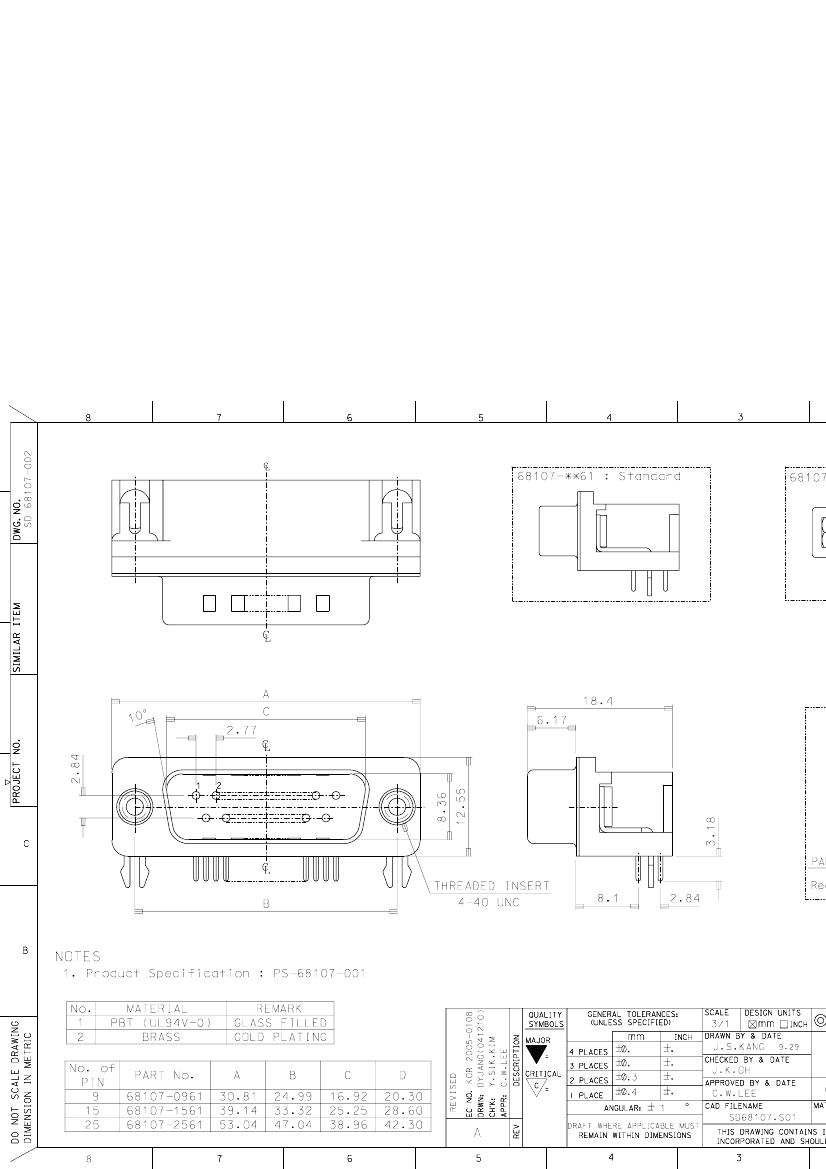

Drawing (PDF)

Product Specification PS-68107-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Name

Type

I/O Connectors

68107

Wire-to-Board

Plug

D-Sub

N/A

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

Gender

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Insulation Diameter

Wire Size AWG

N/A

200

Plug

None

Gold

Right Angle

0.125 In

3.18 mm

Yes

0.031 In

0.80 mm

Tray

Yes

0.054 In

1.37 mm

0.054 In

1.37 mm

Yes

-55°C to +105°C

Through Hole

N/A

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

68107S

Electrical

Current - Maximum per Contact

Grounding to Panel

Shielded

Voltage - Maximum

Yes

125V AC (RMS)/DC
