681310211 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 681310211

681310211: Description2 CONTACT(S), MALE, TWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size147KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

681310211 Overview

2 CONTACT(S), MALE, TWO PART BOARD CONNECTOR

681310211 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACTS: 35685-2401; 35684-2401
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	68131
Mixed contacts	NO
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5 mm
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0681310211

Active

Automotive Filtered Horn Header, Rivet Diameter 78.00mm (3.071"), 2 Circuits

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Product Name

PCB Headers

68131

Wire-to-Board

N/A

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Number of Rows

Orientation

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

None

Yes

Brass

Tin

Vertical

None

Bag

0.197 In

5.00 mm

Yes

Partial

-40°C to +80°C

Screw or Lug

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

68131S

Electrical

Current - Maximum per Contact

Voltage - Maximum

10A

300V

Mates

35825

Automo

Material Info

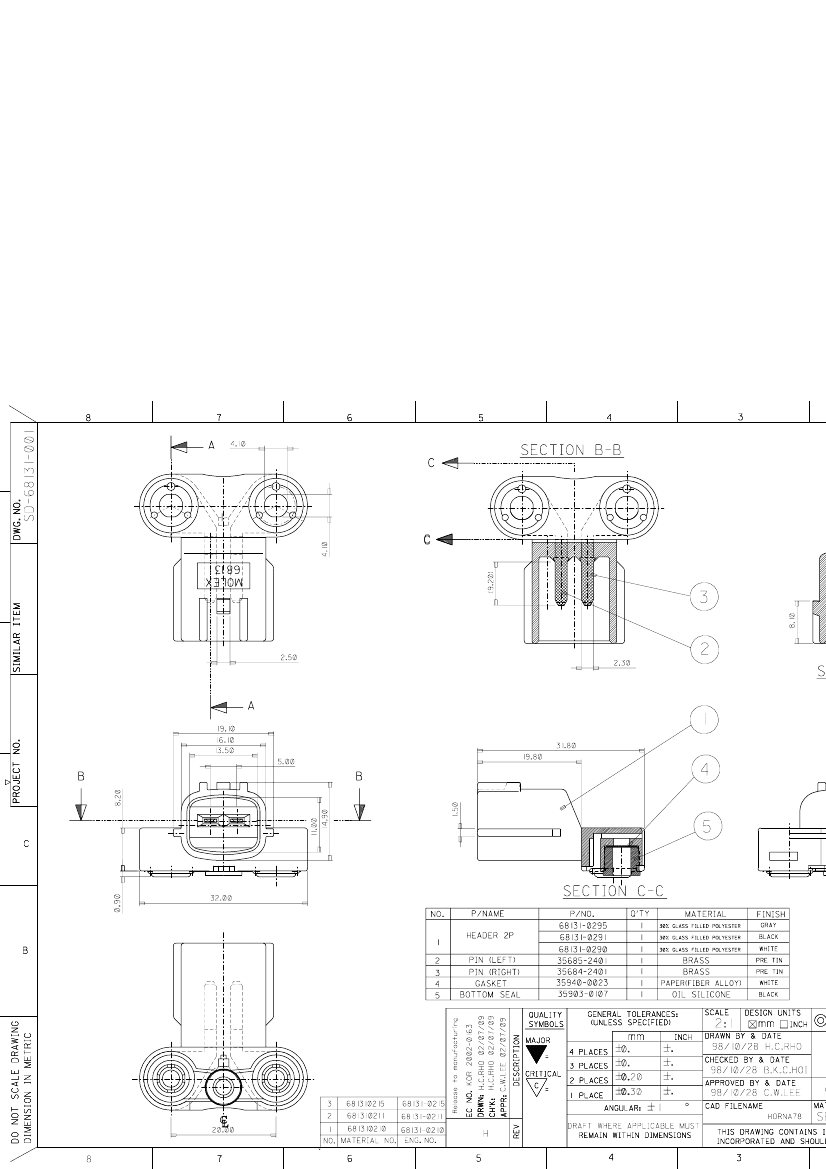

Reference - Drawing Numbers

Sales Drawing

SD-68131-001

This document was generated on 04/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

681310211 Related Products

	681310211	68131-0211
Description	2 CONTACT(S), MALE, TWO PART BOARD CONNECTOR	2 CONTACT(S), MALE, TWO PART BOARD CONNECTOR
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compliant	unknown
Other features	COMPATIBLE CONTACTS: 35685-2401; 35684-2401	COMPATIBLE CONTACTS: 35685-2401; 35684-2401
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	68131	68131
Mixed contacts	NO	NO
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	5 mm	5 mm
Total number of contacts	2	2
Base Number Matches	1	1
