685608202: Description8 Circuits Female-to-8 Circuits Female, Ganged RF Cable Assembly 1.50m (4.92 )Length; File Size79KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

685608202 Overview

8 Circuits Female-to-8 Circuits Female, Ganged RF Cable Assembly 1.50m (4.92 )Length

Preview

Download Datasheet

View All

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0685608202

Active

ganged_rf

8 Circuits Female-to-8 Circuits Female, Ganged RF Cable Assembly 1.50m (4.92' )

Length

Documents:

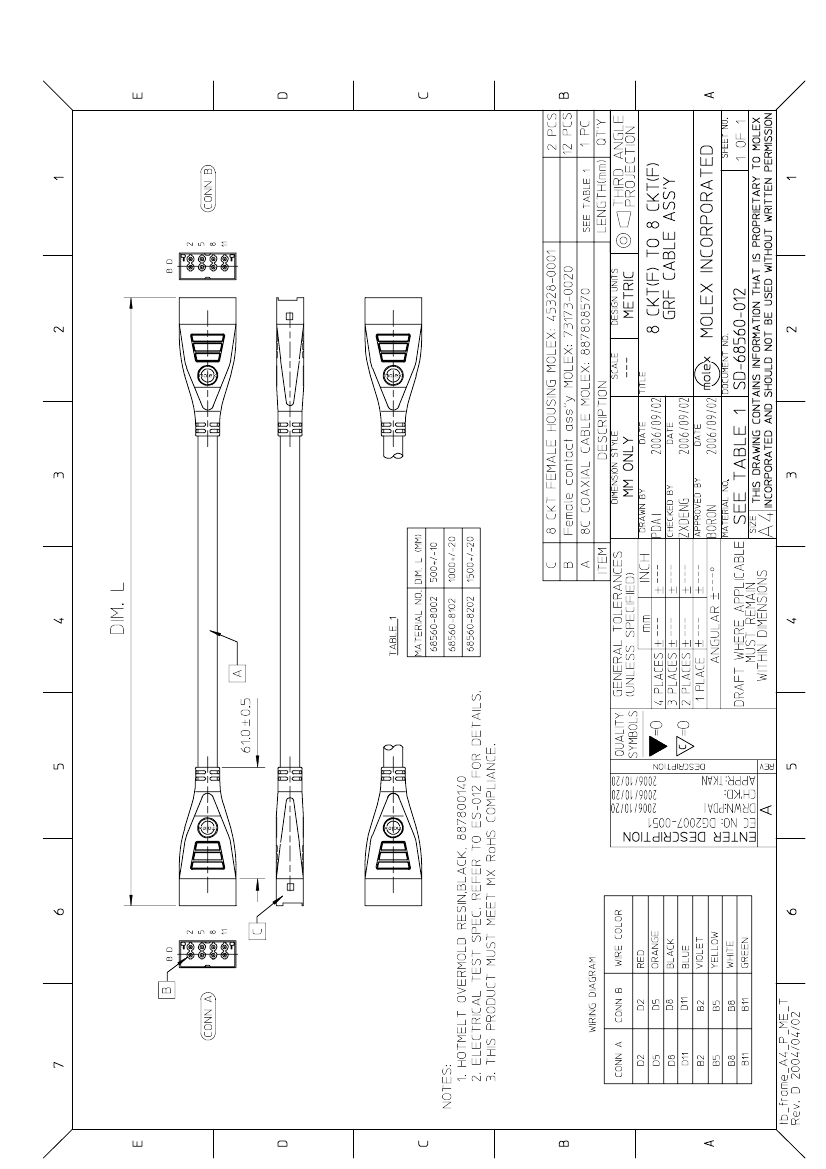

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Connector to Connector

Overview

Product Name

Cable Assemblies

68560

Ganged RF-to-Ganged RF

ganged_rf

Ganged RF

Physical

Cable Length

Circuits (Loaded)

Gender

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Single Ended

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

1.50m (4.92' )

8/8

Female-Female

Yes

Gold

Bag

0.75

N/A

Coaxial

EU RoHS

RoHS Co

Exemptio

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

68560S

Mates

74642

Electrical

Current - Maximum per Contact

Impedance

Shielded

Voltage - Maximum

50 ohms

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-68560-012

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
