QTLP650C-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> QTLP650C-2

QTLP650C-2: DescriptionSingle Color LED, High Efficiency Red, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size2MB，6 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric Compare View All

QTLP650C-2 Overview

Single Color LED, High Efficiency Red, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2

QTLP650C-2 Parametric

Parameter Name	Attribute value
Maker	EVERLIGHT
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant
color	HIGH EFFICIENCY RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	10.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm

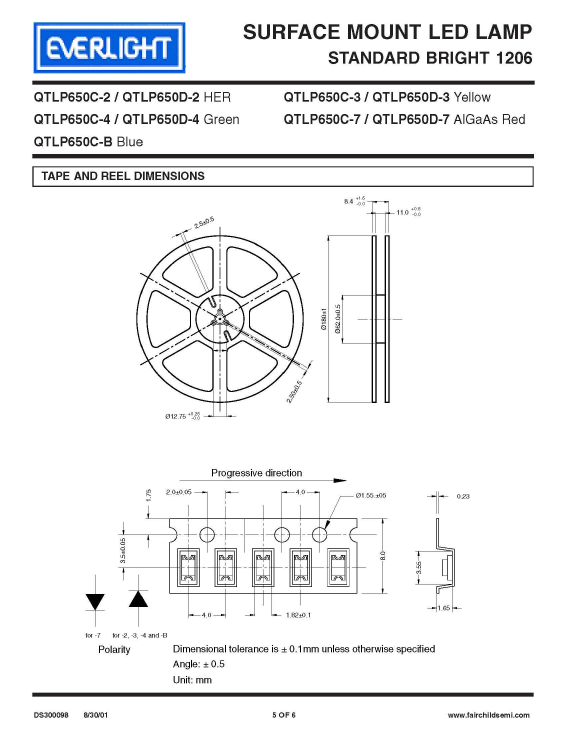

method of packing	TAPE AND REEL 7\"
peak wavelength	635 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	140 deg

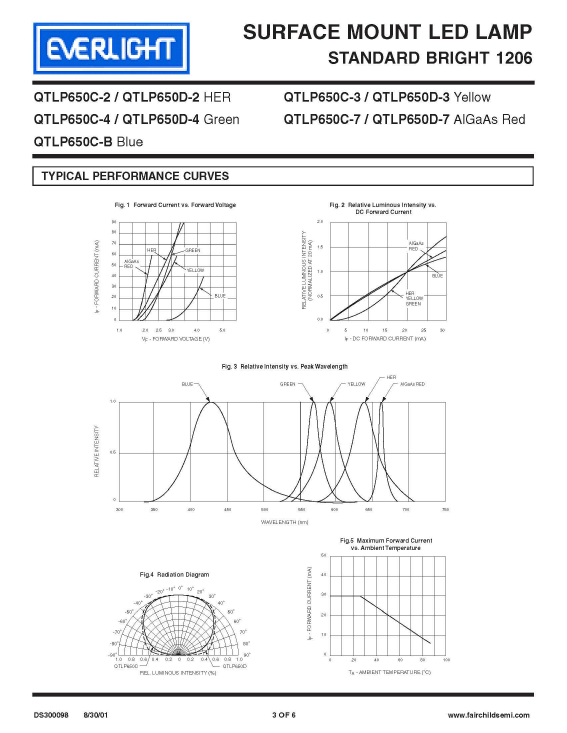

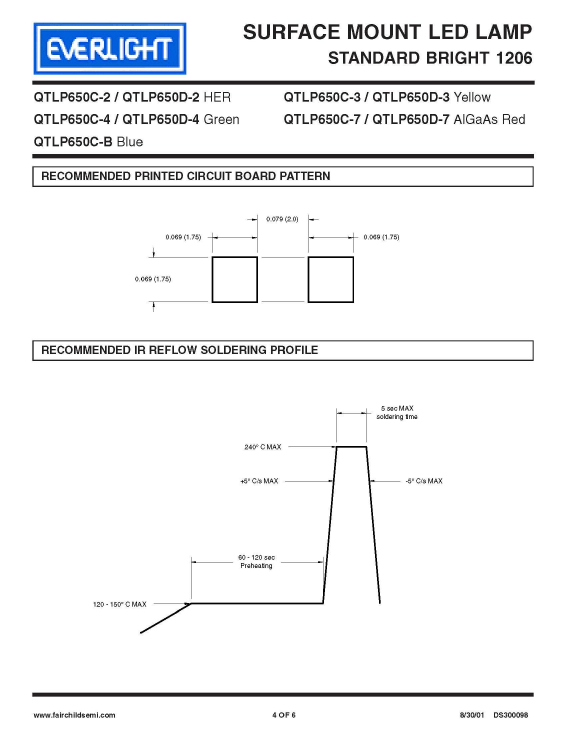

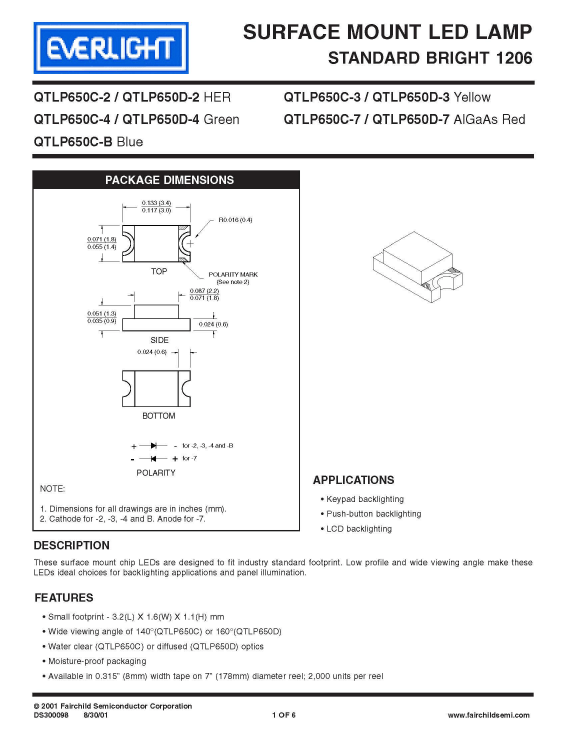

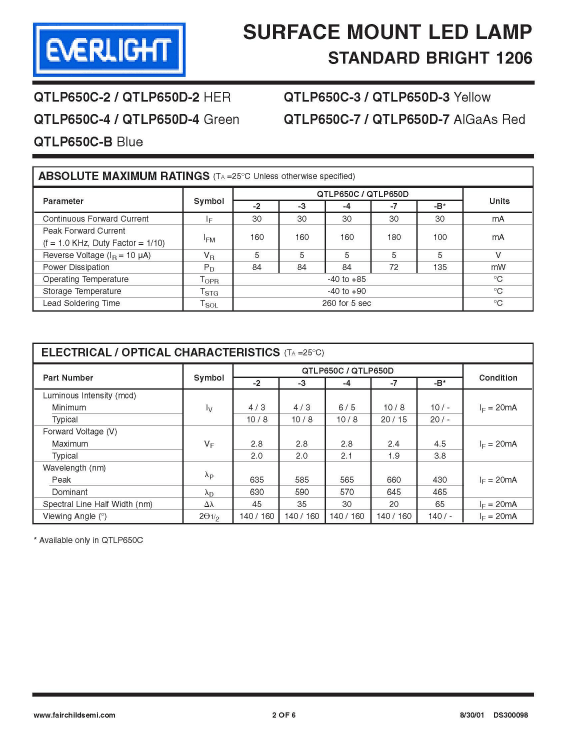

Preview

Download Datasheet

View All

QTLP650C-2 Related Products

	QTLP650C-2	QTLP650D-7	QTLP650C-3	QTLP650C-B	QTLP650D-3	QTLP650C-7	QTLP650C-4	QTLP650D-4	QTLP650D-2
Description	Single Color LED, High Efficiency Red, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Red, Diffused, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Blue, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, Diffused, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Red, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Green, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Green, Diffused, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, High Efficiency Red, Diffused, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	HIGH EFFICIENCY RED	RED	YELLOW	BLUE	YELLOW	RED	GREEN	GREEN	HIGH EFFICIENCY RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	DIFFUSED	WATER CLEAR	WATER CLEAR	DIFFUSED	WATER CLEAR	WATER CLEAR	DIFFUSED	DIFFUSED
Nominal luminous intensity	10.0 mcd	15.0 mcd	10.0 mcd	20.0 mcd	8.0 mcd	20.0 mcd	10.0 mcd	8.0 mcd	8.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"
peak wavelength	635 nm	660 nm	585 nm	430 nm	585 nm	660 nm	565 nm	565 nm	635 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	3.75 mm	3.75 mm	3.75 mm	3.75 mm	3.75 mm	3.75 mm	3.75 mm	3.75 mm	3.75 mm
perspective	140 deg	160 deg	140 deg	140 deg	160 deg	140 deg	140 deg	160 deg	160 deg
Maker	EVERLIGHT	EVERLIGHT	-	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT
