705-51-0058

Description
2.54mm (.100") Pitch SL Header, Single Row, Right Angle, .120" Pocket, Shrouded, with Beveled Plastic Peg, 24
File Size297KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

705-51-0058 Overview

2.54mm (.100") Pitch SL Header, Single Row, Right Angle, .120" Pocket, Shrouded, with Beveled Plastic Peg, 24

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0705510058
Active
cgrid__sl_products
2.54mm (.100") Pitch SL™ Header, Single Row, Right Angle, .120" Pocket, Shrouded,
with Beveled Plastic Peg, 24 Circuits, 0.38µm (15µ") Gold (Au) Selective Plating, Tin
(Sn) PC Tail Plating
Documents:
3D Model

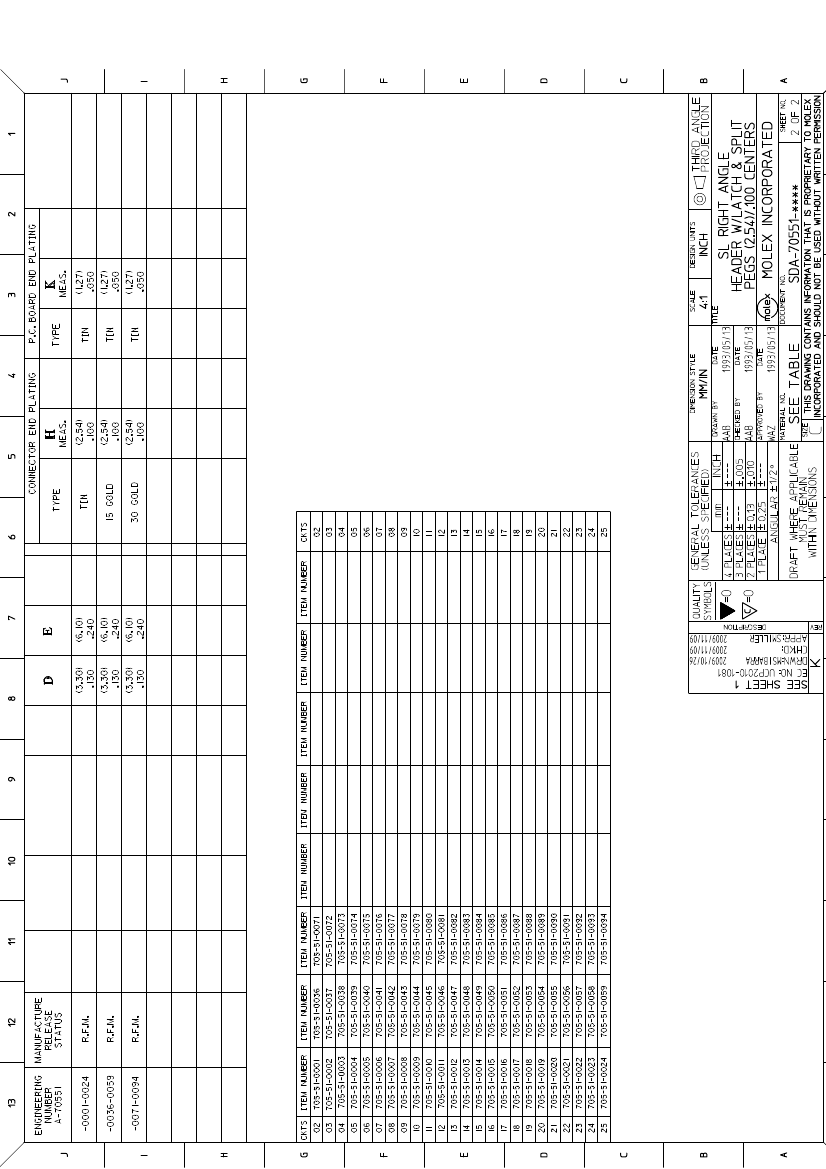

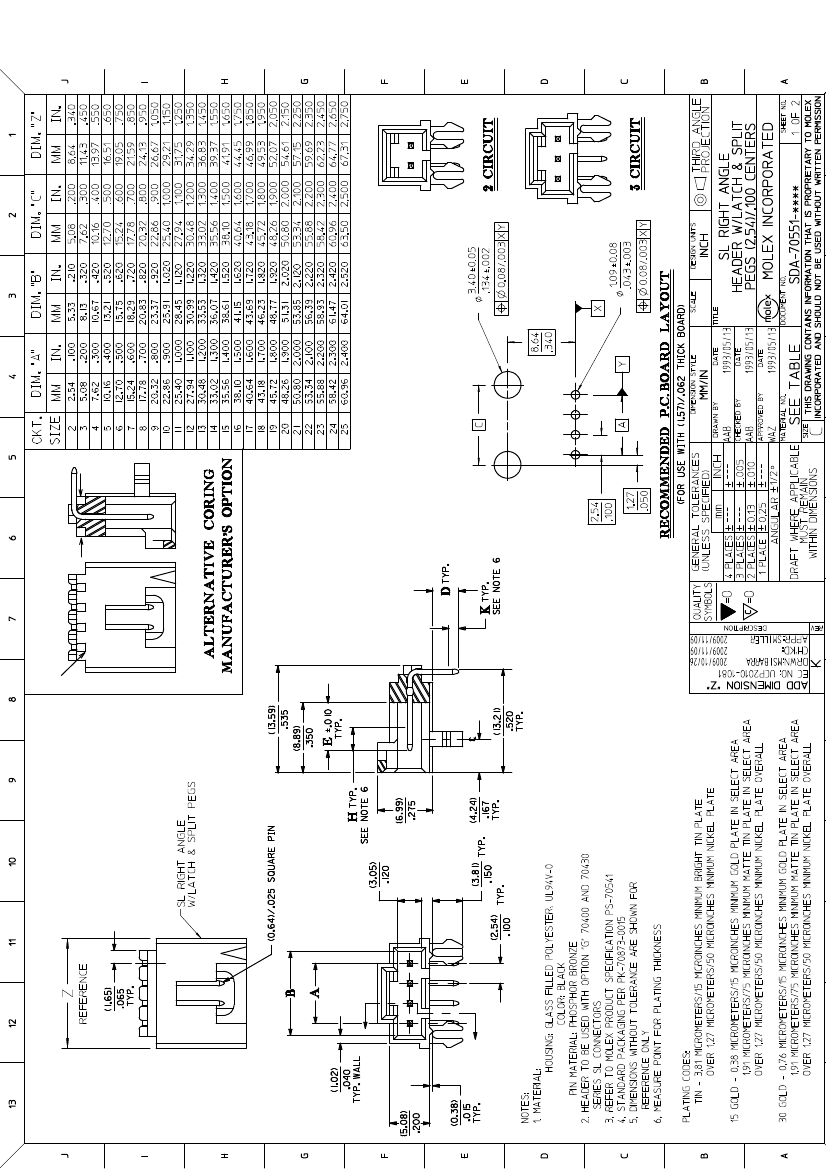

Drawing (PDF)
Packaging Specification (PDF)
Product Specification PS-70400 (PDF)
Product Specification PS-70541 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
70551
Wire-to-Board
cgrid__sl_products
SL™
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
No
24
24
Black
50
No
94V-0
No
No
None
Yes
Brass, Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
1
Right Angle
0.130 In
3.30 mm
Yes
Yes
0.062 In
1.60 mm
Tube
0.100 In
2.54 mm
15
0.375
75
1.875
Yes
Fully
Email pro
For a mu
Complian
Please vi
non-prod
Search
70551S
Mates
SL™ C
