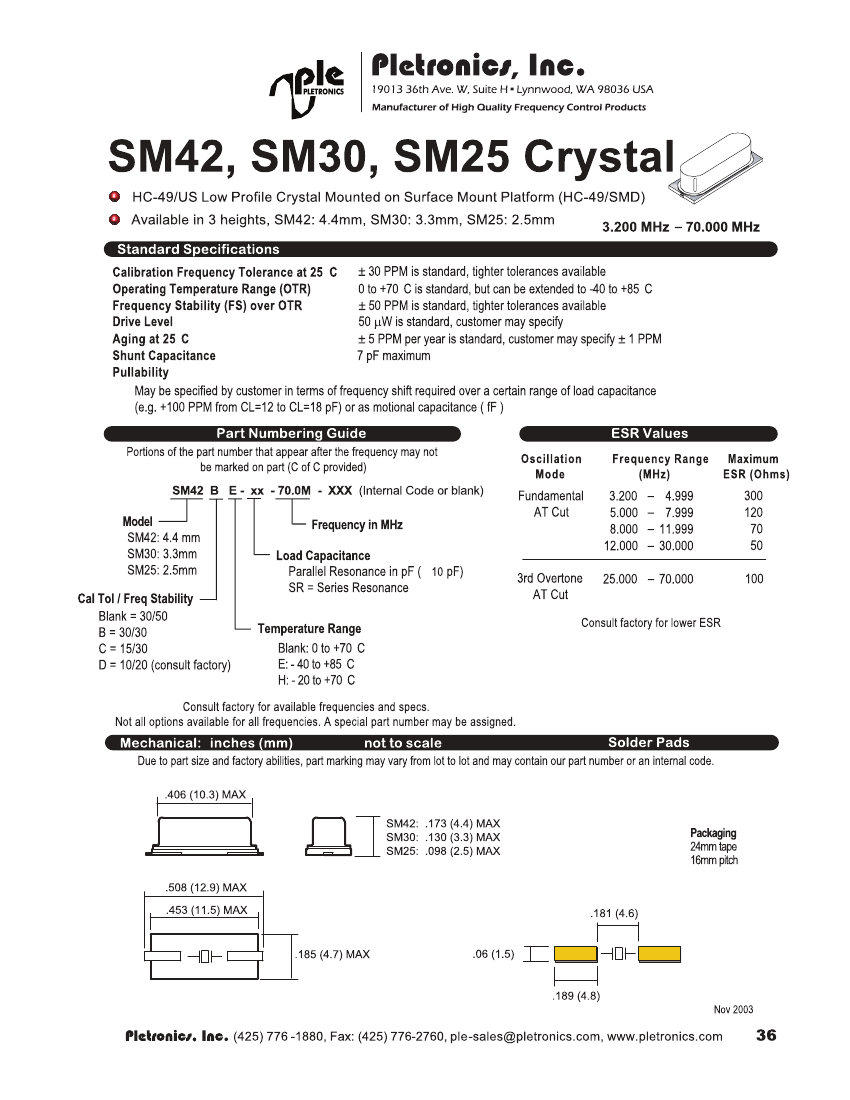

SM30-10-FREQ2 Overview

QUARTZ CRYSTAL RESONATOR, 5 MHz - 7.999 MHz, SURFACE MOUNT PACKAGE-2

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pletronics
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	10 pF
Manufacturer's serial number	SM30
Installation features	SURFACE MOUNT
Maximum operating frequency	7.999 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L11.5XB4.7XH3.3 (mm)/L0.453XB0.185XH0.13 (inch)
Series resistance	120 Ω
surface mount	YES
Terminal surface	NOT SPECIFIED

°

≥

°
