BN73TL: DescriptionCONNECTOR, FEMALE-MALE-FEMALE, RF TEE ADAPTER, JACK-PLUG-JACK; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

BN73TL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BN73TL	-	-	View	Buy Now

BN73TL Overview

CONNECTOR, FEMALE-MALE-FEMALE, RF TEE ADAPTER, JACK-PLUG-JACK

BN73TL Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
ECCN code	EAR99
Adapter type	BNC-BNC-BNC
Body/casing type	JACK-PLUG-JACK
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-MALE-FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	TRB
Options	GENERAL PURPOSE
Panel mounting	NO

Preview

Download Datasheet

View All

12

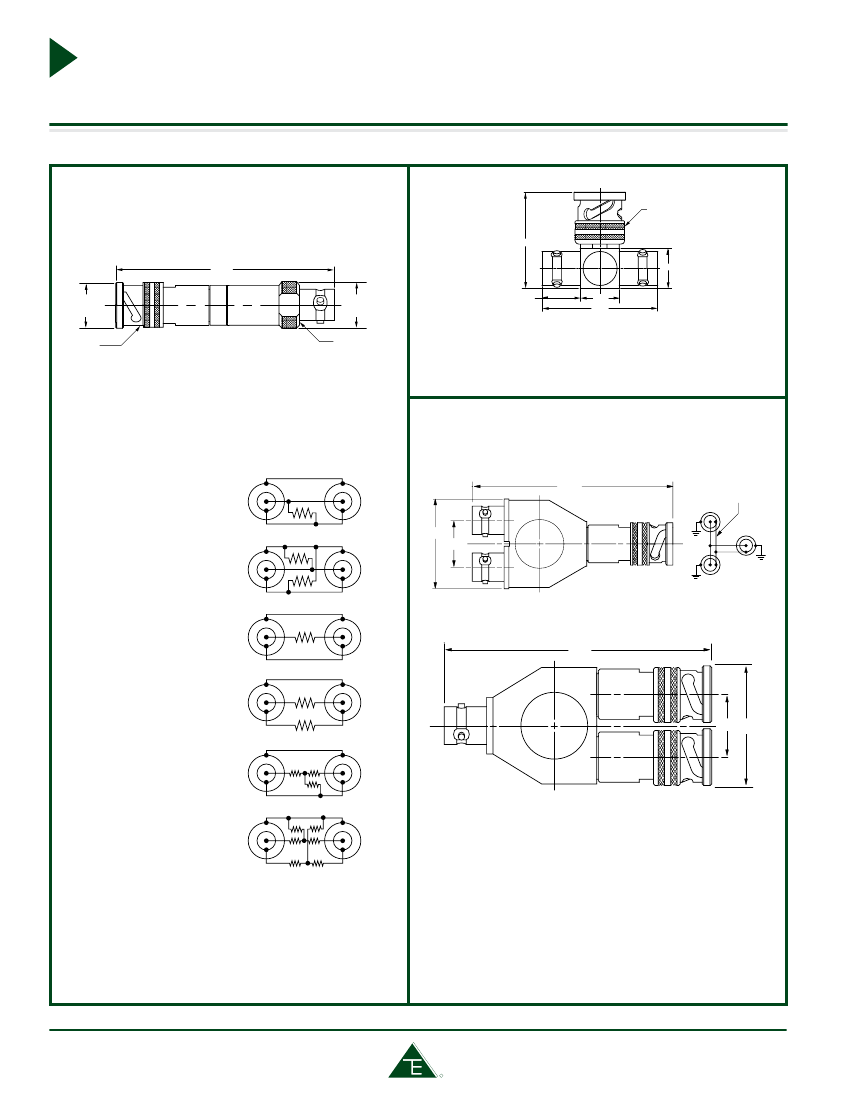

Trb series pad / paralleling / t adapter

BN73 Shown

TRB Series Pad

TRB 3-lug plug and jack

1.075

;;;;;;;;

.593 DIA

OVER KNURL

2.683

.440

.593

DIA

MAX

;;;

.593

DIA

MAX

.425 TYP

.436

1.286

PL75

CJ70

TRB "T" Adapter

TRT "T" Adapter

3-lug

2-lug

4-lug

Threaded

BN73

BN73TL

BN73FL

BN373

Fixed Paralleling Jacks

Part Number

Circuitry Schematic

TN2A Shown

2.673

INTERMEDIATE

TNG2-R

R

1.166

.625

R

1

TNG2A-R1-R2

R

2

R

TNG3-R

TN2 Shown

2.673

TNG3A-R1-R2

R

1

R

2

.625 1.166

TNG4-R1-R2-R3

R

1

R

2

R

3

R

1

R

3

R

2

R

4

R

6

Fixed Paralleling Jack

Two Plugs, One Jack

3-lug

2-lug

4-lug

Threaded

3-lug

2-lug

4-lug

Threaded

TNG4A-R1-R2-R3-R4-R5-R6

R

5

TN2

TN2TL

TN2FL

TN2T

TN2A

TN2TLA

TN2FLA

TN2TA

Two Jacks, One Plug

R-Resistance

(1/2 W 1%)

Substitute resistive value for each "R

N

" unless all values are identical.

* Other options available including Random Paralleling.

Contact the factory for more information.

For Adapters, see pages 47-50. For Terminations, see page 45-46. For Impedance Matching Adapters, see page 47.

Trompeter Products Catalog - T21 Military/Aerospace

ISO 9001

Registered

R

(800) 982-2629

Fax: (818) 706-1040

www.trompeter.com

BN73TL Related Products

	BN73TL	BN73	BN73FL	BN373
Description	CONNECTOR, FEMALE-MALE-FEMALE, RF TEE ADAPTER, JACK-PLUG-JACK	CONNECTOR, FEMALE-MALE-FEMALE, RF TEE ADAPTER, JACK-PLUG-JACK	CONNECTOR, FEMALE-MALE-FEMALE, RF TEE ADAPTER, JACK-PLUG-JACK	CONNECTOR, FEMALE-MALE-FEMALE, RF TEE ADAPTER, JACK-PLUG-JACK
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Adapter type	BNC-BNC-BNC	BNC-BNC-BNC	BNC-BNC-BNC	BNC-BNC-BNC
Body/casing type	JACK-PLUG-JACK	JACK-PLUG-JACK	JACK-PLUG-JACK	JACK-PLUG-JACK
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-MALE-FEMALE	FEMALE-MALE-FEMALE	FEMALE-MALE-FEMALE	FEMALE-MALE-FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	TRB	TRB	TRB	TRB
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Maker	Artysen Embedded Technologies	-	Artysen Embedded Technologies	Artysen Embedded Technologies
