BJ74-47 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BJ74-47

BJ74-47: DescriptionRF Triaxial-BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack,; CategoryThe connector The connector; File Size446KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

BJ74-47 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BJ74-47	-	-	View	Buy Now

BJ74-47 Overview

RF Triaxial-BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack,

BJ74-47 Parametric

Parameter Name	Attribute value
Maker	Cinch Connectivity Solutions
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD:MIL-C-49142
Body/casing type	RECEPTACLE
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact point gender	FEMALE
Contact style	COAX
Coupling type	BAYONET
Filter function	NO
insulator material	POLYTETRAFLUORO ETHYLENE
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Options	GENERAL PURPOSE
Panel mounting	YES
Shell surface	NICKEL
Termination type	CRIMP
Total number of contacts	1

Preview

Download Datasheet

View All

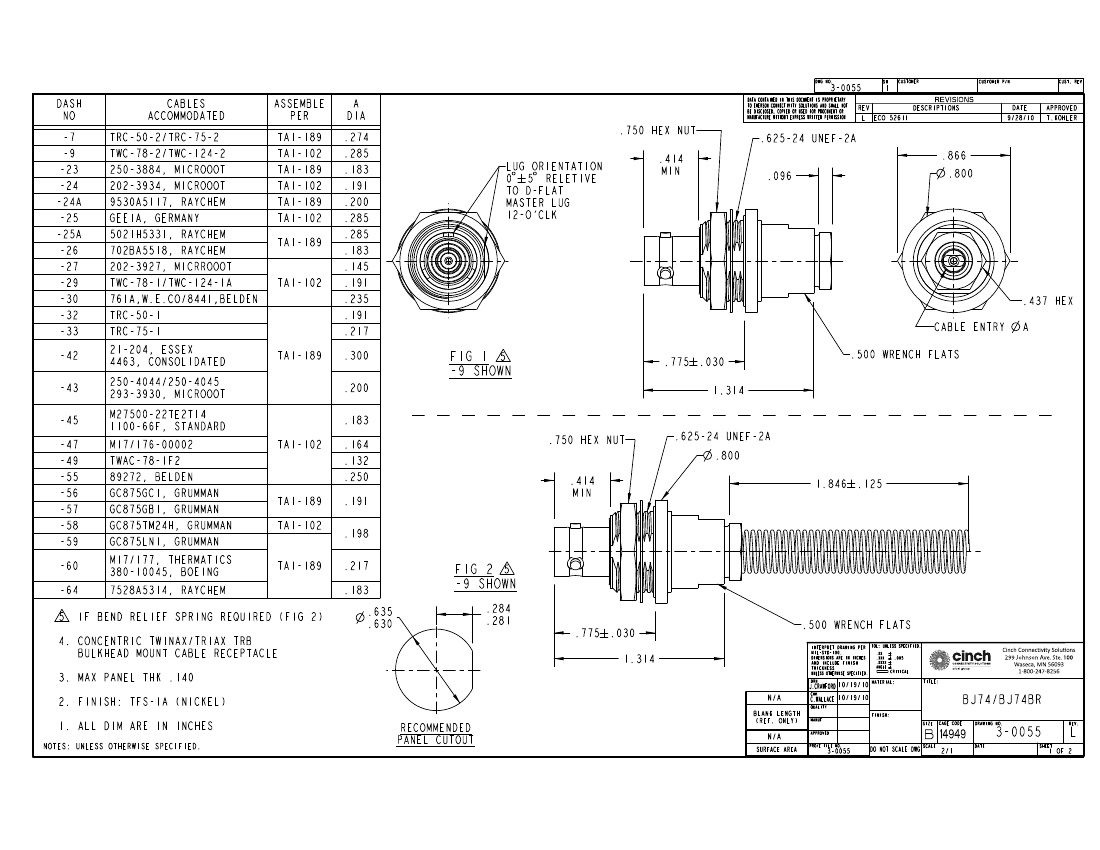

DWG NO.

DASH

-7

-9

CABLES

ACCOMMODATED

TRC-50-2/TRC-75-2

TWC-78-2/TWC-124-2

ASSEMBLE

PER

TAI-189

TAI-102

TAI-189

TAI-102

TAI-189

TAI-102

DIA

.274

.285

.183

.200

.285

.145

.285

.191

LUG ORIENTATION

0 5 RELETIVE

TO D-FLAT

MASTER LUG

12-O'CLK

.096

1.314

.800

1.846 .125

.500 WRENCH FLATS

TOL: UNLESS SPECIFIED.

INTERPRET DRAWING PER

MIL-STD-100.

.XX

DIMENSIONS ARE IN INCHES

.XXX

.005

.XXXX

AND INCLUDE FINISH

ANGLE

THICKNESS

CRITICAL

UNLESS OTHERWISE SPECIFIED.

.750 HEX NUT

.414

MIN

DATA CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO EMERSON CONNECTIVITY SOLUTIONS AND SHALL NOT

REV

BE DISCLOSED, COPIED OR USED FOR PROCUMENT OR

MANUFACTURE WITHOUT EXPRESS WRITTEN PERMISSION

52611

L ECO

3-0055

CUSTOMER

CUSTOMER P/N

CUST. REV

DESCRIPTIONS

REVISIONS

9/28/10

DATE

APPROVED

T.KOHLER

.625-24 UNEF-2A

-23

-24A

-25A

-26

-29

-27

-30

-25

-24

250-3884, MICROOOT

9530A5117, RAYCHEM

5021H5331, RAYCHEM

GEEIA, GERMANY

202-3934, MICROOOT

.866

.800

TWC-78-1/TWC-124-1A

TRC-50-1

TRC-75-1

21-204, ESSEX

4463, CONSOLIDATED

250-4044/250-4045

293-3930, MICROOOT

M27500-22TE2T14

1100-66F, STANDARD

M17/176-00002

TWAC-78-1F2

89272, BELDEN

202-3927, MICRROOOT

76IA,W.E.CO/8441,BELDEN

.191

-32

-33

-42

-43

-45

-47

-49

-55

-56

-57

-58

-59

-60

-64

.235

702BA5518, RAYCHEM

.183

.437 HEX

CABLE ENTRY

.500 WRENCH FLATS

.217

TAI-189

.300

.200

.183

TAI-102

.750 HEX NUT

.414

MIN

.775 .030

1.314

FIG 1

-9 SHOWN

.775 .030

.132

.250

.191

.198

.217

GC875GC1, GRUMMAN

GC875GB1, GRUMMAN

GC875LNI, GRUMMAN

GC875TM24H, GRUMMAN

TAI-189

TAI-102

TAI-189

M17/177, THERMATICS

380-10045, BOEING

7528A5314, RAYCHEM

.183

IF BEND RELIEF SPRING REQUIRED (FIG 2)

4. CONCENTRIC TWINAX/TRIAX TRB

BULKHEAD MOUNT CABLE RECEPTACLE

3. MAX PANEL THK .140

.635

.630

FIG 2

-9 SHOWN

.284

.281

.164

.625-24 UNEF-2A

EMERSON

2. FINISH: TFS-1A (NICKEL)

1. ALL DIM ARE IN INCHES

NOTES: UNLESS OTHERWISE SPECIFIED.

N/A

10/19/10

J.CRAWFORD

10/19/10

C.WALLACE

QUALITY

MANUF

APPROVED

PRO/E FILE NO.

CHK

DRN

MATERIAL:

TITLE:

Network Power

299 Johnson Ave. Ste. 100

Waseca, MN 56093

1-800-247-8256

Connectivity Solutions

RECOMMENDED

PANEL CUTOUT

BLANK LENGTH

(REF. ONLY)

BJ74/BJ74BR

FINISH:

SIZE

N/A

SURFACE AREA

3-0055

DO NOT SCALE DWG

B 14949

SCALE

CAGE CODE

DRAWING NO.

2/1

DATE

3-0055

REV.

SHEET

1 OF 2
