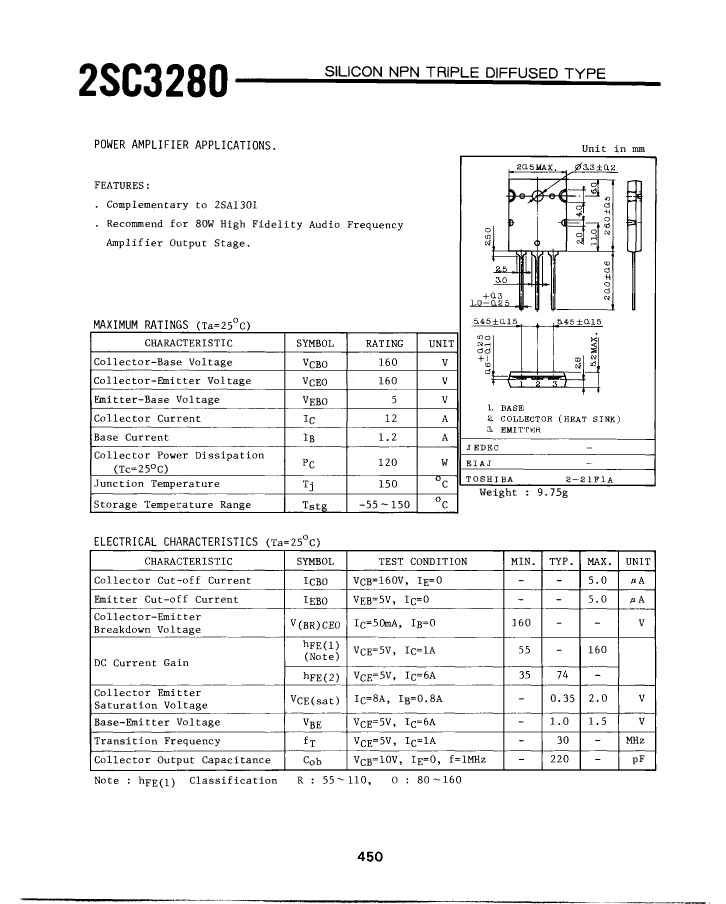

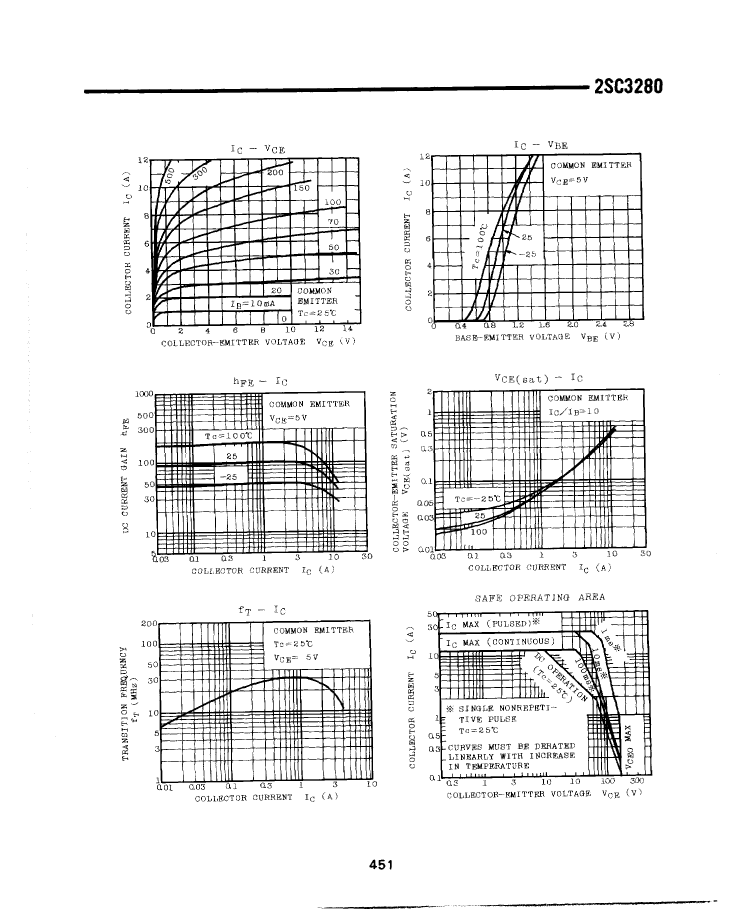

2SC3280R datasheet, PDF - EEWORLD Datasheet

2SC3280R: DescriptionTRANSISTOR 12 A, 160 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size87KB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

2SC3280R Overview

TRANSISTOR 12 A, 160 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	12 A
Collector-emitter maximum voltage	160 V
Configuration	SINGLE
Minimum DC current gain (hFE)	55
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	30 MHz
Base Number Matches	1

	2SC3280R	2SC3280O
Description	TRANSISTOR 12 A, 160 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 12 A, 160 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	12 A	12 A
Collector-emitter maximum voltage	160 V	160 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	55	80
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	30 MHz	30 MHz
Base Number Matches	1	1
