BAS70W-06-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS70W-06-H

BAS70W-06-H: DescriptionRectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size91KB，7 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/

Download Datasheet Parametric Compare View All

BAS70W-06-H Overview

Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon,

BAS70W-06-H Parametric

Parameter Name	Attribute value
Maker	FORMOSA
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

Formosa MS

BAS70W / BAS70W-04 / BAS70W-05 / BAS70W-06

SMD Small Signal Schottky Diode

List

List................................................................................................. 1

Package outline............................................................................... 2

Features.......................................................................................... 2

Mechanical data............................................................................... 2

Maximum ratings ............................................................................. 2

Rating and characteristic curves........................................................ 3

Pinning information........................................................................... 4

Marking........................................................................................... 4

Suggested solder pad layout............................................................. 4

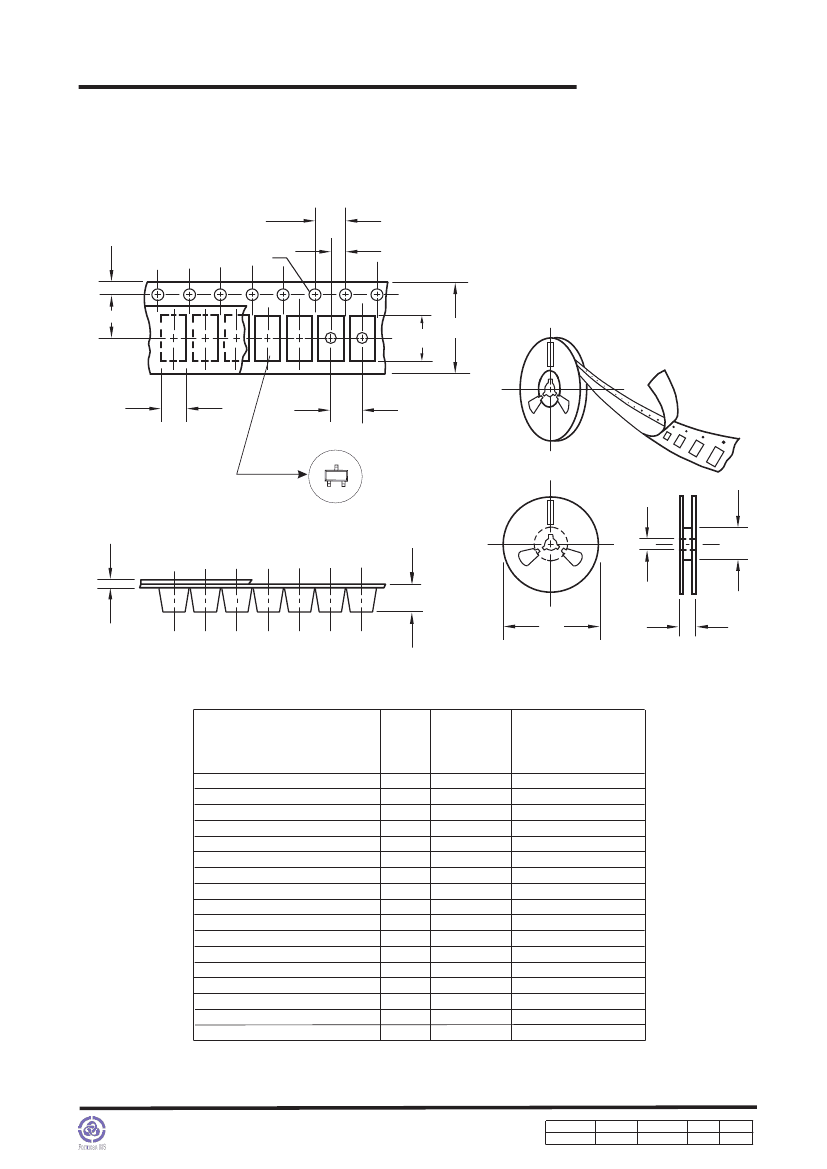

Packing information.......................................................................... 5

Reel packing.................................................................................... 6

Suggested thermal profiles for soldering processes............................. 6

High reliability test capabilities........................................................... 7

http://www.formosams.com/

TEL:886-2-22696661

FAX:886-2-22696141

Document ID

Issued Date

2009/08/10

Revised Date

2010/03/10

Revision

Page.

Page 1

DS-22163B

BAS70W-06-H Related Products

	BAS70W-06-H	BAS70W-06	BAS70W-04-H	BAS70W-04	BAS70W-05	BAS70W-05-H
Description	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon,	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon,	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon,	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon,	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon,	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon,
Maker	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	2	2	2	2	2	2
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.07 A	0.07 A	0.07 A	0.07 A	0.07 A	0.07 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Maximum repetitive peak reverse voltage	70 V	70 V	70 V	70 V	70 V	70 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
