Part Number:
Status:
Description:
0743209074
Active
MicroCross™ DVI-D Digital Visual Interface, PCB Receptacle, Through Hole, Right
Angle, 2.34mm (.092") P.C. Tail Length, Jackpost pre-tightened Type, 24 Circuits, Lead
Free
Documents:

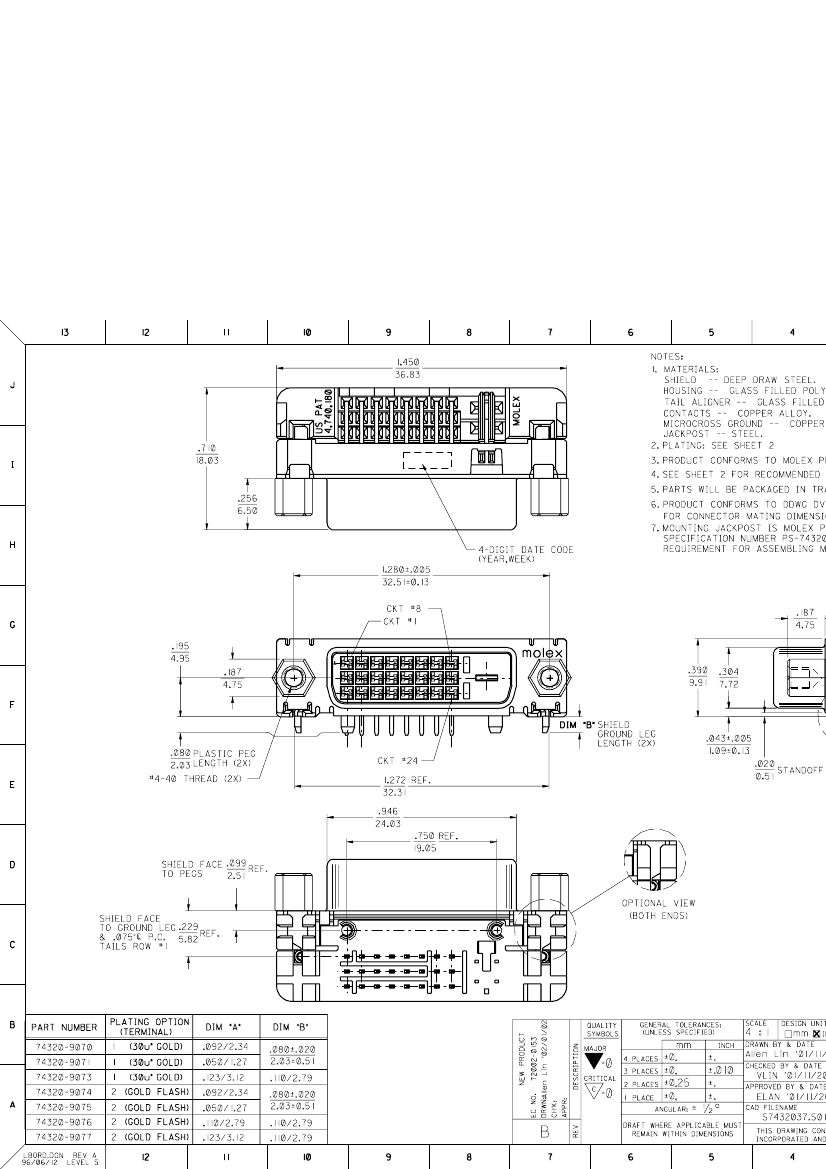

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Name
Type
I/O Connectors
74320
Wire-to-Board
DDWG (Digital Display Working Group) Standard
Receptacle
MicroCross™DVI
N/A
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Gender
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire Size AWG
N/A
24
24
Natural
100
Receptacle
Yes
Yes
Copper Alloy
Gold
Tin
3
Right Angle
0.092 In
2.34 mm
Yes
Yes
Tray
Yes
0.075 In
1.91 mm
0.075 In
1.91 mm
2
0.05
100
2.50
Yes
Yes
1
No
-20°C to +85°C
Through Hole
No
N/A
EU RoHS
RoHS Co
Exemptio
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
74320S
Mates
88744
Electrical
Current - Maximum per Contact
Grounding to Panel
Shield Type
Shielded
Voltage - Maximum
3A
Yes
Full Shield
Yes
40V AC (RMS)
Material Info
