ASSV1-FREQL-C3-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASSV1-FREQL-C3-T

ASSV1-FREQL-C3-T: DescriptionCMOS/TTL Output Clock Oscillator, 8MHz Min, 128MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size304KB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASSV1-FREQL-C3-T Overview

CMOS/TTL Output Clock Oscillator, 8MHz Min, 128MHz Max, ROHS COMPLIANT, SMD, 4 PIN

ASSV1-FREQL-C3-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL
maximum descent time	4.4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	ASSV1
Installation features	SURFACE MOUNT
Maximum operating frequency	128 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL

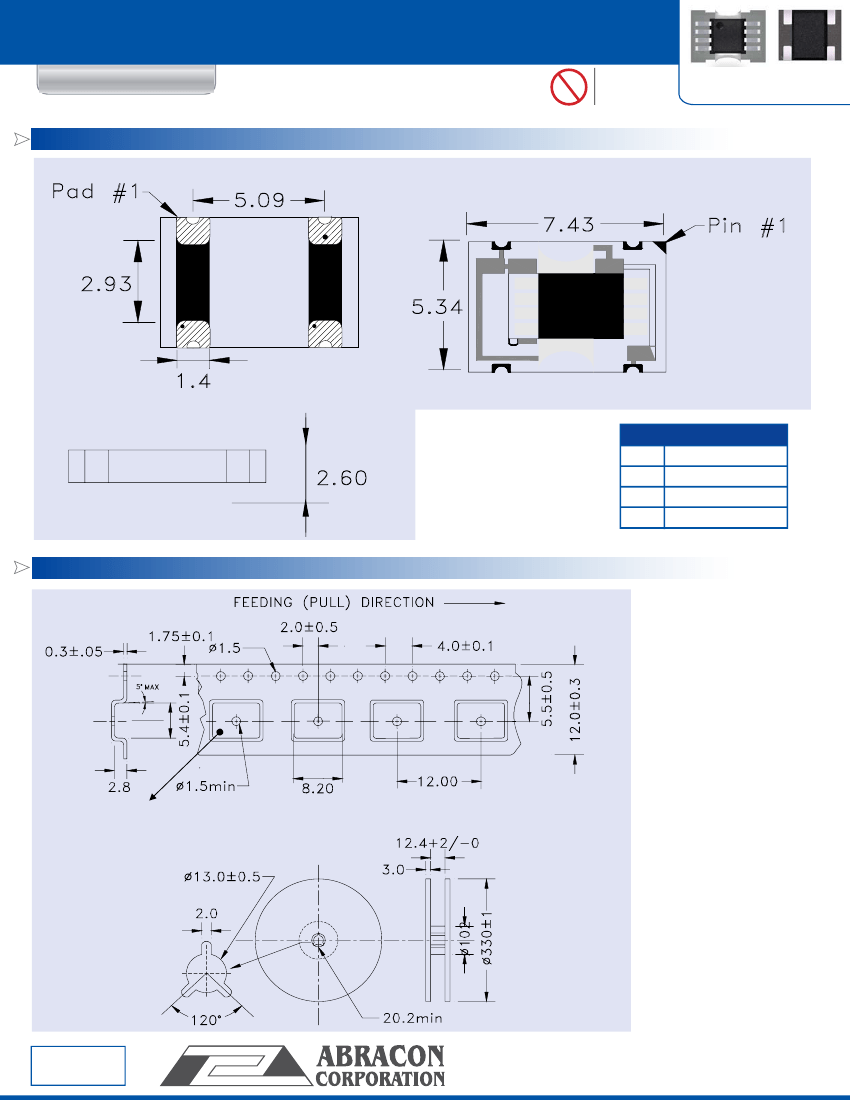

physical size	7.43mm x 5.34mm x 2.6mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

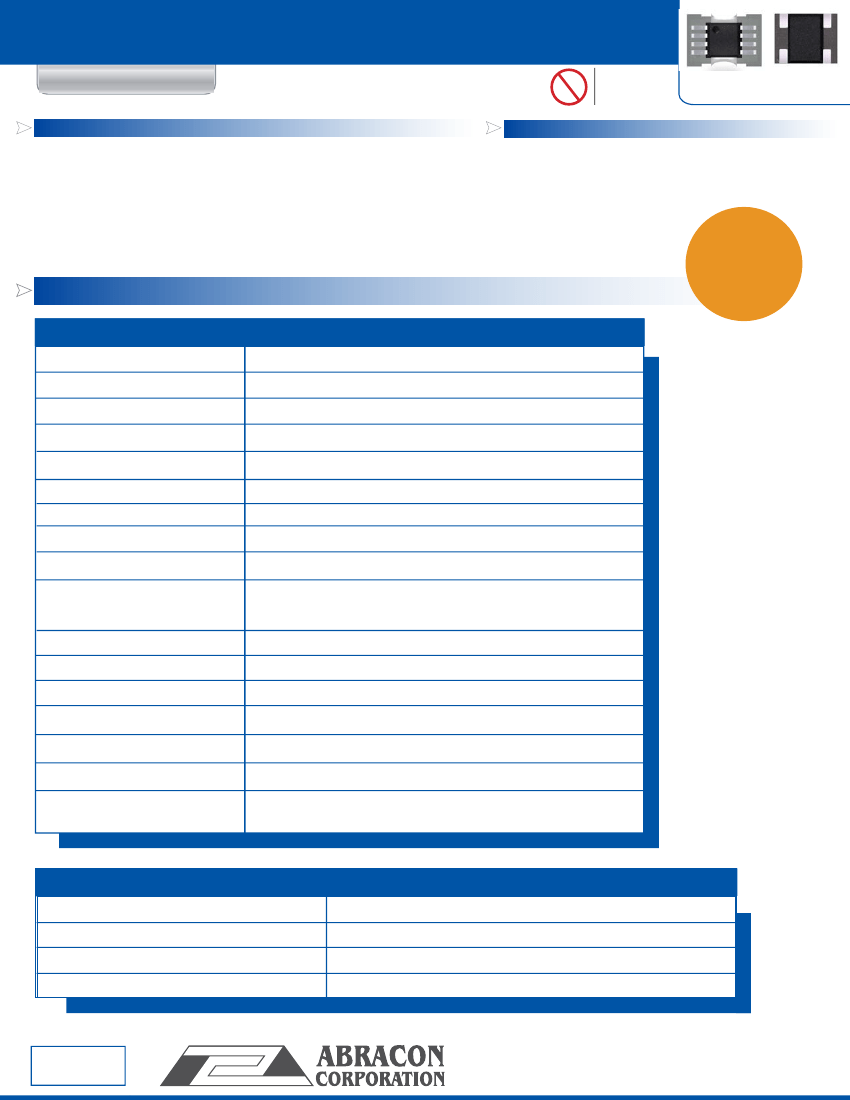

TTL/CMOS SMD LOW EMI SPREAD

SPECTRUM CRYSTAL CLOCK OSCILLATORS

ASSL1

ASSV1

FEATURES:

APPLICATIONS:

RoHS

Compliant

7.43 x 5.34 x 2.6mm

| | | | | | | | | | | | | | |

• Integrated spread spectrum technology

• Printers, Digital Copy Machines, Scanners,

• Standard TTL or CMOS output

Modems, Navigation Equipment, Automotive,

• Meets jitter requirements for all major CISC, RISC & DSP processors

Audio, Medical Electronics, Telecommunications,

• 8 MHz to 128 MHz output frequency range

Aerospace

Drop-in

• Modulated clock reduces electromagnetic emissions up to 20dB

Replacement for

• Reduces engineering and compliance costs; Faster release time to market

Industry Standard

7 x 5 mm

STANDARD SPECIFICATIONS:

Package!

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

ASSL1 or ASSV1 Series

8MHz to 128MHz

0°C to + 70°C (see options)

- 60°C to + 150°C

Frequency Stability vs. Temp. ± 100 ppm (see options)

ASSL1 (Vdd) = 5.0V ±5% ; ASSV1 (Vdd) = 3.3V ±5%

Supply voltage

Supply Current (Idd)

30mA

5ns max., 3.5ns typ.

Rise time / Fall time

Load Capacitance CL

Output Voltage (VOL)

(VOH)

Rise Time (Tr)

Fall Time (Tf)

Duty Cycle

Start-up Time

Aging

Bandwidth Accuracy

Cycle to Cycle Jitter

10pF TTL, 15pF typ.

VOL1 @ 4mA = 0.4V max. ; VOL2 @ 10mA = 1.2V max.

VOH1 @ 4mA = 2.4V min. ; VOH2 @ 6mA = 2.0V min.

2nsec min, 5nsec max

2nsec min, 4.4nsec max

40% to 60%, 50% typ.

10ms max., 3ms typ.

±5ppm per year

±10% max.

8MHz = 450psec ; 16MHz = 400psec ; 32MHz = 380MHz

psec ; 64MHz = 380psec ; 128MHz = 380psec

Absolute Maximum Ratings

Supply Voltage (Vdd)

Operating Temperature (TOPR)

Storage Temperature (TSTO)

Junction Temperature (TJUN)

3.0VDC min. to 6.0VDC max.

-40ºC to 85ºC

-65ºC to 150ºC

+150ºC

Revised: 1.04.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED
