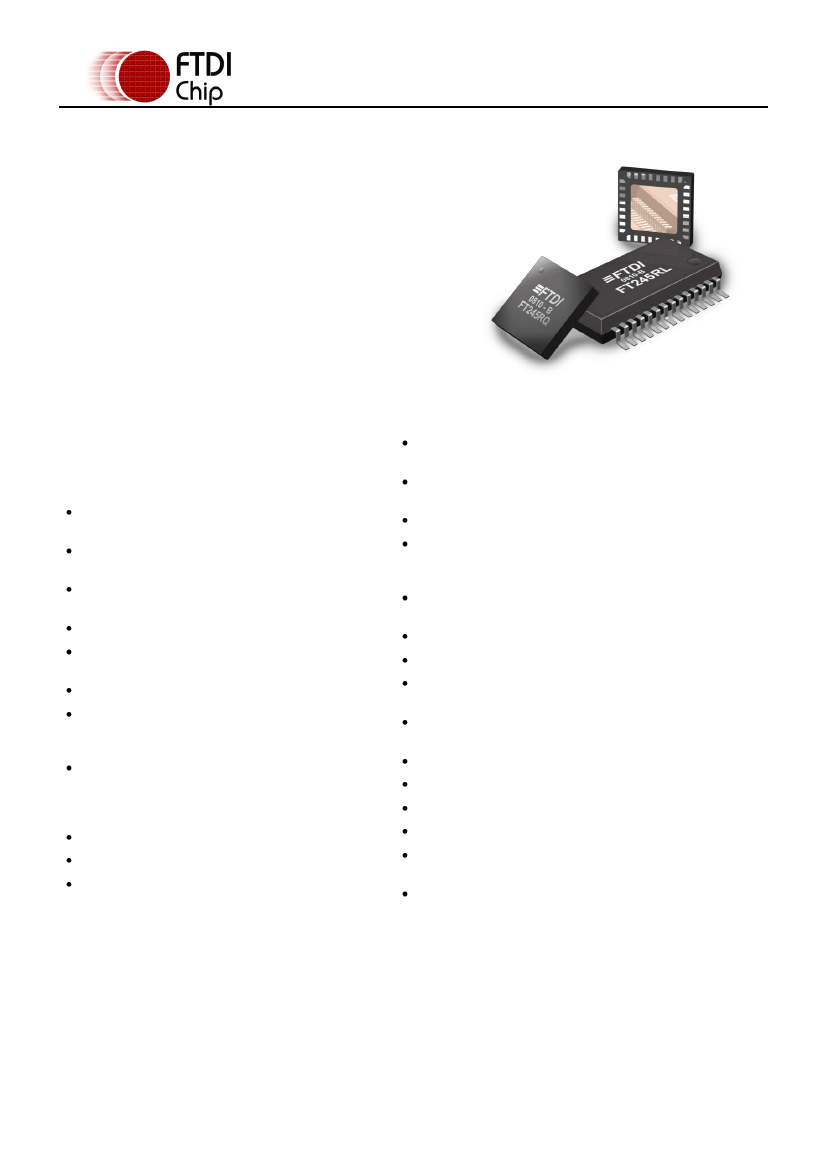

Document No.: FT_000052

FT245R USB FIFO IC Datasheet Version 2.10

Clearance No.: FTDI# 39

Future Technology

Devices International Ltd

FT245R USB FIFO IC

The FT245R is a USB to parallel FIFO

interface with the following advanced

features:

Single chip USB to parallel FIFO bidirectional

data transfer interface.

Entire USB protocol handled on the chip. No

USB specific firmware programming required.

Fully integrated 1024 bit EEPROM storing

device descriptors and FIFO I/O configuration.

Fully integrated USB termination resistors.

Fully integrated clock generation with no

external crystal required.

Data transfer rates up to 1Mbyte / second.

128 byte receive buffer and 256 byte transmit

buffer utilising buffer smoothing technology to

allow for high data throughput.

FTDI‟s royalty-free Virtual Com Port (VCP) and

Direct (D2XX) drivers eliminate the

requirement for USB driver development in

most cases.

Unique USB FTDIChip-ID™ feature.

Configurable FIFO interface I/O pins.

Synchronous and asynchronous bit bang

interface options.

Device supplied pre-programmed with unique USB

serial number.

Supports bus powered, self powered and high-power

bus powered USB configurations.

Integrated +3.3V level converter for USB I/O.

Integrated level converter on FIFO interface for

interfacing to external logic running at between

+1.8V and +5V.

True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL

input.

Configurable I/O pin output drive strength.

Integrated power-on-reset circuit.

Fully integrated AVCC supply filtering - no external

filtering required.

+3.3V (using external oscillator) to +5.25V (using

internal oscillator) Single Supply Operation.

Low operating and USB suspend current.

Low USB bandwidth consumption.

UHCI/OHCI/EHCI host controller compatible.

USB 2.0 Full Speed compatible.

-40°C to 85°C extended operating temperature

range.

Available in compact Pb-free 28 Pin SSOP and QFN-

32 packages (both RoHS compliant).
