MX584LCSA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MX584LCSA

MX584LCSA: DescriptionThree Terminal Voltage Reference, 3 Output, 10V, BIPolar, PDSO8, SO-8; CategoryPower/power management The power supply circuit; File Size214KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MX584LCSA Overview

Three Terminal Voltage Reference, 3 Output, 10V, BIPolar, PDSO8, SO-8

MX584LCSA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	SO-8
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Number of functions	1
Output times	3
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	10.005 V
Minimum output voltage	9.995 V
Nominal output voltage	10 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	1 mA
Maximum supply voltage (Vsup)	30 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	5 ppm/°C
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	0.1%
width	3.9 mm

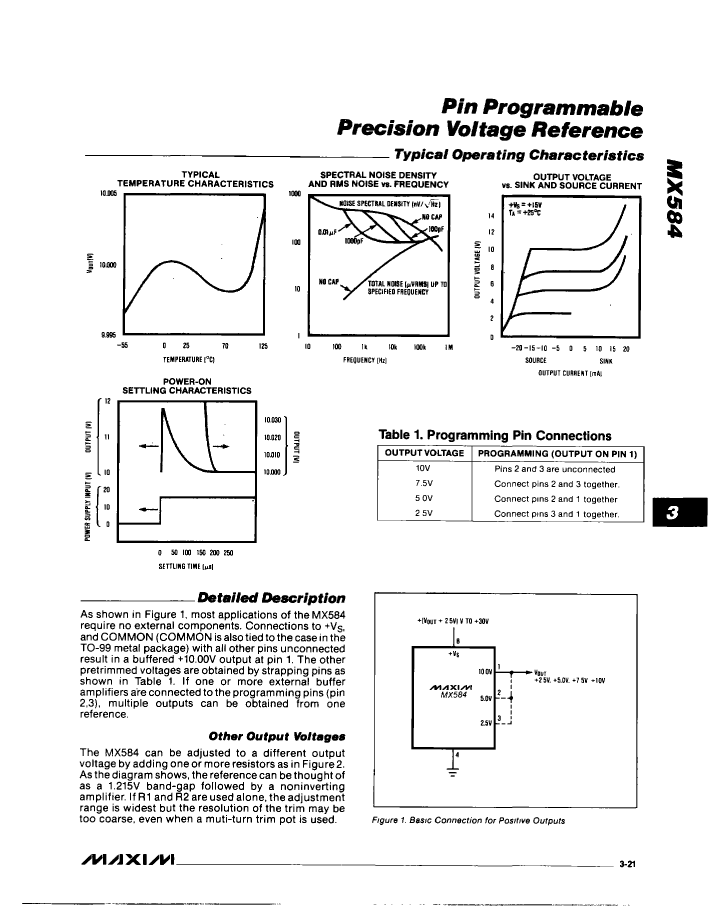

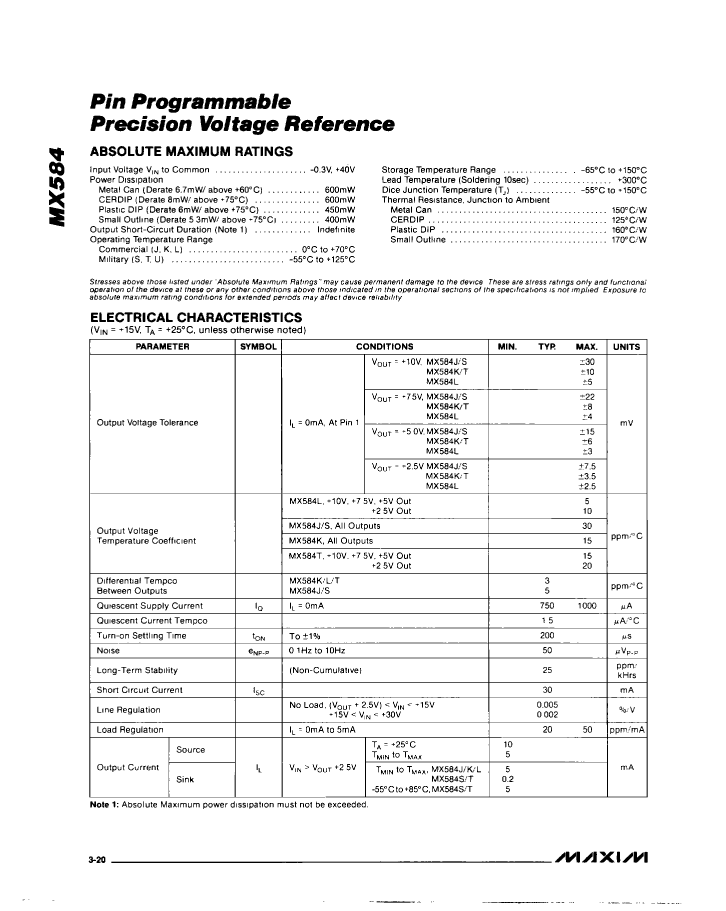

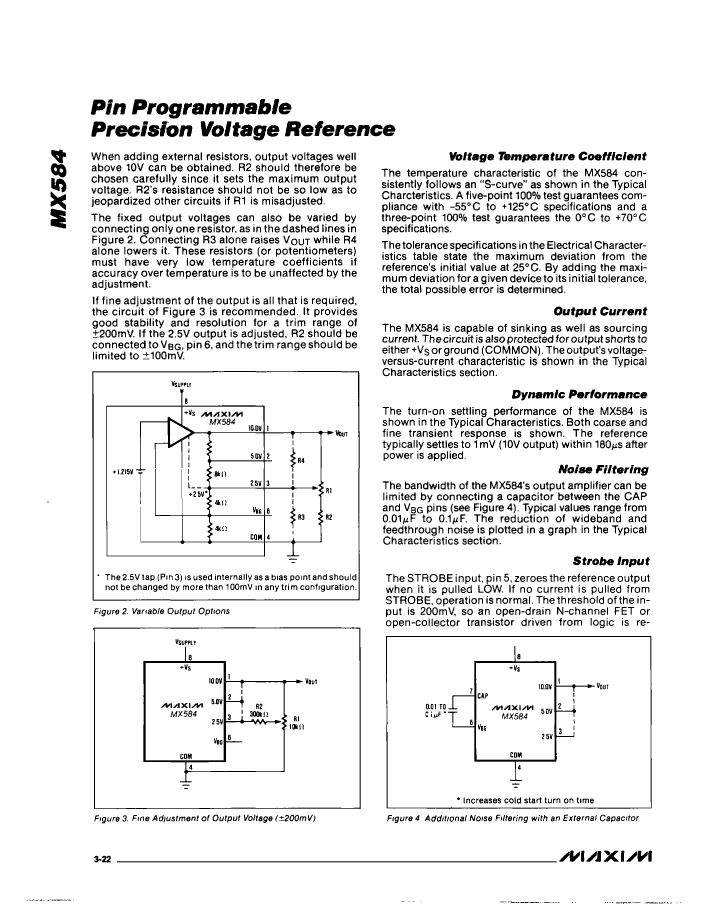

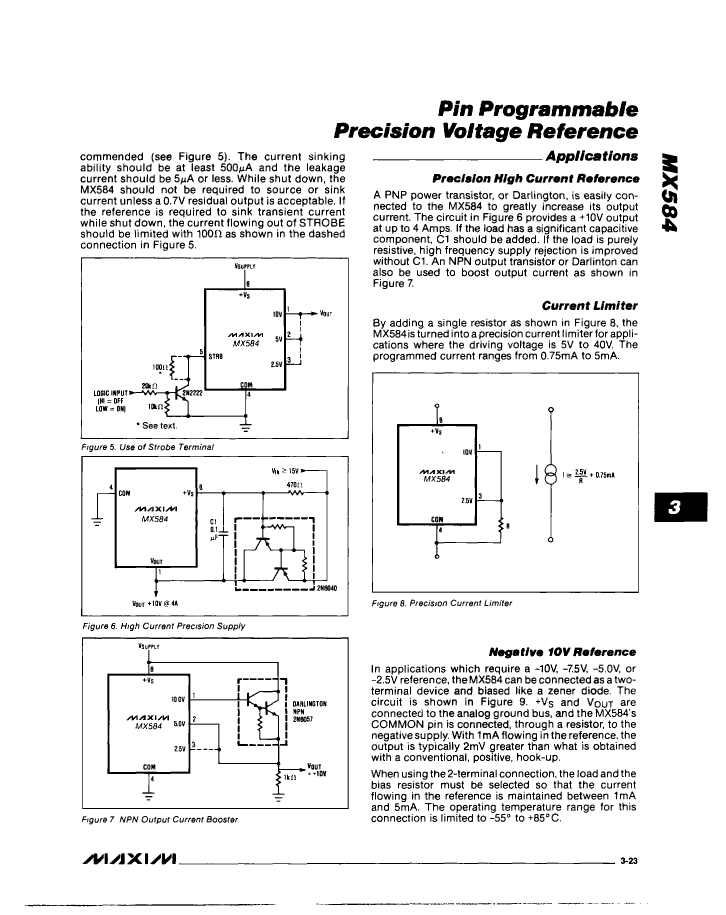

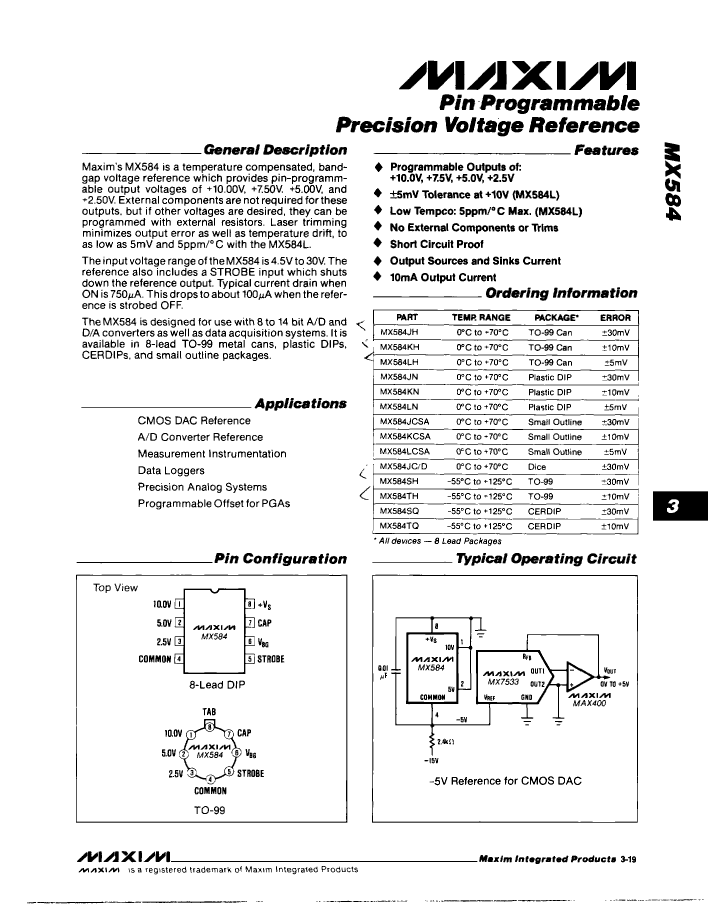

Preview

Download Datasheet

View All

MX584LCSA Related Products

	MX584LCSA	MX584LN	MX584LH
Description	Three Terminal Voltage Reference, 3 Output, 10V, BIPolar, PDSO8, SO-8	Three Terminal Voltage Reference, 3 Output, 10V, BIPolar, PDIP18, PLASTIC, DIP-18	Three Terminal Voltage Reference, 3 Output, 10V, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	TO-99
package instruction	SO-8	PLASTIC, DIP-18	METAL CAN, TO-99, 8 PIN
Contacts	8	18	8
Reach Compliance Code	not_compliant	_compli	not_compliant
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8	R-PDIP-T18	O-MBCY-W8
JESD-609 code	e0	e0	e0
Number of functions	1	1	1
Output times	3	3	3
Number of terminals	8	18	8
Maximum operating temperature	70 °C	70 °C	70 °C
Maximum output voltage	10.005 V	10.005 V	10.005 V
Minimum output voltage	9.995 V	9.995 V	9.995 V
Nominal output voltage	10 V	10 V	10 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL
encapsulated code	SOP	DIP	TO-99
Encapsulate equivalent code	SOP8,.25	DIP8,.3	CAN8,.2
Package shape	RECTANGULAR	RECTANGULAR	ROUND
Package form	SMALL OUTLINE	IN-LINE	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	1 mA	1 mA	1 mA
Maximum supply voltage (Vsup)	30 V	30 V	30 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
surface mount	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	5 ppm/°C	5 ppm/°C	5 ppm/°C
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	WIRE
Terminal location	DUAL	DUAL	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	NO	NO	NO
Maximum voltage tolerance	0.1%	0.1%	0.1%
Maker	Maxim	Maxim	-
Maximum seat height	1.75 mm	5.72 mm	-
Terminal pitch	1.27 mm	2.54 mm	-
width	3.9 mm	7.62 mm	-
