HV 500 V Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
FEATURES
•
Low losses
•
High stability
•
High capacitance in small size
•
Kinked (preferred) or straight leads
•
Lead (Pb)-free available
tangent
line
SH
D
APPLICATIONS
•
Bypassing
•
Coupling
•
Resonant circuit.
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors have inward kinked leads with a spacing of
5 mm (0.200") and a lead length from 4 to 30 mm.
Encapsulation is made of phenolic resin.
F
Capacitors with 5 mm (0.20") lead spacing.
CAPACITANCE RANGE:
Class 1, at 1 MHz, 1.2 V (RMS); 1.0 pF to 330 pF
1 kHz, 1 ± 0.2V (RMS) for capacitance values higher than 1000 pF.
TEMPERATURE COEFFICIENTS:
Class 1 NP0; P100; N150; N750; N1500
RATED DC VOLTAGE:
500 V
SECTIONAL SPECIFICATIONS:
Class 1 IEC 60 384-8,
EIA 198
DIELECTRIC STRENGTH:
250 % of rated voltage
CLIMATIC CATEGORY:
Class 1 55/125/21
INSULATION RESISTANCE AT 500V (DC):
≥
10 000 MΩ
OPERATING TEMPERATURE RANGE:
TOLERANCE ON CAPACITANCE:
± 0.25 pF; ± 2 %
Class 1 - 55 to + 125 °C
DISSIPATION FACTOR:
Class 1, C
≤
30 pF;
≤
20 x (10/C + 0.7) x 10
-4
maximum
Class 1, C > 30 pF;
≤
20 x 10
-4
MARKING
Marking indicates capacitance value and tolerance in
accordance with
“EIA 198”.
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 ± 3 °C, at normal atmospheric conditions
Document Number: 28514
Revision: 23-Feb-05
For technical questions contact: CDC@vishay.com
www.vishay.com
39
HV 500 V Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
ORDERING INFORMATION, CLASS 1, 500 V (DC), KINKED
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD
SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO;
3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
PACKAGING CODE
8
th
AND 9
th
DIGIT
(3)
CATALOG
NUMBER
(4)
3
rd
DIGIT:
5 = STANDARD,
8 = RoHS
COMPLIANT
REEL
AMMO
BULK
CLASS 1 P100
1.5
2.2
3.3
4.7
6.8
10
15
22
33
CLASS 1 NP0
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
CLASS 1 N150
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
±2%
6.5
7.5
8.5
11.0
5.0
4.0
± 0.25
D229C20P2JL6.J5.
D339C20P2JL6.J5.
5.0
D479C20P2HL6.J5.
D689C20P2HL6.J5.
D100G20P2GL6.J5.
D150G20P2GL6.J5.
D220G25P2GL6.J5.
D330G25P2GL6.J5.
D470G29P2GL6.J5.
D680G33P2GL6.J5.
D101G43P2GL6.J5.
06
08
10
22.2 518 ..244
22.2 518 ..344
22.2 518 ..444
22.2 518 ..644
22.2 518 ..004
22.2 518 ..104
22.2 518 ..204
22.2 518 ..304
22.2 518 ..404
22.2 518 ..604
22.2 518 ..014
±2%
6.5
7.5
8.5
10.0
12.0
5.0
4.0
± 0.25
5.0
D109C20C0KL6.J5.
D159C20C0KL6.J5.
D229C20C0JL6.J5.
D339C20C0JL6.J5.
D479C20C0HL6.J5.
D689C20C0HL6.J5.
D100G20C0GL6.J5.
D150G20C0GL6.J5.
D220G25C0GL6.J5.
D330G25C0GL6.J5.
D470G29C0GL6.J5.
D680G33C0GL6.J5.
D101G39C0GL6.J5.
D151G47C0GL6.J5.
06
08
10
22.2 508 ..044
22.2 508 ..144
22.2 508 ..244
22.2 508 ..344
22.2 508 ..444
22.2 508 ..644
22.2 508 ..004
22.2 508 ..104
22.2 508 ..204
22.2 508 ..304
22.2 508 ..404
22.2 508 ..604
22.2 508 ..014
22.2 508 ..114
±2%
6.5
7.5
8.5
10.0
12.0
5.0
4.0
± 0.25
5.0
D159C20M7GL6.J5.
D229C20M7GL6.J5.
D339C20M7GL6.J5.
D479C20M7GL6.J5.
D689C25M7GL6.J5.
D100G29M7GL6.J5.
D150G33M7GL6.J5.
D220G39M7GL6.J5.
D330G47M7GL6.J5.
06
08
10
22.2 598 ..144
22.2 598 ..244
22.2 598 ..344
22.2 598 ..444
22.2 598 ..644
22.2 598 ..004
22.2 598 ..104
22.2 598 ..204
22.2 598 ..304
www.vishay.com
40
For technical questions contact: CDC@vishay.com
Document Number: 28514
Revision: 23-Feb-05
HV 500 V Narrow Tolerance
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
Vishay BCcomponents
ORDERING INFORMATION, CLASS 1, 500 V (DC), KINKED
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD
SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO;
3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
D689C20U2JL6.J5.
5.0
D100G20U2JL6.J5.
D150G20U2JL6.J5.
D220G20U2JL6.J5.
±2%
6.5
7.5
8.5
10.0
12.0
5.0
4.0
D330G25U2JL6.J5.
D470G29U2JL6.J5.
D680G33U2JL6.J5.
D101G39U2JL6.J5.
D151G47U2JL6.J5.
06
08
10
PACKAGING CODE
8
th
AND 9
th
DIGIT
(3)
CATALOG
NUMBER
(4)
3
rd
DIGIT:
5 = STANDARD,
8 = RoHS
COMPLIANT
REEL
AMMO
BULK
CLASS 1 N750
6.8
10
15
22
33
47
68
100
150
CLASS 1 N1500
8.2
10
15
22
33
47
68
100
150
220
330
±2%
5.0
6.5
7.5
8.5
10.0
12.0
4.0
5.0
± 0.25 pF
D829C20P3KL6.J5.
D100G20P3KL6.J5.
D150G20P3KL6.J5.
D220G20P3KL6.J5.
D330G20P3KL6.J5.
D470G20P3KL6.J5.
D680G25P3KL6.J5.
D101G29P3KL6.J5.
D151G33P3KL6.J5.
D221G39P3KL6.J5.
D331G47P3KL6.J5.
06
08
10
22.2 588 ..844
22.2 588 ..004
22.2 588 ..104
22.2 588 ..204
22.2 588 ..304
22.2 588 ..404
22.2 588 ..604
22.2 588 ..014
22.2 588 ..114
22.2 588 ..214
22.2 588 ..314
± 0.25
22.2 558 ..644
22.2 558 ..004
22.2 558 ..104
22.2 558 ..204
22.2 558 ..304
22.2 558 ..404
22.2 558 ..604
22.2 558 ..014
22.2 558 ..114
Notes
1. Maximum thickness 4.0 mm.
2. SH = seated height.
3. Packaging codes refer to inward kinked leads. Other styles available on request.
4. 3
rd
digit to complete RoHS catalog number. 8
th
and 9
th
digit of the catalog number to be completed with the packaging code.
5. Other capacitance values E12 series available
PACKAGING
D
max
(mm)
5.0 (0.20")
6.5 (0.25")
7.5 (0.29")
8.5 (0.33")
10.0 (0.39")
11.0 (0.43")
12.0 (0.47")
SIZE CODE
20
25
29
33
39
43
47
1000
2000
2000
PACKAGING QUANTITIES
BULK
REEL
AMMO
Note
1. The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack.
Document Number: 28514
Revision: 23-Feb-05
For technical questions contact: CDC@vishay.com
www.vishay.com
41
HV 500 V Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
D
P
2
P
∆P
∆P
∆h
∆h
H
1
W
2
H
0
L
W
1
W
0
W
A
e
direction of unreeling
∅d
P
1
F
P
0
t
1
detail A
t
D
0
Kinked capacitors on tape, lead spacing 5.0 mm (0.2”).
DIMENSIONS OF TAPE
SYMBOL
D
d
P
P
0
∆P
P
1
P
2
F
∆h
∆s
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
PARAMETER
NOMINAL
body diameter
lead diameter
pitch between capacitors
feed-hole pitch
plane deviation
feed-hole centre to lead centre
feed-hole centre to component centre
lead spacing
component alignment
deviation along tape, left or right
tape width
hold-down tape width
hole position
hold-down tape margin
height to seating plane
maximum component height
lead end protrusion
maximum length of snipped lead
feed-hole diameter
total tape thickness
maximum thickness of tape and wires
11.0 maximum
0.6
12.7
12.7
1.0 maximum
3.85
6.35
5.0
0
0
18.0
5.0 minimum
9.0
3.0 maximum
16.0
32.0
1.0 maximum
11.0
4.0
0.9 maximum
1.5 maximum
DIMENSIONS
(mm)
TOLERANCE
-
± 0.05
± 1.0
± 0.3; note 1
-
± 0.7; note 2
± 1.3; note 2
+ 0.6
- 0.4
± 1.0
± 1.0
+ 1.0
- 0.5
-
+ 0.75
- 0.5
-
± 0.5
-
-
-
± 0.2
−
−
Notes
1. Cumulative pitch error:
± ≤
1 mm /20 pitches.
2. Obliquity maximum 3°.
www.vishay.com
42
For technical questions contact: CDC@vishay.com
Document Number: 28514
Revision: 23-Feb-05
HV 500 V Narrow Tolerance
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
REEL AND TAPE DATA
in millimeters
51 max.
Vishay BCcomponents
355.6
±2.0
28
±1.5
45 max.
8.0

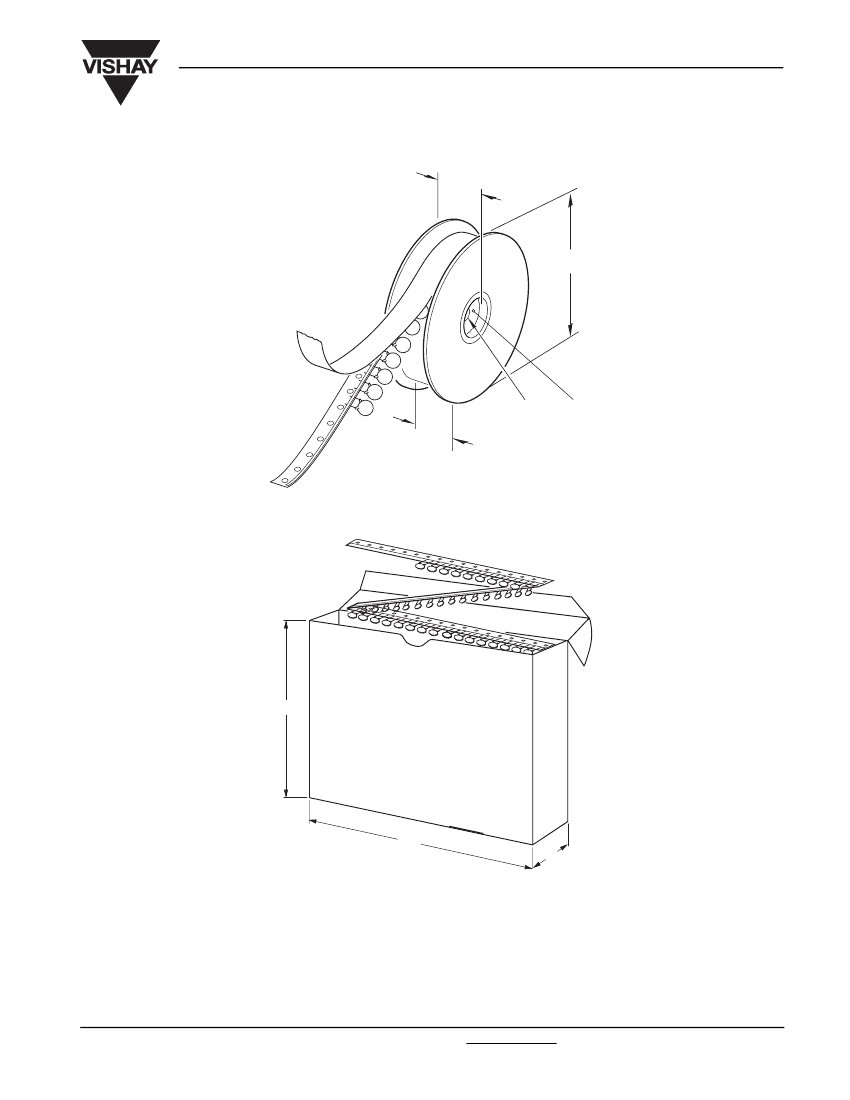

Reel with capacitors on tape.
290
335
50
Ammopack with capacitors on tape.
Document Number: 28514
Revision: 23-Feb-05
For technical questions contact: CDC@vishay.com
www.vishay.com
43
