IDT7317L55J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> IDT7317L55J

IDT7317L55J: DescriptionMultiplier, 16-Bit, CMOS, PQCC84, PLASTIC, LCC-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size211KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT7317L55J Overview

Multiplier, 16-Bit, CMOS, PQCC84, PLASTIC, LCC-84

IDT7317L55J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	LCC
package instruction	PLASTIC, LCC-84
Contacts	84
Reach Compliance Code	not_compliant
boundary scan	NO
maximum clock frequency	18.18 MHz
External data bus width	16
JESD-30 code	S-PQCC-J84
JESD-609 code	e0
length	29.2862 mm
low power mode	NO
Humidity sensitivity level	1
Number of terminals	84
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	32
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum slew rate	52.72 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.2862 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER

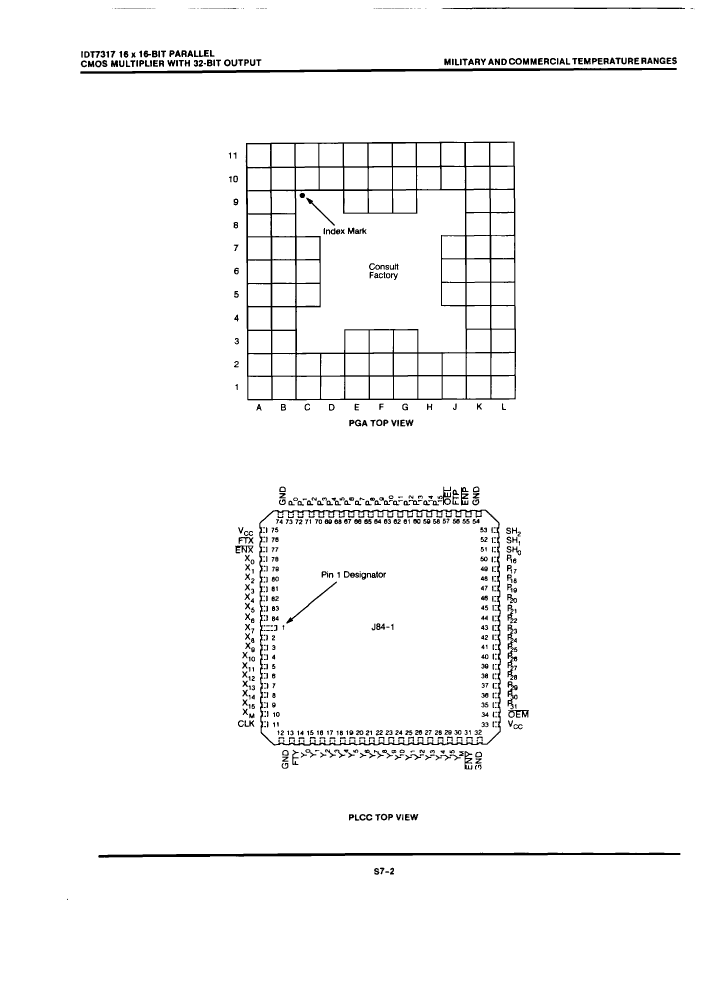

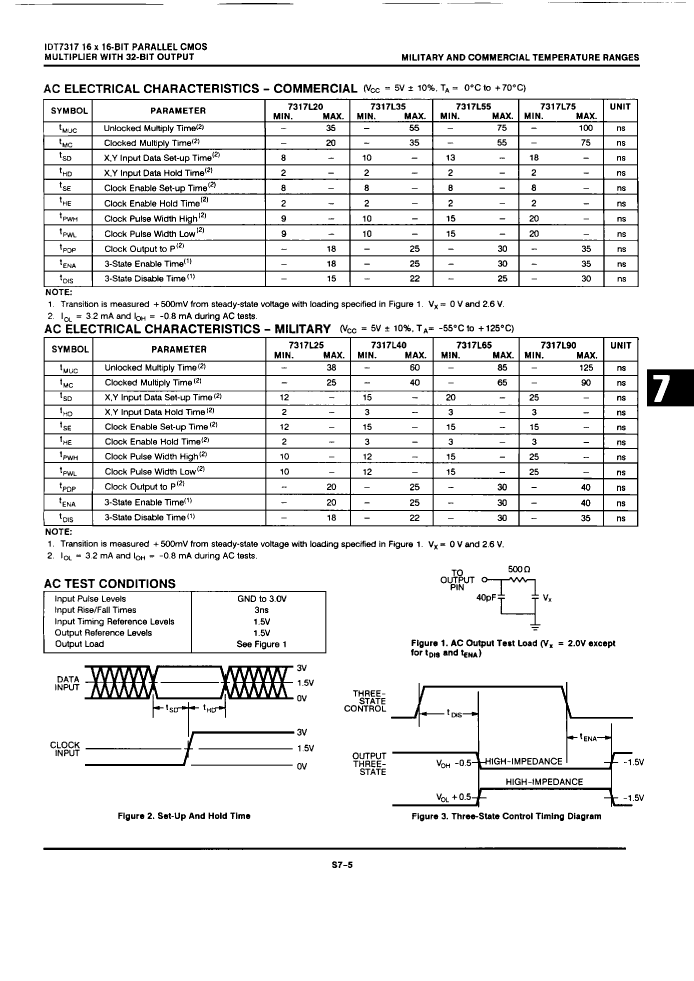

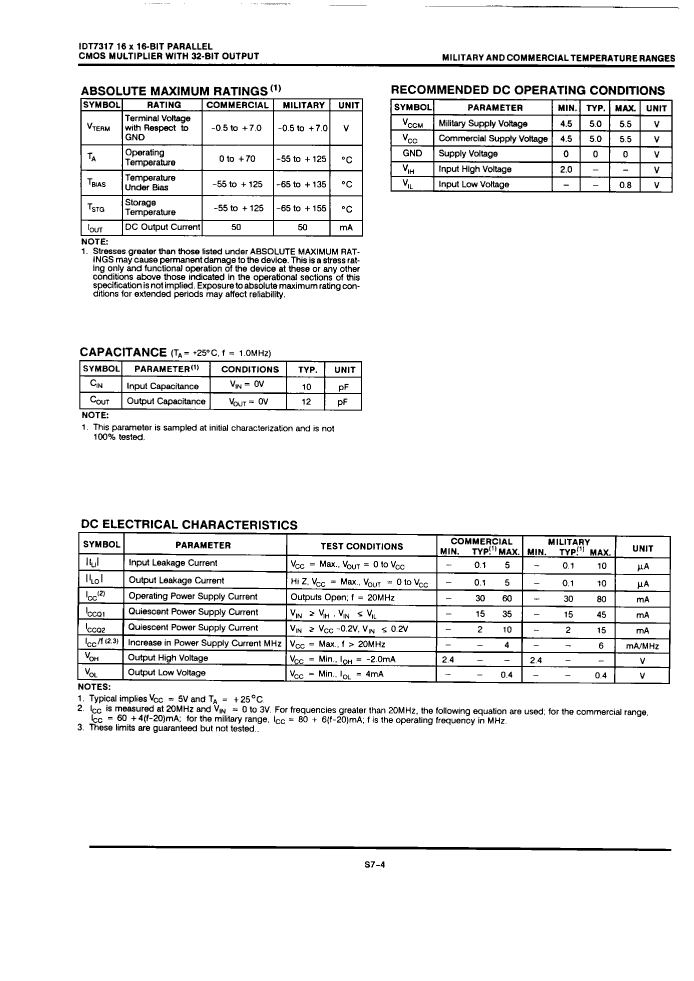

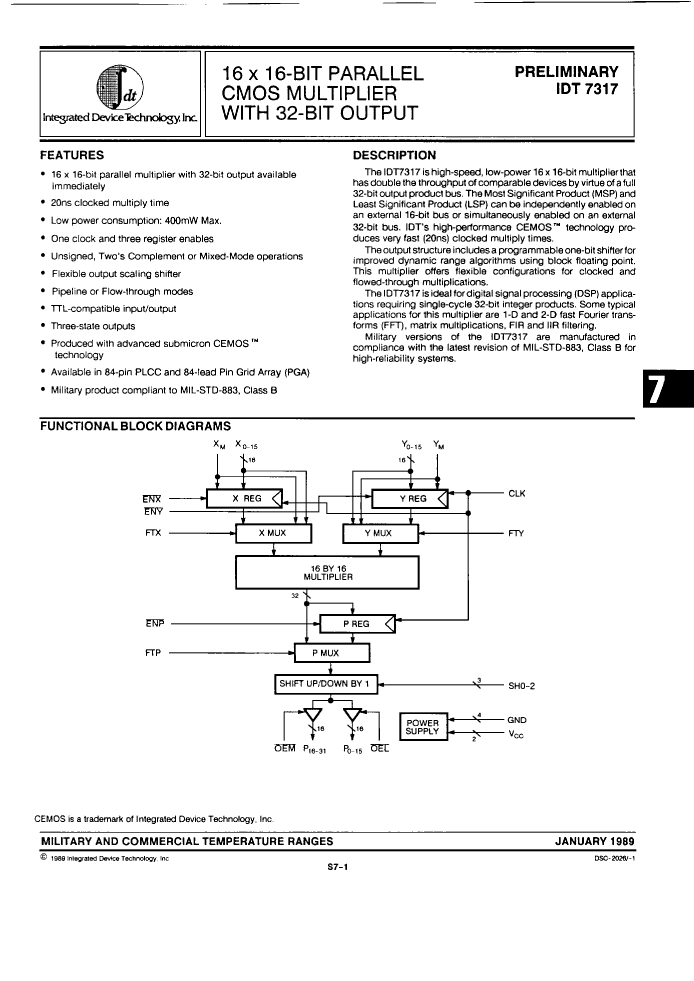

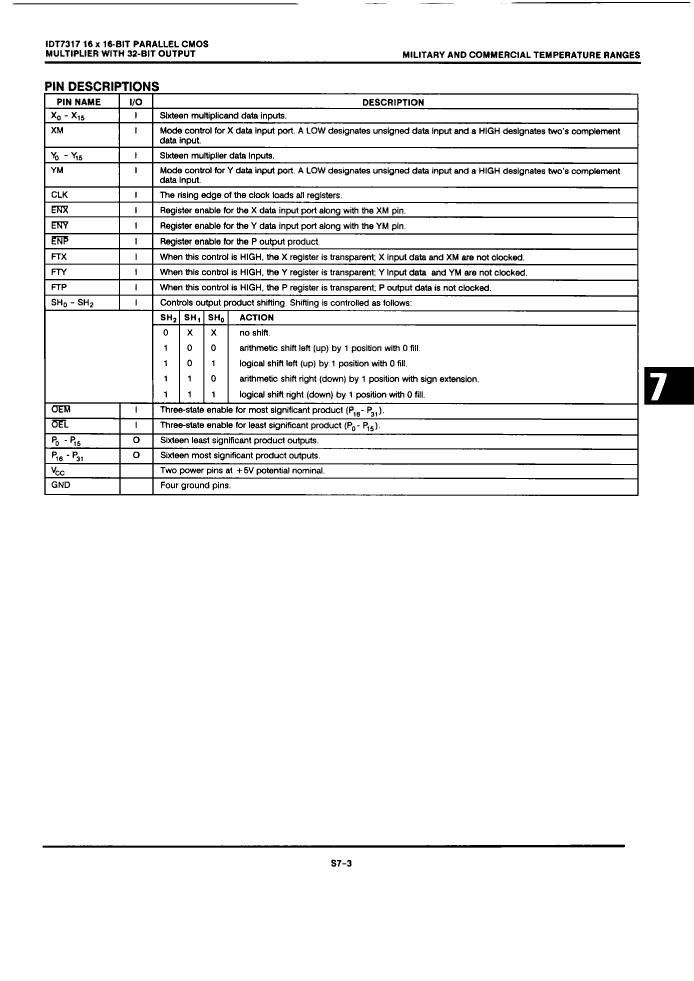

Preview

Download Datasheet

View All

IDT7317L55J Related Products

	IDT7317L55J	IDT7317L40GB	IDT7317L65GB	IDT7317L75G	IDT7317L20J	IDT7317L35G	IDT7317L35J	IDT7317L90GB	IDT7317L25GB	IDT7317L75J
Description	Multiplier, 16-Bit, CMOS, PQCC84, PLASTIC, LCC-84	Multiplier, 16-Bit, CMOS, CPGA84, PGA-84	Multiplier, 16-Bit, CMOS, CPGA84, PGA-84	Multiplier, 16-Bit, CMOS, CPGA84, PGA-84	Multiplier, 16-Bit, CMOS, PQCC84, PLASTIC, LCC-84	Multiplier, 16-Bit, CMOS, CPGA84, PGA-84	Multiplier, 16-Bit, CMOS, PQCC84, PLASTIC, LCC-84	Multiplier, 16-Bit, CMOS, CPGA84, PGA-84	Multiplier, 16-Bit, CMOS, CPGA84, PGA-84	Multiplier, 16-Bit, CMOS, PQCC84, PLASTIC, LCC-84
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	PGA	PGA	PGA	LCC	PGA	LCC	PGA	PGA	LCC
package instruction	PLASTIC, LCC-84	PGA-84	PGA-84	PGA-84	PLASTIC, LCC-84	PGA-84	PLASTIC, LCC-84	PGA-84	PGA-84	PLASTIC, LCC-84
Contacts	84	84	84	84	84	84	84	84	84	84
Reach Compliance Code	not_compliant	_compli	_compli	not_compliant	not_compliant	_compli	_compli	_compli	not_compliant	not_compliant
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	18.18 MHz	25 MHz	15.38 MHz	13.33 MHz	50 MHz	28.57 MHz	28.57 MHz	11.11 MHz	40 MHz	13.33 MHz
External data bus width	16	16	16	16	16	16	16	16	16	16
JESD-30 code	S-PQCC-J84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-PQCC-J84	S-CPGA-P84	S-PQCC-J84	S-CPGA-P84	S-CPGA-P84	S-PQCC-J84
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	29.2862 mm	30.6705 mm	30.6705 mm	30.6705 mm	29.2862 mm	30.6705 mm	29.2862 mm	30.6705 mm	30.6705 mm	29.2862 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Number of terminals	84	84	84	84	84	84	84	84	84	84
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C
Output data bus width	32	32	32	32	32	32	32	32	32	32
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	QCCJ	PGA	PGA	PGA	QCCJ	PGA	QCCJ	PGA	PGA	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ	PGA84M,11X11	PGA84M,11X11	PGA84M,11X11	LDCC84,1.2SQ	PGA84M,11X11	LDCC84,1.2SQ	PGA84M,11X11	PGA84M,11X11	LDCC84,1.2SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	GRID ARRAY	GRID ARRAY	GRID ARRAY	CHIP CARRIER	GRID ARRAY	CHIP CARRIER	GRID ARRAY	GRID ARRAY	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.572 mm	3.937 mm	3.937 mm	3.937 mm	4.572 mm	3.937 mm	4.572 mm	3.937 mm	3.937 mm	4.572 mm
Maximum slew rate	52.72 mA	110 mA	52.28 mA	33.32 mA	180 mA	94.28 mA	94.28 mA	26.66 mA	200 mA	33.32 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)
Terminal form	J BEND	PIN/PEG	PIN/PEG	PIN/PEG	J BEND	PIN/PEG	J BEND	PIN/PEG	PIN/PEG	J BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	QUAD	PERPENDICULAR	QUAD	PERPENDICULAR	PERPENDICULAR	QUAD
width	29.2862 mm	30.6705 mm	30.6705 mm	30.6705 mm	29.2862 mm	30.6705 mm	29.2862 mm	30.6705 mm	30.6705 mm	29.2862 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER
Maker	IDT (Integrated Device Technology)	-	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
ECCN code	-	3A001.A.2.C	3A001.A.2.C	-	3A001.A.3	3A991.A.2	3A991.A.2	3A001.A.2.C	3A001.A.2.C	-
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
