MM1Z4689 - MM1Z4717
V
Z
:
5.1 to 43 V
P
D
:
500 mW

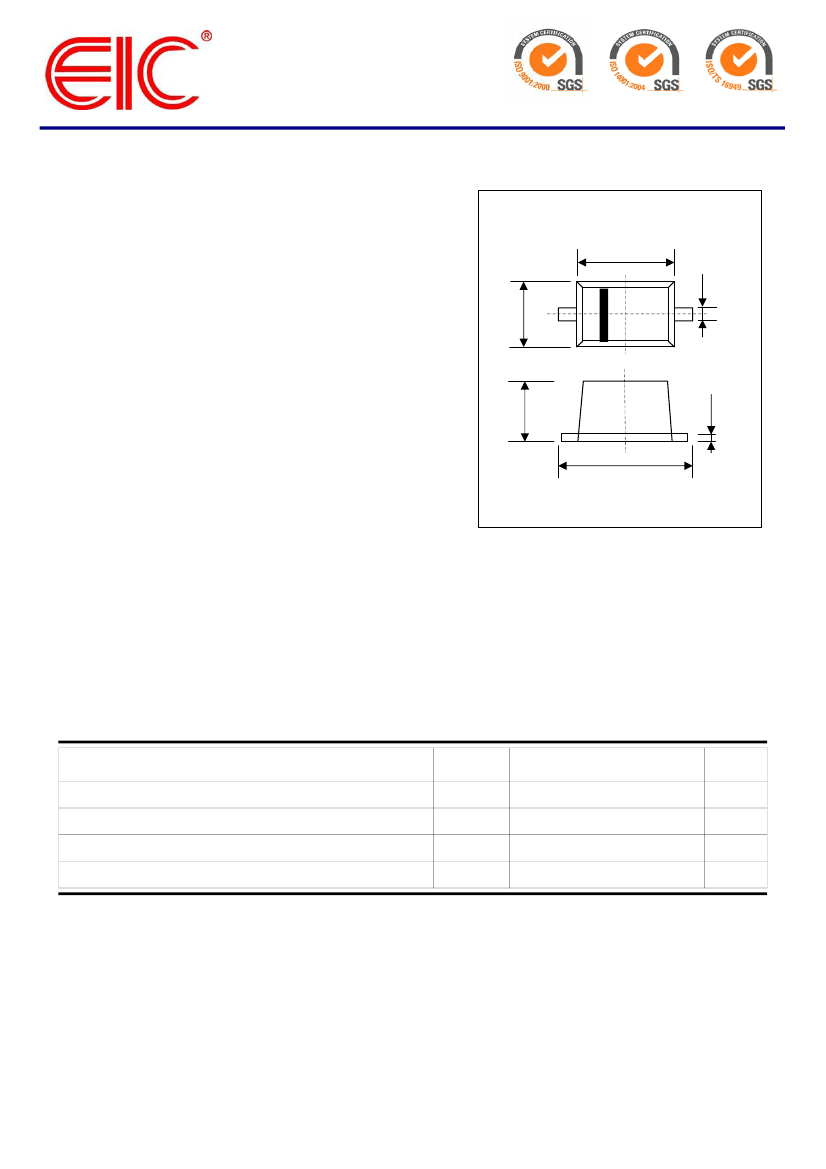

FEATURES :
*
*
*
*
*
Total Power Dissipation 500 mW
Wide Zener Reverse Voltage Range 5.1 V to 43 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
Pb / RoHS Free
ZENER DIODES
SOD-123
2.7
2.6
0.6
0.5
1.65
1.55
3.9
3.7
Dimensions in millimeters
MECHANICAL DATA :
* Case : SOD-123
* Weight : 0.01 gram (approximately)
Absolute Maximum Ratings
(Ta = 25 °C)
Parameter
Total Power Dissipation
Maximum Forward Voltage at I
F
= 10 mA
Junction Temperature
Storage Temperature Range
Symbol
P
D
V
F
T
J
T
STG
Value
500
0.9
150
-55 to + 150
0.135
0.127
1.15
1.05
Unit
mW
V
°C
°C
Page 1 of 3
Rev. 03 : June 9, 2008
TH97/10561QM
TW00/17276EM
IATF 0060636
SGS TH07/1033

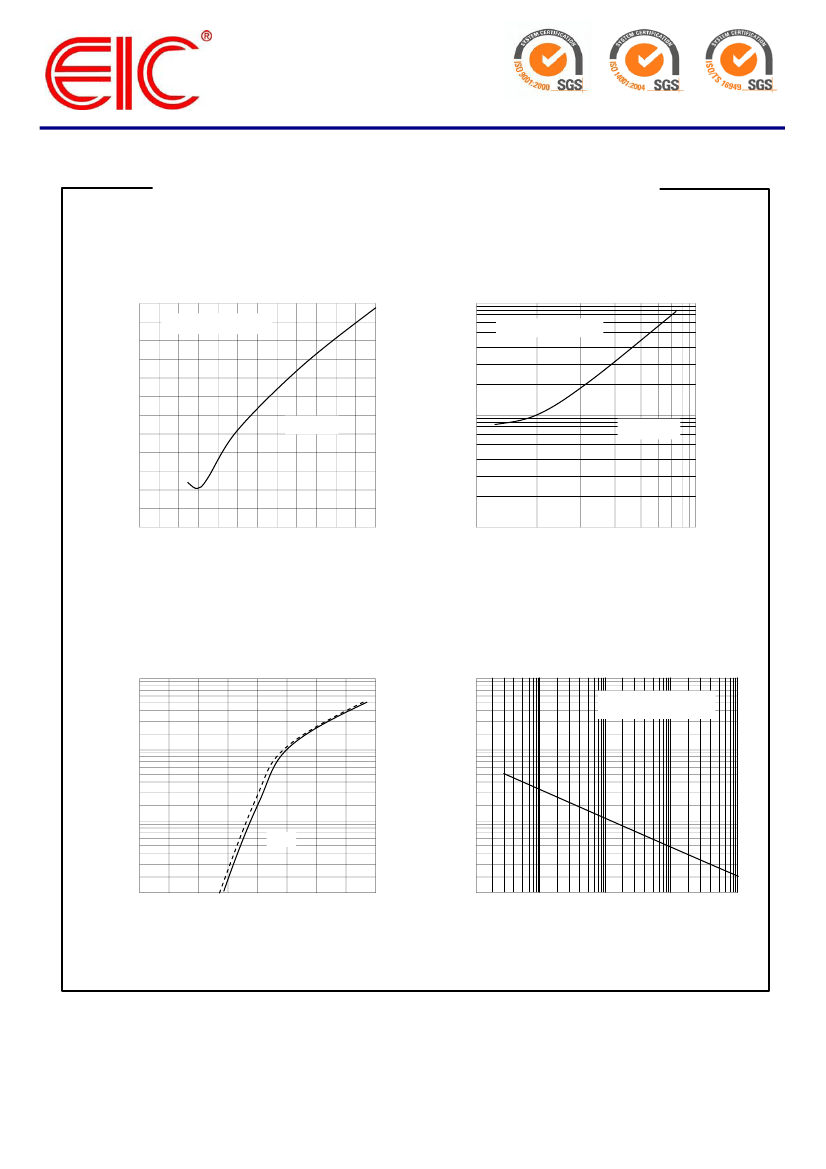

RATING AND CHARACTERISTIC CURVES ( MM1Z4689 - MM1Z4717 )
FIG.1 - TEMPERATURE COEFFICIENTS
(TEMPERATURE RANGE - 55 °C to +150 °C)
8
FIG.2 - TEMPERATURE COEFFICIENTS
(TEMPERATURE RANGE - 55 °C to +150 °C)
10
Ө
VZ
, TEMPERATURE COEFFICIENT,
(mV/°C)
6
4
2
V
Z
@ I
ZT
0
Ө
VZ
, TEMPERATURE COEFFICIENT,
(mV/°C)
TYPICAL T
C
VALUES
TYPICAL T
C
VALUES
10
V
Z
@ I
ZT
-2
-4
0
2
4
6
8
10
12
1
10
10
V
Z
, NOMINAL ZENER VOLTAGE, (V)
V
Z
, NOMINAL ZENER VOLTAGE, (V)
FIG.3 - TYPICAL FORWARD VOLTAGE
FIG.4 - MAXIMUM NON-REPETITIVE SURGE POWER
1000
1000
10
P
PK
, TPEAK SURGE POWER, (W)
I
F
, FORWARD CURRENT, (mA)
RECTANGULAR
WAVEFORM, T
A
= 25 °C
10
10
25 °C
10
1
0.4
1
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
0.1
1
10
100
1000
V
F
, FORWARD VOLTAGE, (V)
PW, PULSE WIDTH, (ms)
Page 3 of 3
Rev. 03 : June 9, 2008
