SUR3220CT datasheet, PDF - EEWORLD Datasheet

SUR3220CT: DescriptionRectifier Diode, 1 Phase, 2 Element, 32A, 200V V(RRM), Silicon, G122, 3 PIN; CategoryDiscrete semiconductor diode; File Size42KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

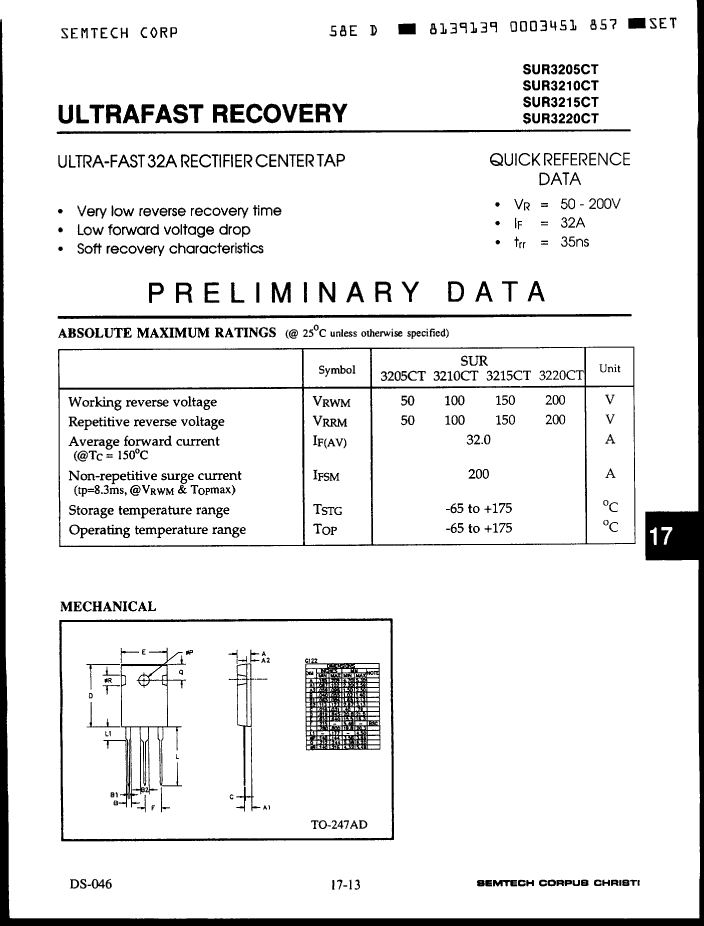

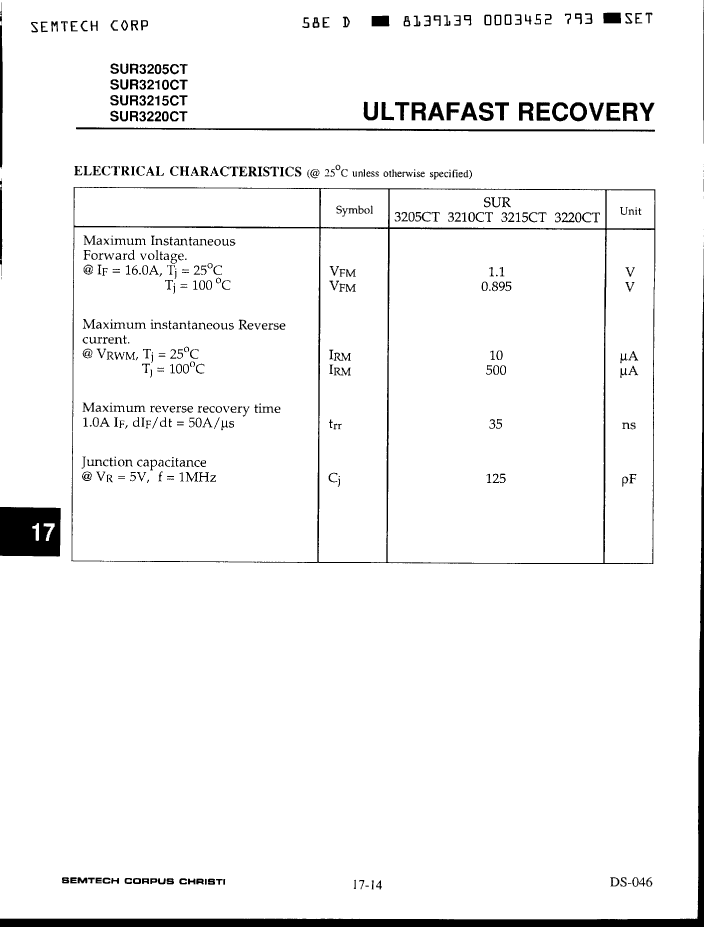

SUR3220CT Overview

Rectifier Diode, 1 Phase, 2 Element, 32A, 200V V(RRM), Silicon, G122, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SEMTECH
package instruction	R-PSFM-T3
Contacts	3
Manufacturer packaging code	G122
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	32 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

	SUR3220CT	SUR3215CT
Description	Rectifier Diode, 1 Phase, 2 Element, 32A, 200V V(RRM), Silicon, G122, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 32A, 150V V(RRM), Silicon, G122, 3 PIN
Is it Rohs certified?	incompatible	incompatible
Maker	SEMTECH	SEMTECH
package instruction	R-PSFM-T3	R-PSFM-T3
Contacts	3	3
Manufacturer packaging code	G122	G122
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum output current	32 A	32 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	150 V
Maximum reverse recovery time	0.035 µs	0.035 µs
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
