DCM-27W2S-1A7N-A191-A197 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DCM-27W2S-1A7N-A191-A197

DCM-27W2S-1A7N-A191-A197: DescriptionD Subminiature Connector, 27 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size94KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DCM-27W2S-1A7N-A191-A197 Overview

D Subminiature Connector, 27 Contact(s), Female, Solder Terminal, Receptacle,

DCM-27W2S-1A7N-A191-A197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	SHIELDED
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	DCM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD AND PANEL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	27
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

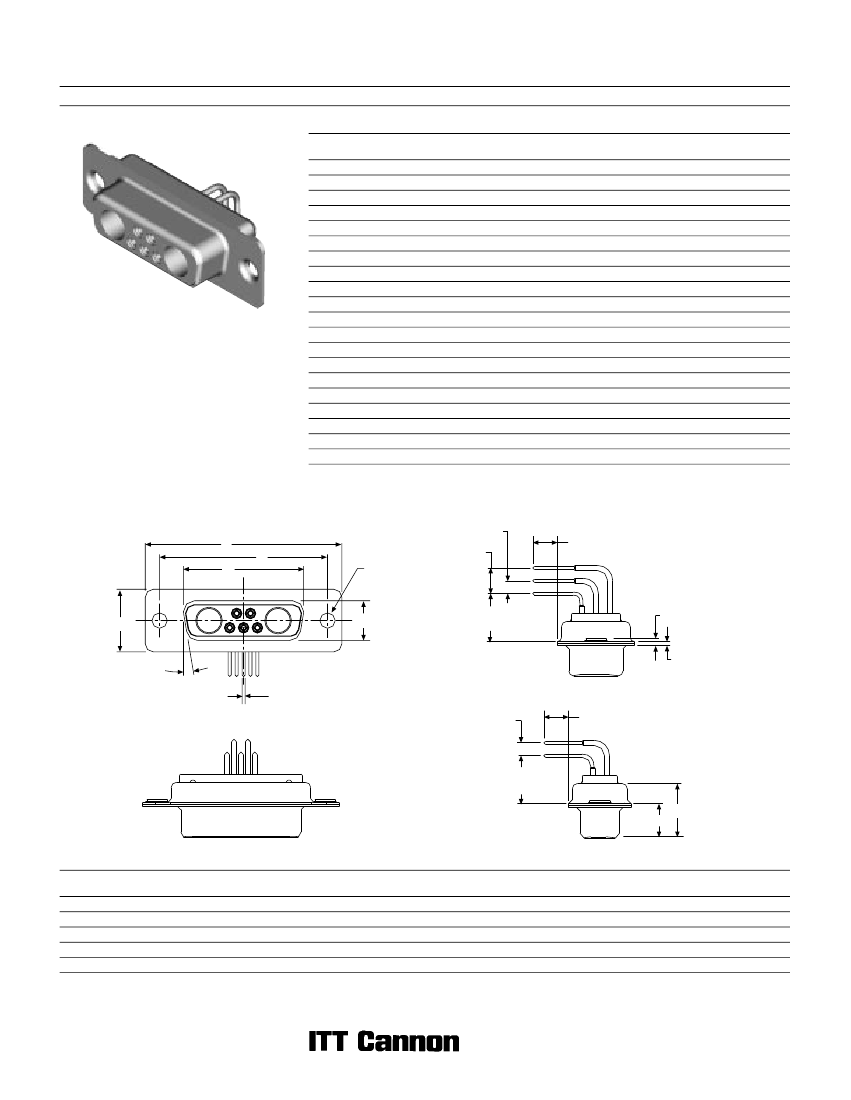

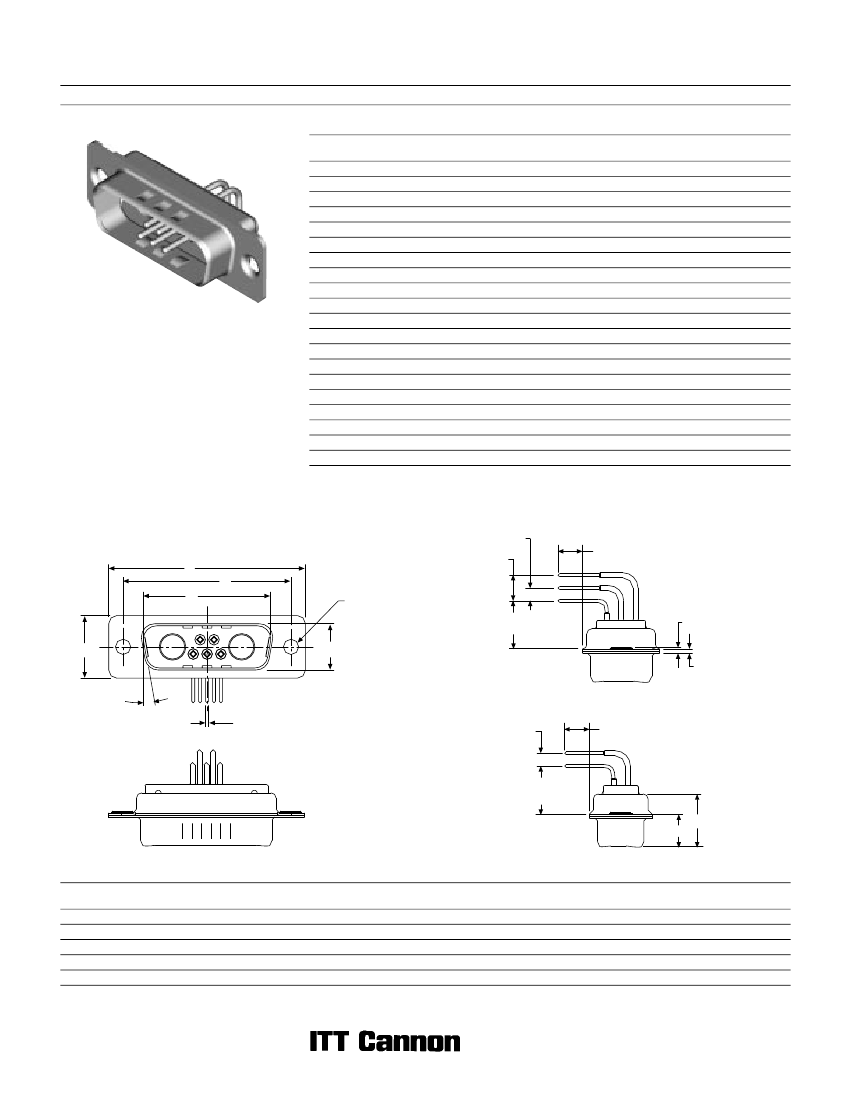

D Subminiature

90° PC Tail — European Footprint 10,2 or 9,4 mm

Plug

Part Numbers

Shell Size

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

24W7

36W4

43W2

47W1

Part Number

Without Hardware

DEM-5W1P-1A0N-K87

DAM-7W2P-1A0N-K87

DAM-11W1P-1A0N-K87

DAM-3W3P-1A0N-K87

DAM-3WK3P-1A0N-K87

DBM-5W5P-1A0N-K87

DBM-9W4P-1A0N-K87

DBM-13W3P-1A0N-K87

DBM-17W2P-1A0N-K87

DBM-21W1P-1A0N-K87

DCM-8W8P-1A0N-K87

DCM-13W6P-1A0N-K87

DCM-17W5P-1A0N-K87

DCM-21WA4P-1A0N-K87

DCM-25W3P-1A0N-K87

DCM-27W2P-1A0N-K87

DDM-24W7P-1A0N-K87

DDM-36W4P-1A0N-K87

DDM-43W2P-1A0N-K87

DDM-47W1P-1A0N-K87

Combo D

(Sizes DE-DD)

Part Number

Metal Bracket With #4-40 Nut

DEM-5W1P-1A7N-K87

DAM-7W2P-1A7N-K87

DAM-11W1P-1A7N-K87

DAM-3W3P-1A7N-K87

DAM-3WK3P-1A7N-K87

DBM-5W5P-1A7N-K87

DBM-9W4P-1A7N-K87

DBM-13W3P-1A7N-K87

DBM-17W2P-1A7N-K87

DBM-21W1P-1A7N-K87

DCM-8W8P-1A7N-K87

DCM-13W6P-1A7N-K87

DCM-17W5P-1A7N-K87

DCM-21WA4P-1A7N-K87

DCM-25W3P-1A7N-K87

DCM-27W2P-1A7N-K87

DDM-24W7P-1A7N-K87

DDM-36W4P-1A7N-K87

DDM-43W2P-1A7N-K87

DDM-47W1P-1A7N-K87

Reader’s Resource

For contact cavity arrangements,

see page 222.

For P.C. hole patterns, see pages 260-262.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

Note: Performance class 3 standard, for performance class 2 add -A191. Example: DEM-5W1P-1A0N-A191-K87

Keyed.

DD Configuration

Engaging Face

Ø 3,05

(.120)

9,40

0,20

(.370

.008)

2,54

(.100)

5,08

(.200)

5,00

(.197)

10°

Ø 0,60

(.024)

2,54

(.100)

5,00

(.197)

9,40

0,20

(.370

.008)

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

66,93 (2.635)

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

52,81 (2.079)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

61,11 (2.406)

±0,13

(.005)

8,36 (.329)

11,07 (.436)

±0,38

(.015)

12,55 (.494)

15,37 (.605)

±0,25

(.010)

±0,368

(.0145)

±0,41

(.016)

±0,317

(.0125)

±0,25

(.010)

10,72 (.422) 6,693 (.2635)

—

1,206 (.0475)

—

10,72 (.422) 6,693 (.2635)

—

1,206 (.0475)

—

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

±0,25

(.010)

0,76 (.030)

0,99 (.039)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

Dimensions are shown in mm (inch)

Dimensions subject to change
