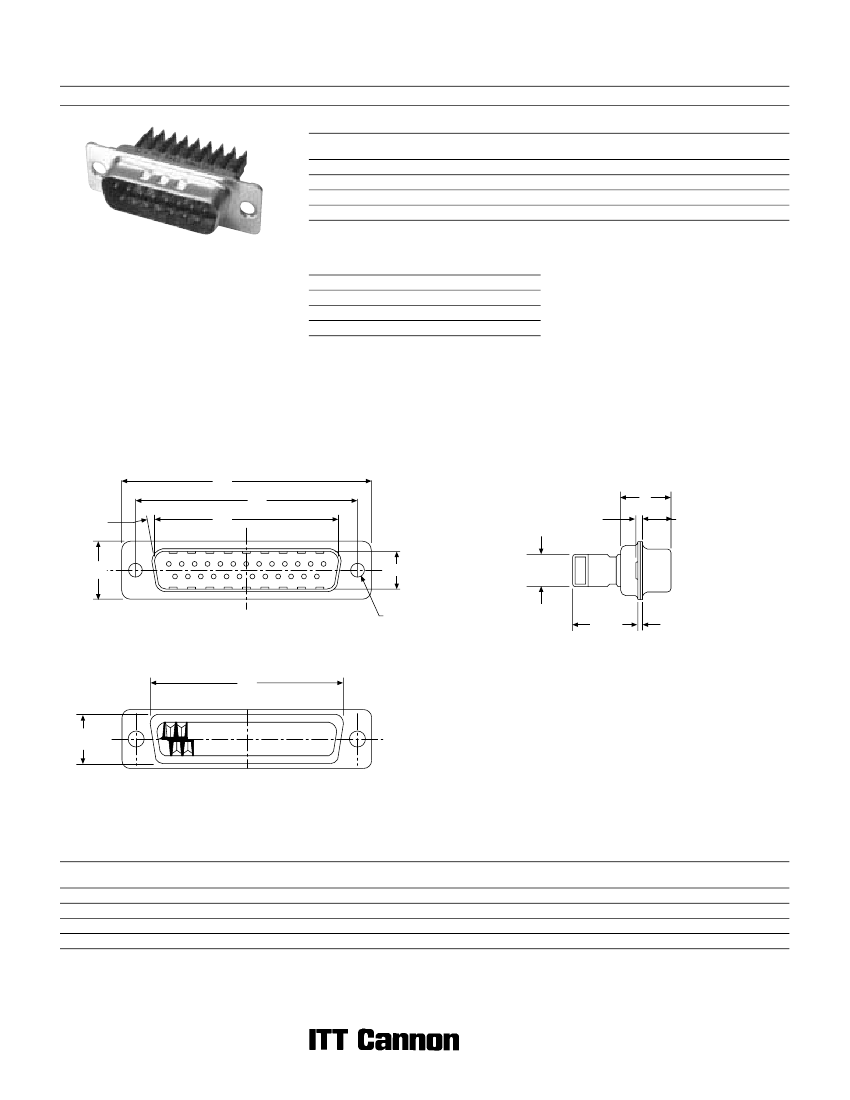

D Subminiature
Discrete Wire IDC
Plug
Part Numbers
Shell Size
DE
DA
DB
DC
Layout
9
15
25
37
Through Hole
DEW9P*
DAW15P*
DBW25P*
DCW37P*
Clinch Nut
#4-40 UNC
DEWE9P*
DAWE15P*
DBWE25P*
DCWE37P*
Through Hole
& Shield Can Kit
DEW9P*G
DAW15P*G
DBW25P*G
DCW37P*G
D*W
Clinch Nut #4-40 UNC
& Shield Can Kit
DEWE9P*G
DAWE15P*G
DBWE25P*G
DCWE37P*G
Selection Guide
For Product Features, Specifications,
Materials and Finishes, see pages 30-31.
Reader’s Resource
For contact cavity arrangements,
see page 224.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
Note: *Insert contact type. Example: DEW9P1.
For contacts with 0,76 m gold add -A176. Example: DEW9P1-A176.
For shield can kit, see page 40.
Contact Types*
1
2
3
Wire Accommodation
28 AWG/30 AWG
22 AWG/26 AWG
20 AWG/22 AWG
For more information, see pages 40-41.
Engaging Face
A
C
10°
B
1,33
(.052)
F
G MAX
1
13
E
14
25
D
7,00
(.276)
Ø 3,05 (.120)
14,50
(.571)
L
Rear Face
H
J
Dimensions
Shell Size
DEW
DAW
DBW
DCW
Layout
9
15
25
37
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,03 (2.048)
69,32 (2.729)
B
±0,12
(.005)
16,91 (.666)
25,54 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,12
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
8,35 (.329)
8,35 (.329)
8,35 (.329)
8,35 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,71 (.422)
10,71 (.422)
10,82 (.426)
10,82 (.426)
G
max.
6,05 (.238)
6,05 (.238)
5,99 (.236)
5,99 (.236)
H
±0,25
(.010)
19,27 (.759)
27,50 (1.083)
41,27 (1.625)
57,70 (2.272)
J
±0,25
(.010)
10,71 (.422)
10,71 (.422)
10,71 (.422)
10,71 (.422)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
38
Dimensions are shown in mm (inch)
Dimensions subject to change
