8866-0-15-15-30-84-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8866-0-15-15-30-84-04-0

8866-0-15-15-30-84-04-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size243KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8866-0-15-15-30-84-04-0 Overview

PCB Terminal, ROHS COMPLIANT

8866-0-15-15-30-84-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8866
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

2,39

3,68

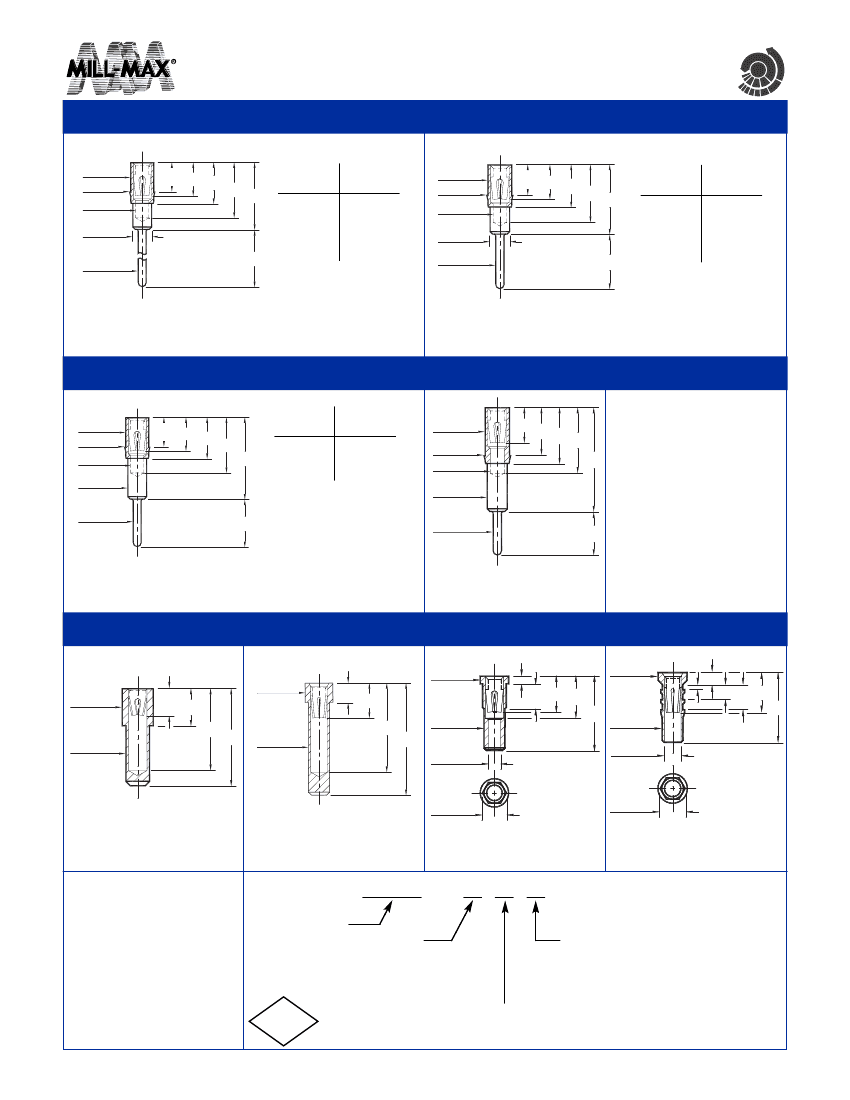

PIN RECEPTACLES

for 0,38 - 0,64 diameter pins

CHI

PINS

1802/3802/4030/8866

1,42 DIA.

1,47 DIA.

0,91 DIA.

HOLE

1,17 DIA.

1,91 2,11

2,39

3,68

1803/1805/1808/3805

Length

1,42 DIA.

1,47 DIA.

0,91 DIA.

HOLE

1,17 DIA.

0,46 DIA.

1,91 2,11

Basic Part

Number

4,19

Basic Part

Number

4,19

Length

1802-0

3802-0

8866-0

4030-0

3,18

4,19

19,69

20,70

1808-0

1803-0

1805-0

3805-0

2,54

3,68

5,41

9,98

0,51 DIA.

XXXX-0-15-XX-XX-XX-04-0

Press-fit in 1,45 mounting hole

XXXX-0-15-XX-43-XX-04-0

Press-fit in 1,45 mounting hole

1804/1806

1,42 DIA.

1,47 DIA.

0,91 DIA.

HOLE

1,17 DIA.

1,91

2,11

1807

Basic Part

Number

2,39

3,68

6,35

Length

1,42 DIA.

1,47 DIA.

0,91 DIA.

HOLE

1,17 DIA.

2,11

2,64

3,18

1804-0

1806-0

2,03

2,92

3,68

5,84

0,46 DIA.

2,54

180X-0-15-XX-43-XX-04-0

Press-fit in 1,45 mounting hole

1807-0-15-XX-43-XX-04-0

Press-fit in 1,45 mounting hole

8830

1,83 DIA.

1,57

2,18

4,83

1,4 DIA.

5,72

8363

1,83 DIA.

1,27

2,29

5,84

1,4 DIA.

7,37

4622

0,48

1,73 DIA.

1,52 2,18 2,54

4,52

1,27 DIA.

6252

1,83 DIA.

0,25

0,79

0,86

1,47

2,54

4,32

1,35 DIA.

0,76 DIA.

HOLE

1,09 DIA.

HOLE

1,42 DIA.

1,52 DIA.

8830-0-15-XX-22-XX-10-0

Solder mount in 1,45 min.

mounting hole

8363-0-15-XX-35-XX-10-0

Solder mount in 1,45 min.

mounting hole

4622-0-15-XX-30-XX-10-0

Hex press-fit in 1,35

plated thru hole

6252-0-15-XX-32-XX-10-0

Hex press-fit in 1,45

plated thru hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL



5,08μmTIN OVER NICKEL (RoHS)



0,25μm GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

2,54μm TIN/LEAD OVER NICKEL



2,54μm TIN OVER NICKEL (RoHS)



0,76μm GOLD OVER NICKEL (RoHS)

RoHS

SELECT CONTACT

#22, #30, #32 or #43

CONTACT (DATA ON PAGES 218, 219 & 220)

w w w. m i l l - m a x . c o m

140



516-922-6000
