PTZ15B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PTZ15B

PTZ15B: Description15 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size88KB，2 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric View All

PTZ15B Overview

15 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

PTZ15B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
package instruction	R-PDSO-C2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	10 Ω
JESD-30 code	R-PDSO-C2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Guideline	TS 16949
Nominal reference voltage	15 V
Maximum reverse current	10 µA
Reverse test voltage	11 V
surface mount	YES
technology	ZENER
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Voltage temperatureCoeff-Max	11.8 mV/°C
Maximum voltage tolerance	5.77%
Working test current	20 mA

Preview

Download Datasheet

View All

TH97/10561QM

TW00/17276EM

IATF 0060636

SGS TH07/1033

PTZ3.6B - PTZ36B

: 3.6 - 36 Volts

: 1.0 Watts

FEATURES :

* High peak reverse power dissipation

* High reliability

* Low leakage current

* Pb / RoHS Free

SURFACE MOUNT SILICON

ZENER DIODES

SMA

1.3

0.2

5.3

0.35

4.2

0.25

2.3

0.2

1.6

0.25

2.6

0.15

MECHANICAL DATA :

* Case : SMA Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Polarity : Color band denotes cathode end

* Mounting position : Any

* Weight : 0.060 gram (Approximately)

1.6

0.25

Dimensions in millimeters

MAXIMUM RATINGS

Rating at 25

C ambient temperature unless otherwise specified

Rating

Power Dissipation

Junction Temperature

Storage Temperature Range

Symbol

STG

Value

1.0

150

- 55 to + 150

Unit

ºC

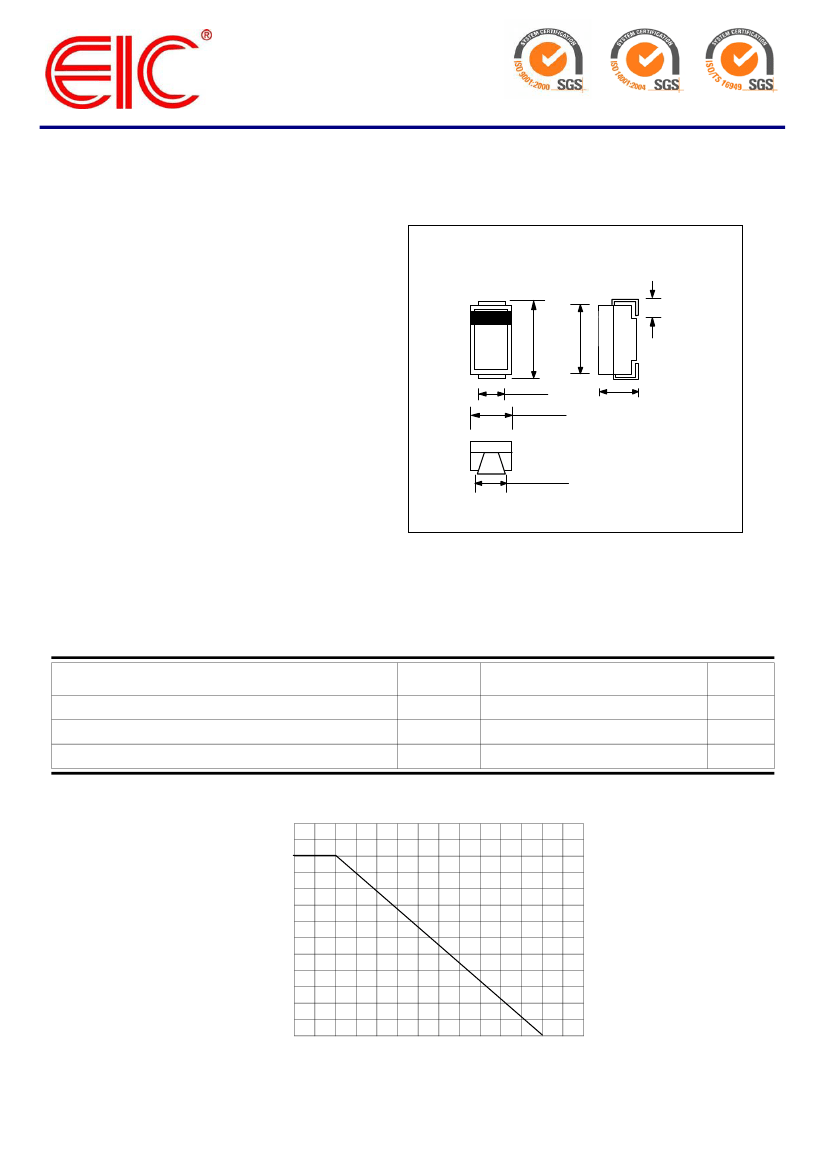

Fig. 1 POWER TEMPERATURE DERATING CURVE

1.2

POWER DISSIPATION, P

(W)

1.0

0.8

0.6

0.4

0.2

100

125

150

175

AMBIENT TEMPERATURE, Ta (ºC)

Page 1 of 2

Rev. 04 : September 18, 2008
