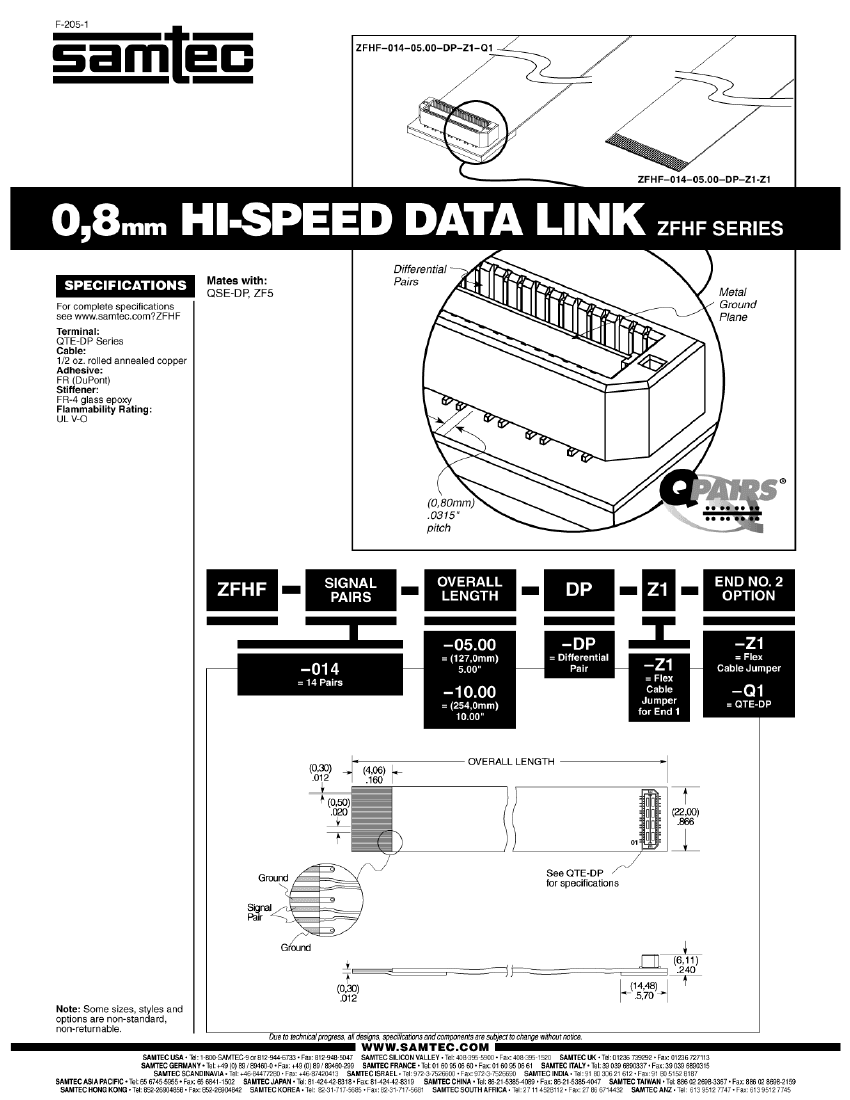

ZFHF-014-10.00-DP-Z1 datasheet, PDF

ZFHF-014-10.00-DP-Z1: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

ZFHF-014-10.00-DP-Z1 Overview

Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Other features	Q PAIRS
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	ZFHF
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	28
UL Flammability Code	94V-0

	ZFHF-014-10.00-DP-Z1	ZFHF-014-05.00-DP-Z1
Description	Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal
Maker	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant
Other features	Q PAIRS	Q PAIRS
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	ZFHF	ZFHF
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	28	28
UL Flammability Code	94V-0	94V-0
