10SQ030 thru 10SQ100
FEATURES
●
Metal
●
Guard
●
Low
SCHOTTKY BARRIER RECTIFIERS
REVERSE VOLTAGE -30 to 100Volts
FORWARD CURRENT -10.0 Amperes
R-6
of silicon rectifier , majority carrier conduction
ring for transient protection
power loss,high efficiency
current capability,low VF
surge capacity
●
High
●
High
1.0(25.4)
MIN
.052(1.3)
.048(1.2) DIA
●
Plastic package has UL flammability classification
94V-0
●
For
use in low voltage,high frequency inverters,free
wheeling,and polarity protection applications
.360(9.1)
.340(8.6)
2100
.360(9.1)
DIA
.340(8.6)
MECHANICAL DATA
●Case:
JEDEC R-6 molded plastic
●Polarity:
Color band denotes cathode
●Weight:
0.07 ounces , 2.1 grams
●Mounting
position: Any
1.0(25.4)
MIN
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current@Tc=95
℃
Peak Forward Surage Current 8.3ms single half
sine-wave super imposed on rated load(JEDEC
Method)
Peak Forward Voltage at 10A DC(Note1)
Maximum DC Reverse Current @Tj=25℃
at Rated DC Bolcking Voltage @Tj=100℃
Tyical Junction Capacitance (Note2)
Tyical Thermal Resistance (Note3)
Operating Temperature Range
Storage Temperature Range
NOTES:1.300us Pulse Width, 2%Dudy Cycle.
SYMBOL 10SQ030 10SQ035 10SQ040 10SQ045 10SQ050 10SQ060 10SQ080 10SQ100 UNIT
V
RRM
V
RMS
V
DC
I
(AV)
30
21
30
35
24.5
35
40
28
40
45
31.5
45
10
50
35
50
60
42
60
80
56
80
100
70
100
V
V
V
A
I
FSM
V
F
I
R
C
J
R
θJC
T
J
T
STG
0.55
275
0.7
0.5
50
450
3.0
-55 to+150
-55 to+150
0.8
A
V
mA
PF
℃/w
℃
℃
2.Measured at 1.0 MHZ and applied reverse voltage of 4.0VDC.
3.Thermal Resistance Junction to Case.
Web Site:
WWW.PS-PFS.COM
10SQ030 thru 10SQ100

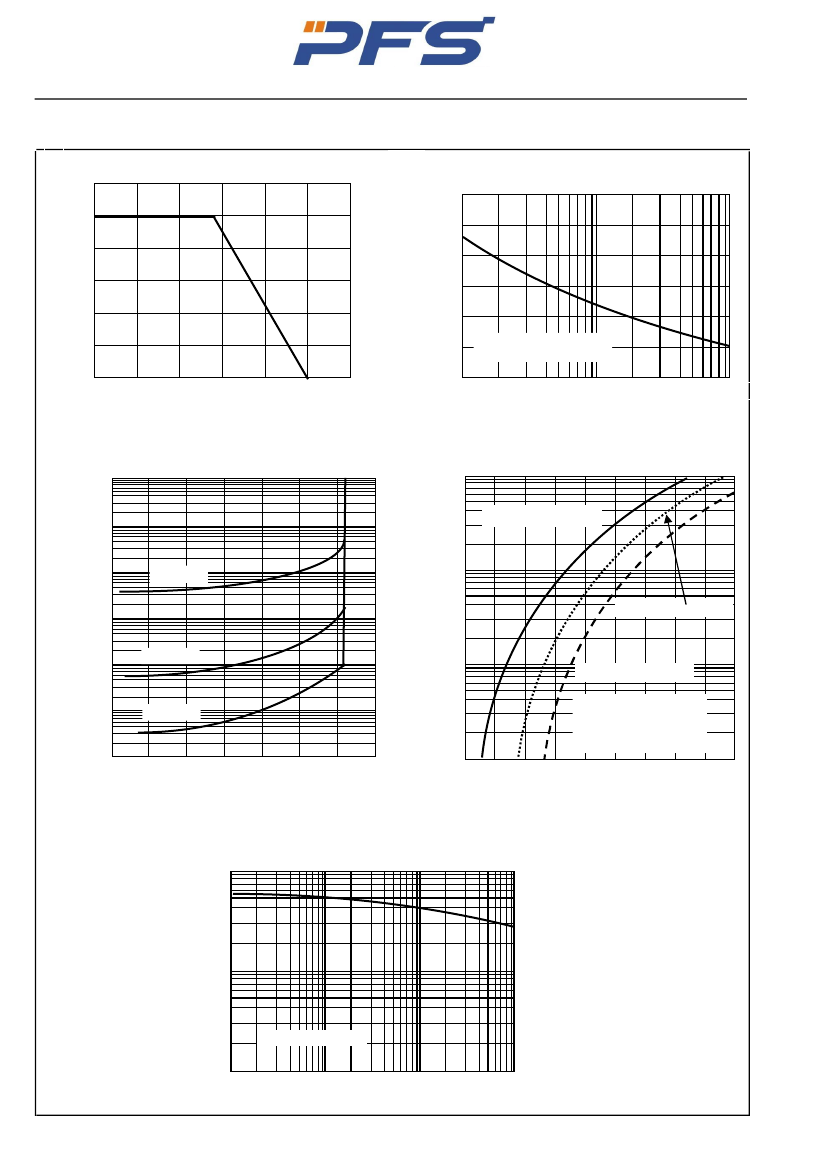

AVERAGE FORWARD CURRENT AMPERES
12
10
8
6
4
2
SCHOTTKY BARRIER RECTIFIERS
REVERSE VOLTAGE -30 to 100Volts
FORWARD CURRENT -10.0 Amperes
PEAK FORWARD SURGE CURRENT AMPERES
FIG.2-MAXIMUM NON-REPETITVE SURGE
360
300
240
180
120
60
0
1
2
5
10
20
50
100
8.3Single Half-Sine-Wave
(JEDEC METOD)
FIG.1-FORWARD CURRENT DERATING CURVE
0
20
50
75
100
125
150
175
CASE TEMPERATURE
℃
FIG.3-TYPICAL REVERSE CHARACTERISTICS
100
NUMBER OF CYCLES AT 60Hz
FIG.4-TYPICAL FORWARD CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT(mA)
10SQ030 to 10SQ045
100
INSTANTANEOUS FORWARD CURRENT(A)
10
TJ=100℃
10
10SQ050 to10SQ060
1
TJ=50℃
0.1
1
10SQ080 to10SQ100
TJ=25℃
PULSE WIDTH 300US
2%DUTY CYCLE
0.01
TJ=25℃
0.1
0
20
50
75
100
125
150
175
0.2 0.3
0.4
0.5
0.6
0.7
0.8
0.9 1.0 1.2
PERCENT OF RATED PEAK REVERSE VOLTAGE(%)
INSTANTANEOUS FORWARD VOLTAGE
FIG.5-TYPICAL JUNCTION CAPACITANCE
1000
CAPACITANCE,(pF)
100
T
J
=25℃
，f=1MHZ
10
0.1
1
4
10
100
REVERSE VOLTAGE VOLTS
Web Site:
WWW.PS-PFS.COM
