L-14C47NKT4T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> L-14C47NKT4T

L-14C47NKT4T: DescriptionGeneral Purpose Inductor; CategoryPassive components inductor; File Size507KB，3 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com

Download Datasheet Parametric View All

L-14C47NKT4T Overview

General Purpose Inductor

L-14C47NKT4T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Johanson Technology
Reach Compliance Code	compliant
ECCN code	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

RF C

ERAMIC

HIP

NDUCTORS

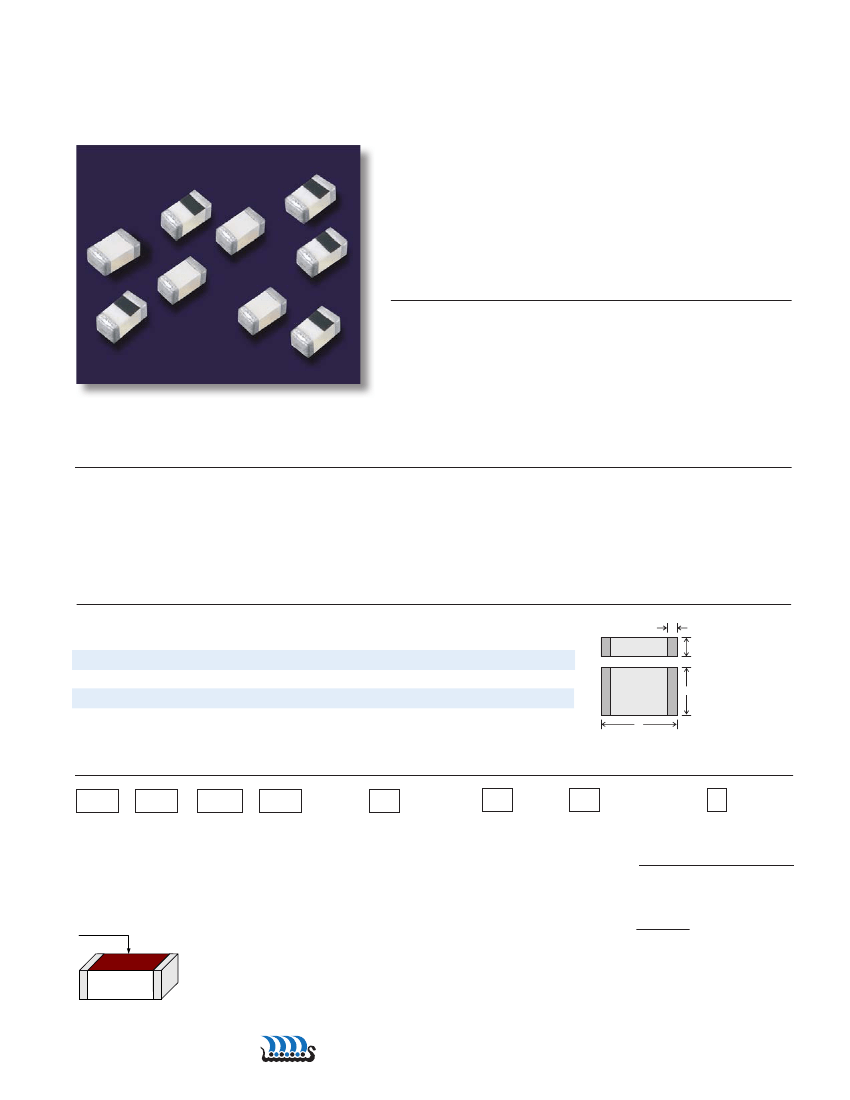

High frequency multi-layer chip inductors feature a monolithic body

made of low loss ceramic and high conductivity metal electrodes to

achieve optimal high frequency performance.

These RF chip inductors are compact in size and feature lead-free tin

plated nickel barrier terminations and tape and reel packaging which

makes them ideal for small size/high volume wireless applications.

ppliCaTionS

& F

eaTuReS

• CELL/PCS Modules

• Broadband Components

• RF Tranceivers

• Wireless LAN

• RFID

Polarity Half-Marked Inductors (0201 only)

• RoHS Compliant (Standard, “V” Code)

• Sn/Pb Terminations Optional (“T” Code)

RoDuCT

ange

ummaRy

EIA SIZE (mm)

0201 (0603)

0402 (1005)

0603 (1608)

SIZE CODE

L-05

L-07

L-14

L RANGE

0.6 - 39 nH

1.0 - 120 nH

1.0 - 220 nH

Q FACTOR (Min.)

4 (100 MHz)

8 (100 MHz)

12 (100 MHz)

SRF (Typ.)

>21 GHz (1.0 nH)

>23 GHz (1.0 nH)

TEMPERATURE

-40°C to +100°C

ECHANICAL

HARACTERISTICS

0201 (0603)

Inches

0402 (1005)

Inches

0603 (1608)

Inches

E/B

Length

Width

Thickness

End Band

.024 ±.001” (0.6 ±0.03) .039 ±.004” (1.00 ±.10) .063 ±.006” (1.60 ±.15)

.012 ±.001” (0.3 ±0.03) .020 ±.004” (0.50 ±.10) .031 ±.006” (0.80 ±.15)

.006 ±.002” (0.15 ±0.05) .009 ±.004” (0.23 ±.10) .012 ±.008” (0.30 ±.20)

E/B

OW TO

RDER

L-

DEVICE

Inductor

SIZE

05 = 0201

07 = 0402

14 = 0603

TYPE

B = Polarity

Half-Marked

(all 0201)

C = 0402 and

0603 (see

“Marking”)

10N

VALUE

See Table

± 0.2 nH

± 0.3 nH

± 5%

± 10%

TOLERANCE

TERMINATION

MARKING

4 = No Marking

(all 0603)

Tape and Reel

PACKAGING

Reel

Qty

7” 15,000

7” 10,000

7”

4,000

V =

Ni/Sn

≤

1.0 nH

T = Ni / SnPb

1.0 to 5.6 nH

6.8 nH and above

3.3 nH and above

Part number written: L-07C10NJV6T

Size Code Tape

0201

Paper

6 = Orientation

0402

Paper

Mark

0603

Paper

(all 0201 and 0402*)

Bulk (Loose Pcs.)

Size

All

Code

Orientation Full Marking (all 0402)

*Please note that all 0402 inductors (L-07C) have orientation full marking only.

www.johansontechnology.com
