LF-3500: DescriptionThree Phase EMI Filter, 250V, 60HzHz, ROHS COMPLIANT PACKAGE; CategoryAnalog mixed-signal IC filter; File Size204KB，2 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LF-3500 Overview

Three Phase EMI Filter, 250V, 60HzHz, ROHS COMPLIANT PACKAGE

LF-3500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NEC TOKIN ( KEMET Corporation )
Reach Compliance Code	unknown
Certification	TUV
filter type	THREE PHASE EMI FILTER
high	60 mm
Minimum insulation resistance	300 MΩ
Maximum leakage current	1.2 mA
length	180 mm
Installation type	PANEL MOUNT
working frequency	60Hz Hz
Maximum operating temperature	55 °C
Minimum operating temperature	-25 °C
physical size	L180.0XB129.0XH60.0 (mm)/L7.087XB5.079XH2.362 (inch)
Rated current	50 A
Rated voltage	250 V
width	129 mm

Preview

Download Datasheet

View All

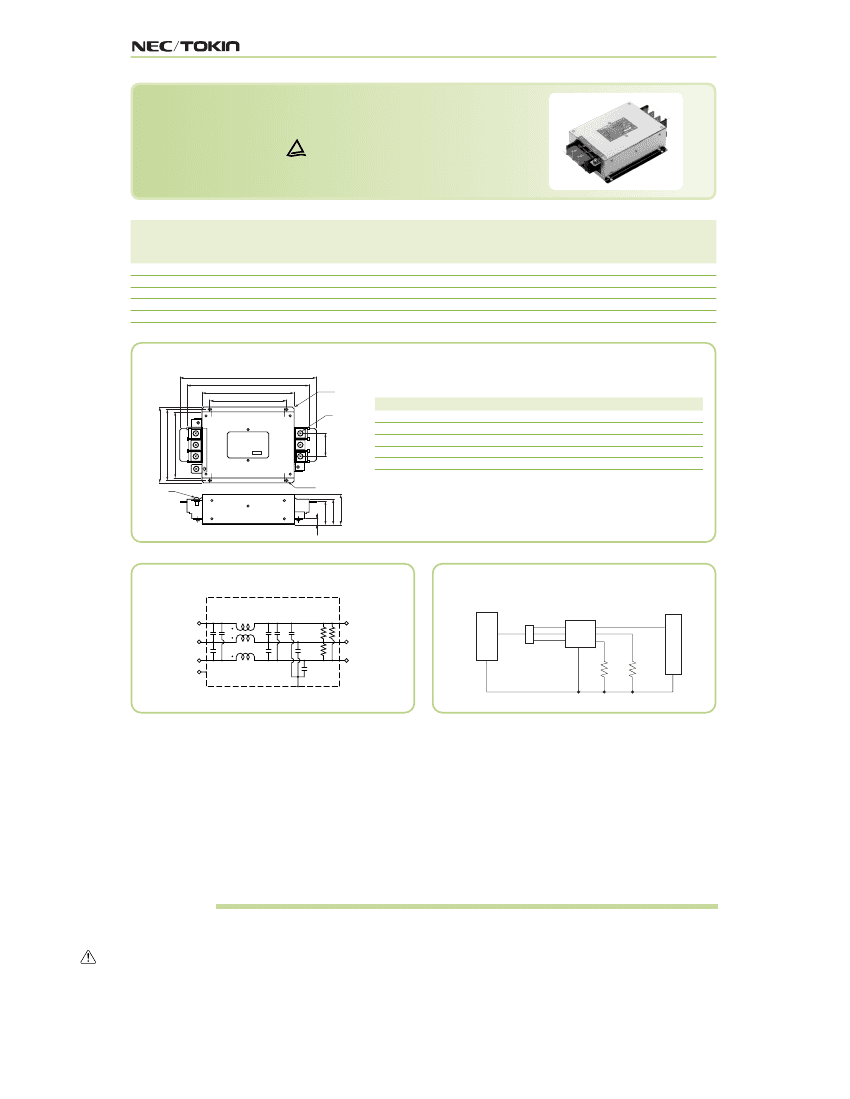

Casing Type

Metal box

LF Series

Compliance with CE Marking

(LF-3000 Series)

[RoHS Compliant]

TÜV Rheinland

Model

Rated voltage Rated current

AC/DC (V)

AC/DC (A)

Withstanding Insulation resistance

voltage 1 min.,

500VDC 1 min.,

line to ground

AC (V)

(M ) min.

Leakage

Self-

Voltage drop temperature

current

50Hz,

250V/60Hz,

rise

(V) max.

(mA) max.

(K) max.

Operating

temperature

range

(˚C)

Certified

standard

LF-3200

LF-3300

LF-3400

LF-3500

LF-3600

250

2000

300

1.2

1.5

–25 to +55

TÜV

Shape and Dimensions

A±0.5

4-C2

Model

150

300

180

330

219

237

387

45.5

58.5

48.5

89.5

47.5

115

NOISE FILTER

MADE IN JAPAN

4-ø6

OUT

LF-3200

LF-3300

LF-3400

LF-3500

LF-3600

247 90 100 110

264 129 139 149

414 180 200 220

G±1.0

F±0.5

Circuit Diagram

[mm]

Measuring Circuit

bCommon

mode

Oscillator

P: Power divider

: 50

Noise Filters VOL.04

●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC Tokin for updated product data.

●Please request for a specification sheet for detailed product data prior to the purchase.

●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.

2006.03.22 P0722MCNF10VOL04E

Level meter

EMI/EMC

filter

LF-3500 Related Products

	LF-3500	LF-3600	LF-3400	LF-3300	LF-3200
Description	Three Phase EMI Filter, 250V, 60HzHz, ROHS COMPLIANT PACKAGE	Three Phase EMI Filter, 250V, 60HzHz, ROHS COMPLIANT PACKAGE	Three Phase EMI Filter, 250V, 60HzHz, ROHS COMPLIANT PACKAGE	Three Phase EMI Filter, 250V, 60HzHz, ROHS COMPLIANT PACKAGE	Three Phase EMI Filter, 250V, 60HzHz, ROHS COMPLIANT PACKAGE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Certification	TUV	TUV	TUV	TUV	TUV
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	60 mm	115 mm	75 mm	60 mm	60 mm
Minimum insulation resistance	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ
Maximum leakage current	1.2 mA	1.2 mA	1.2 mA	1.2 mA	1.2 mA
length	180 mm	330 mm	180 mm	180 mm	180 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz
Maximum operating temperature	55 °C	55 °C	55 °C	55 °C	55 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L180.0XB129.0XH60.0 (mm)/L7.087XB5.079XH2.362 (inch)	L330.0XB180.0XH115.0 (mm)/L12.992XB7.087XH4.528 (inch)	L180.0XB129.0XH75.0 (mm)/L7.087XB5.079XH2.953 (inch)	L180.0XB90.0XH60.0 (mm)/L7.087XB3.543XH2.362 (inch)	L180.0XB90.0XH60.0 (mm)/L7.087XB3.543XH2.362 (inch)
Rated current	50 A	60 A	40 A	30 A	20 A
Rated voltage	250 V	250 V	250 V	250 V	250 V
width	129 mm	180 mm	129 mm	90 mm	90 mm
