DSM-VT-C-37-P-S-TB datasheet, PDF

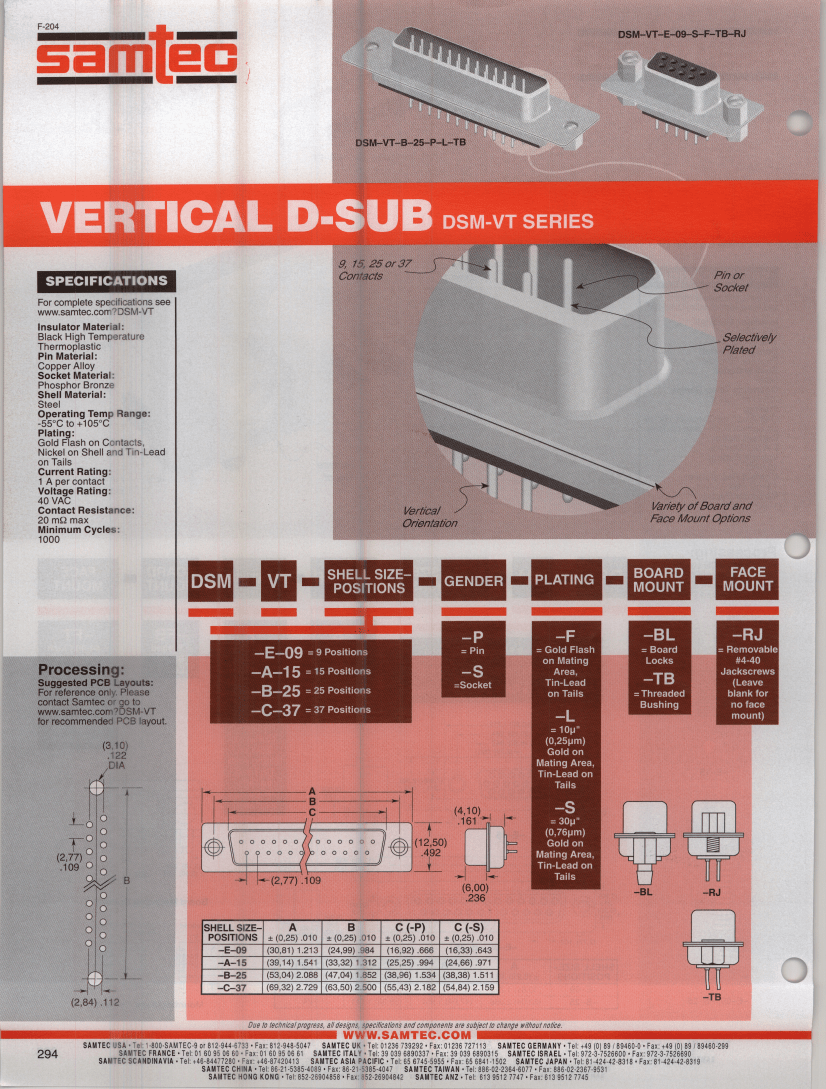

DSM-VT-C-37-P-S-TB: DescriptionD Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size4MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

DSM-VT-C-37-P-S-TB Overview

D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.492 inch
subject depth	0.161 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DSM-VT
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Housing size	4/C
Terminal length	0.165 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
