DIP Type
SBCP Coils
• Tape and Reel Dimensions (see page 58)
bSBCP-85
Series (SBCP-85H)
Model
852R2H
853R3H
854R7H
856R8H
85100H
85150H
85220H
85330H
85470H
85680H
85101H
85151H
85221H
85331H
85471H
85681H
85102H
Inductance
L (µH)
at 10 kHz, 1mA
DC resistance
( )
max.
Rated current
(A)
∆T=20˚C
Current (Reference value)
(A)
∆T=40˚C
L change rate
–10%
8.90
7.70
6.10
5.00
4.00
3.30
2.60
2.20
1.90
1.50
1.30
1.00
0.88
0.72
0.58
0.50
0.42
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10±20%
15±20%
22±20%
33±20%
47±20%
68±10%
100±10%
150±10%
220±10%
330±10%
470±10%
680±10%
1000±10%
0.03
0.04
0.05
0.06
0.08
0.11
0.16
0.27
0.34
0.49
0.69
1.10
1.36
2.15
2.85
4.18
6.90
3.30
2.50
2.30
2.00
1.80
1.40
1.20
0.90
0.83
0.70
0.57
0.46
0.36
0.30
0.27
0.21
0.17
4.60
3.50
3.20
2.80
2.50
1.90
1.60
1.20
1.10
0.98
0.79
0.64
0.50
0.42
0.37
0.29
0.23
bSBCP-87
Series (SBCP-87H)
Model
871R0H
871R5H
872R2H
873R3H
874R7H
876R8H
87100H
87150H
87220H
87330H
87470H
87680H
87101H
87151H
87221H
87331H
87471H
87681H
87102H
Inductance
L (µH)
at 10 kHz, 1mA
DC resistance
( )
max.
Rated current
(A)
∆T=20˚C
Current (Reference value)
(A)
∆T=40˚C
L change rate
–10%
10.20
7.00
6.10
4.80
4.30
3.40
2.40
2.20
1.80
1.50
1.20
1.00
0.87
0.70
0.57
0.47
0.39
0.32
0.27
1.0±20%
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10±20%
15±20%
22±20%
33±20%
47±20%
68±10%
100±10%
150±10%
220±10%
330±10%
470±10%
680±10%
1000±10%
0.02
0.02
0.03
0.03
0.03
0.04
0.05
0.06
0.08
0.12
0.15
0.19
0.30
0.39
0.57
0.92
1.30
1.66
2.82
4.50
4.20
4.00
3.20
3.20
2.80
2.30
2.10
1.90
1.50
1.30
1.16
0.90
0.79
0.65
0.50
0.42
0.33
0.25
6.30
5.80
5.60
4.40
4.40
3.90
3.20
2.90
2.60
2.10
1.80
1.60
1.20
1.10
0.91
0.70
0.58
0.46
0.35
Choke Coils VOL.02
50
DIP Type
bSBCP-80
Series (SBCP-80H)
Model
801R5H
802R2H
803R3H
804R7H
806R8H
80100H
80150H
80220H
80330H
80470H
80680H
80101H
80151H
80221H
80331H
80471H
80681H
80102H
Inductance
L (µH)
at 10 kHz, 1mA
DC resistance
( )
max.
Rated current
(A)
∆T=20˚C
Current (Reference value)
(A)
∆T=40˚C
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10±20%
15±20%
22±20%
33±20%
47±10%
68±10%
100±10%
150±10%
220±10%
330±10%
470±10%
680±10%
1000±10%
0.02
0.03
0.04
0.04
0.05
0.05
0.08
0.08
0.09
0.13
0.16
0.35
0.41
0.52
0.75
0.95
1.40
1.89
4.50
4.00
3.60
3.30
3.30
2.90
2.50
2.40
2.10
1.90
1.70
1.10
1.00
0.90
0.70
0.65
0.50
0.40
6.30
5.60
5.00
4.60
4.60
4.00
3.50
3.30
2.90
2.60
2.30
1.50
1.40
1.20
0.98
0.91
0.70
0.56
L change rate
–10%
13.50
11.70
9.20
7.60
6.50
5.30
4.00
3.40
2.70
2.20
1.80
1.60
1.20
1.00
0.85
0.71
0.58
0.48
bSBCP-11
Series (SBCP-11H)
Model
111R2H
111R5H
112R2H
113R3H
114R7H
116R8H
11100H
11150H
11220H
11330H
11470H
11680H
11101H
11151H
11221H
11331H
11471H
11681H
11102H
Inductance
L (µH)
at 10 kHz, 1mA
DC resistance
( )
max.
Rated current
(A)
∆T=20˚C
Current (Reference value)
(A)
∆T=40˚C
L change rate
–10%
30.90
25.30
21.40
18.50
14.60
12.10
9.60
7.90
6.40
5.40
4.40
3.60
3.00
2.40
2.00
1.60
1.40
1.10
0.96
1.2±20%
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10±20%
15±20%
22±20%
33±20%
47±20%
68±10%
100±10%
150±10%
220±10%
330±10%
470±10%
680±10%
1000±10%
0.02
0.02
0.02
0.02
0.03
0.03
0.04
0.05
0.06
0.07
0.10
0.12
0.19
0.26
0.40
0.60
0.76
1.00
1.70
5.50
5.00
4.70
4.40
4.10
3.60
3.10
2.80
2.50
2.30
2.00
1.80
1.30
1.10
0.95
0.74
0.66
0.55
0.42
7.90
7.20
6.70
6.30
5.80
5.10
4.50
4.10
3.60
3.30
2.90
2.60
1.90
1.60
1.30
1.00
0.93
0.77
0.60
• Operating temperature range: –20 to +105˚C (incl. coil heat)
• Storage conditions: –5 to +40˚C, 40–60% RH (in tape status), –20˚C to +85˚C (in bulk status)
• Do NOT expose to direct sunlight (JISC 08)
Numbering System
SBCP - 85 - 101 H B
Series
Core size (Outer size x height)
Model numbers and Core sizes
The model number (5 digits) consists of core size and inductance as shown below.
Model
SBCP-85
H
SBCP-87
H
SBCP-80
H
SBCP-11
H
Core size [mm]
ø8.0 5.0
ø8.0 7.5
ø8.0 10.0
ø11.0 11.0
Inductance: 10 10
1
=100 (µH)
Presence of external tube: H shows presence.
Packaging type: No indication for tape type.
“B” indicates bulk type.
*The presence of an external tube may not be indicated on the surface of sample products.
Choke Coils VOL.02
51
DIP Type

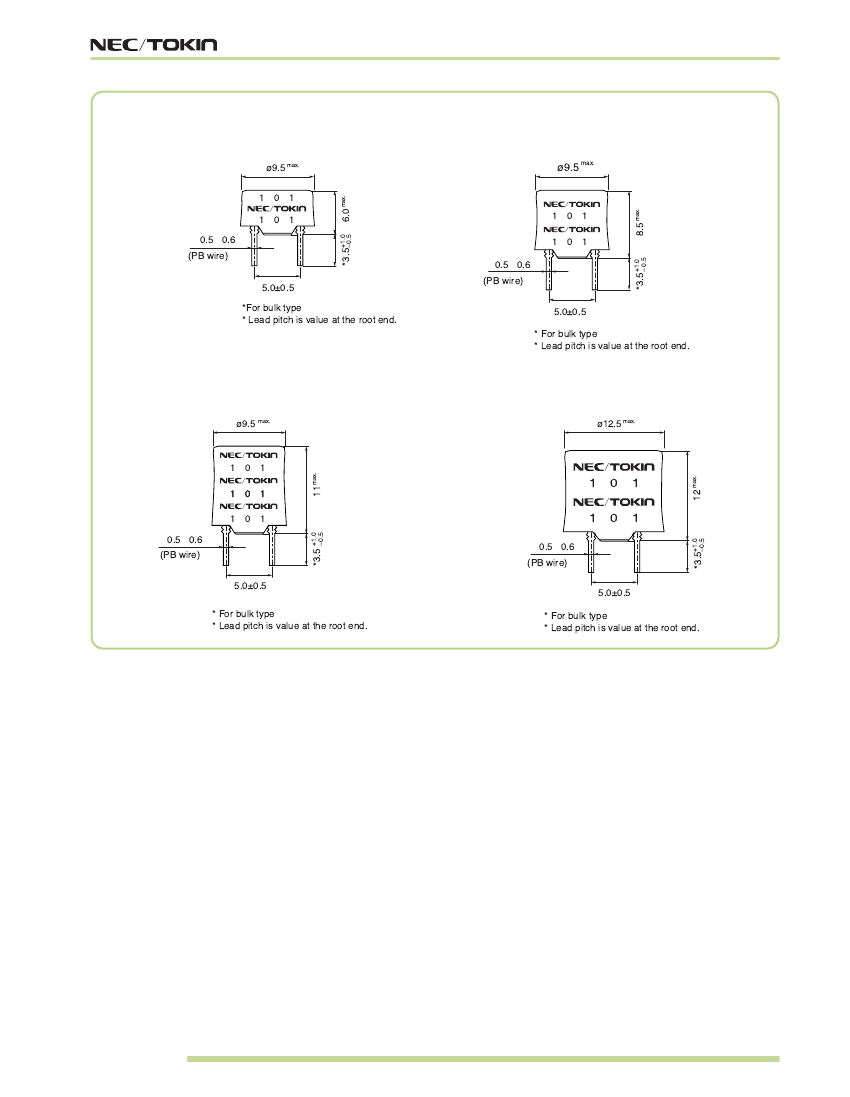

Shape and Dimensions
bSBCP-85
Series (SBCP-85H)
¿9.5
max.
bSBCP-87
Series (SBCP-87H)
¿9.5
max.
6.0
max.
1
1
0
0
1
1
1
0
1
0.6
*
3.5
Ð0.5
+1.0
0.5
1
0
1
0.6
5.0±0.5
*For bulk type
* Lead pitch is value at the root end.
(PB wire)
5.0±0.5
* For bulk type
* Lead pitch is value at the root end.
bSBCP-80
Series (SBCP-80H)
¿9.5
max.
bSBCP-11
Series (SBCP-11H)
¿12.5
max.
max.
1
0
1
+1.0
0.5
*3.5
Ð 0.5
(PB wire)
8.5
max
.
11
1
0
1
1
0
1
1
0
1
+1.0
Ð0.5
1
0
1
*3.5
Ð0.5
+1.0
0.5
0.6
(PB wire)
*3.5
0.5
0.6
(PB wire)
5.0±0.5
5.0±0.5
* For bulk type
* Lead pitch is value at the root end.
* For bulk type
* Lead pitch is value at the root end.
12
max.
[mm]
Choke Coils VOL.02
52
