DDTC143ECA-13-F datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> DDTC143ECA-13-F

DDTC143ECA-13-F: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size238KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DDTC143ECA-13-F Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-3

DDTC143ECA-13-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diodes
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BUILT IN BIAS RESISTANCE RATIO IS 1, HIGH RELIABILITY
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	20
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Guideline	AEC-Q101
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

Preview

Download Datasheet

View All

DDTC(R1 = R2 SERIES) CA

NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Features



Epitaxial Planar Die Construction

Complementary PNP Types Available (DDTA)

Built-In Biasing Resistors, R1

½R2

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Part Number

DDTC123ECA

DDTC143ECA

DDTC114ECA

DDTC124ECA

DDTC144ECA

DDTC115ECA

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.008 grams (approximate)

R1, R2 (NOM)

2.2KΩ

4.7KΩ

10KΩ

22KΩ

47KΩ

100KΩ

OUT

SOT23

IN B

C OUT

GND(0)

Top View

GND (0)

Device Schematic

Equivalent Inverter Circuit

Ordering Information

(Notes 4 & 5)

Product

DDTC123ECA-7-F

DDTC123ECAQ-7-F

DDTC143ECA-7-F

DDTC143ECA-13-F

DDTC114ECA-7-F

DDTC114ECAQ-7-F

DDTC114ECAQ-13-F

DDTC124ECA-7-F

DDTC144ECA-7-F

DDTC144ECAQ-7-F

DDTC144ECAQ-13-F

DDTC115ECA-7-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Marking

N04

N08

N13

N17

N20

N24

Reel size (inches)

Tape width (mm)

Quantity per reel

3,000

10,000

3,000

10,000

3,000

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

NXX = Product Type Marking Code, See Table above

YM = Date Code Marking

Y = Year (ex: X = 2010)

M = Month (ex: 9 = September)

NXX

Date Code Key

Year

2002

Code

Month

Code

Jan

2003

2004

Feb

2005

Mar

2006

Apr

2007

2008

2009

Jun

2010

Jul

2011

2012

2013

Sep

2014

Oct

2015

2016

2015

Dec

May

Aug

Nov

DDTC(R1 = R2 SERIES) CA

Document number: DS30329 Rev. 12 - 2

1 of 5

www.diodes.com

November 2013

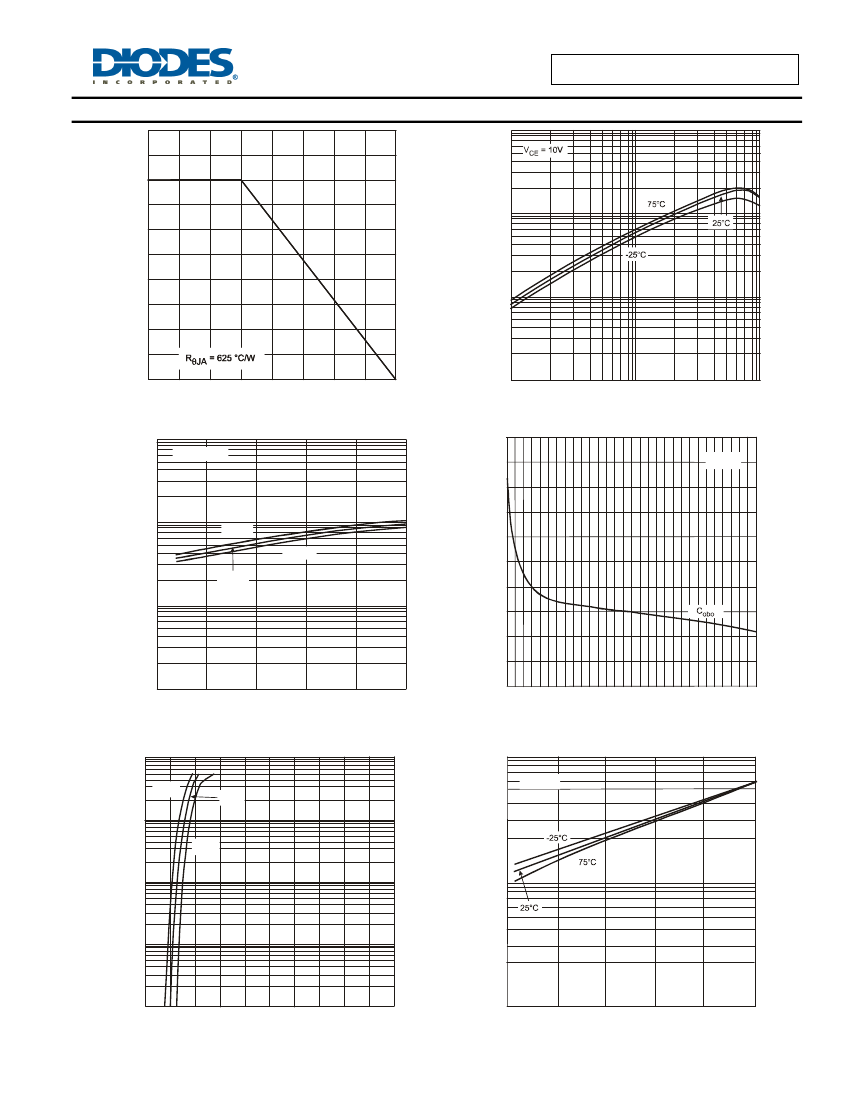

DDTC(R1 = R2 SERIES) CA

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DDTC(R1 = R2 SERIES) CA

Document number: DS30329 Rev. 12 - 2

5 of 5

www.diodes.com

November 2013
