NISCXI-1127 Overview

Low-Cost 6 1⁄2-Digit Multimeters

Preview

Download Datasheet

View All

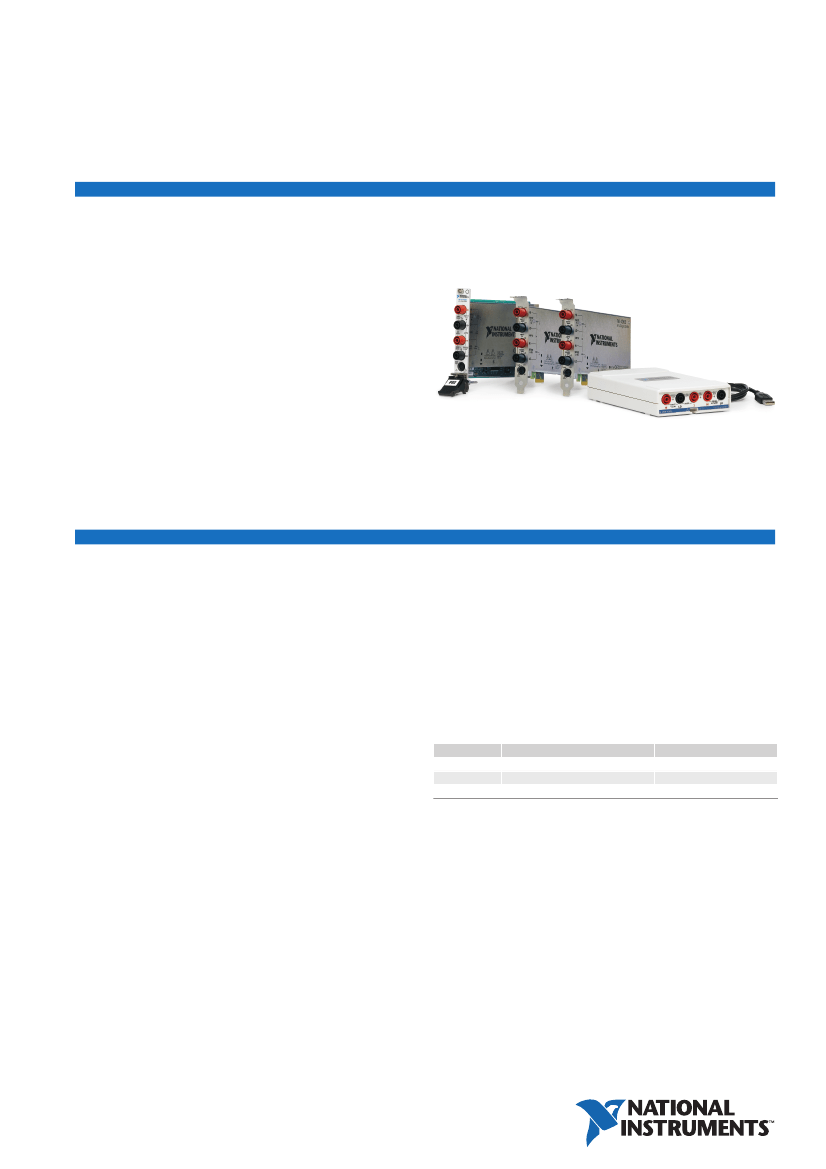

Low-Cost 6

⁄

-Digit Multimeters

NI PXI-4065, NI PCI-4065, NI PCIe-4065,

NI USB-4065

NEW!

• Basic 6

⁄

-digit digital multimeters

(DMMs) for PXI, PCI, PCI Express,

and USB

• 7 built-in measurement modes –

AC/DC voltage, AC/DC current, 2- or

4-wire resistance, and diode test

• ±300 VDC/V

rms

isolation

• 10 readings/s maximum at 6

⁄

digits

• Ideally suited for OEMs, educational

labs, and production test

For increased accuracy, resolution,

measurement speed, and functionality,

consider NI 407x FlexDMM devices.

PXI-4065

Operating Systems

• Windows Vista/XP/2000

Recommended Software

•

LabVIEW

LabVIEW Real-Time Module

LabWindows

™

/CVI

Measurement Studio

LabVIEW SignalExpress

Other Compatible Software

• Microsoft Visual Basic

• C/C

Driver Software (included)

• NI-DMM

• NI-DMM Soft Front Panel

• DMM/Switch Express VI

only

Overview

National Instruments 4065 devices are low-cost 6

⁄

-digit PXI, PCI,

PCI Express, and USB DMMs for the measurement of voltage, current,

and resistance, or for diode test. They are ideally suited for OEMs,

educational laboratories, or other cost-conscious test and measurement

facilities. With ±300 VDC/V

rms

of isolation, current measurements up to

3 A, and 2- or 4-wire resistance measurements, NI 4065 DMMs provide

a complete multimeter solution for basic 6

⁄

-digit measurement needs.

For higher-performance requirements, consider using NI 407x PCI

and PXI FlexDMM devices. They combine industry-leading accuracy and

resolution at 6

⁄

and 7

⁄

digits with 1.8 MS/s digitizer capability for faster

sampling rates in production test environments.

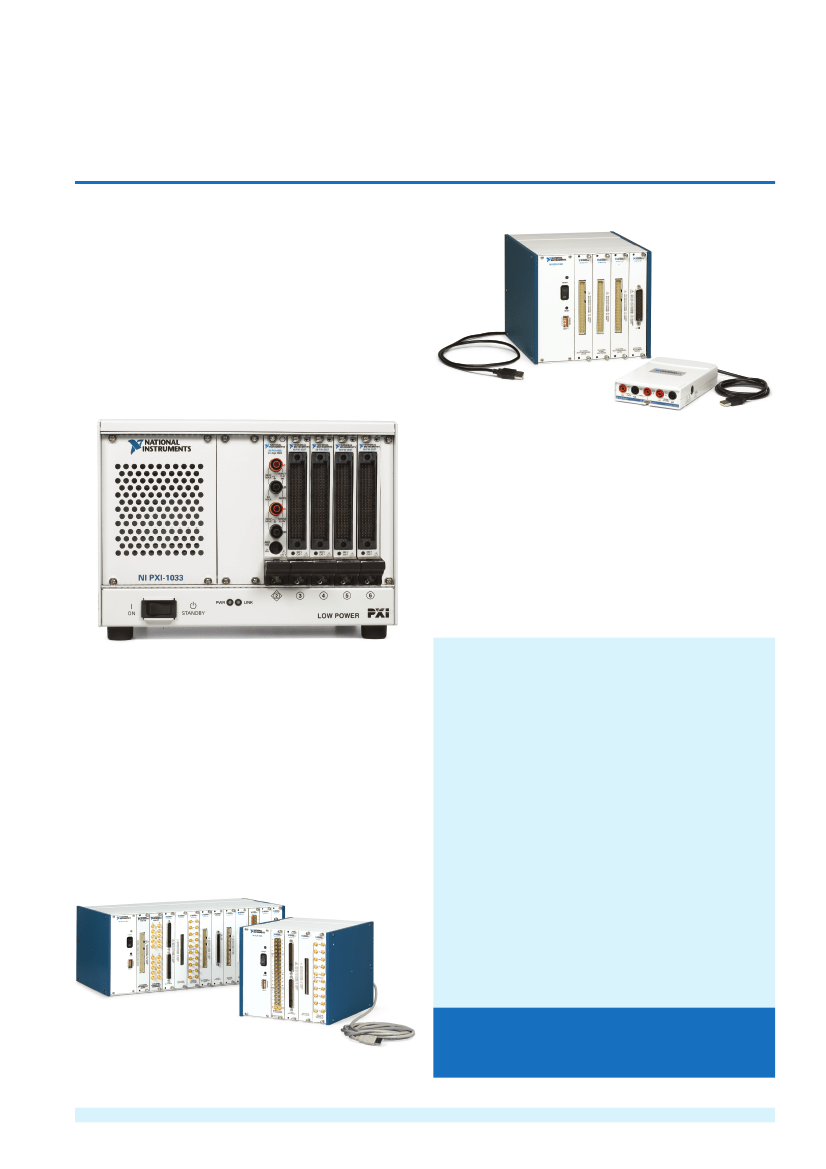

Efficient Mixture of Accuracy, Resolution,

and Speed

NI 4065 DMMs offer 6

⁄

digits of resolution at up to 10 readings/s and

up to 3000 readings/s at lower resolutions. By trading off speed for

resolution, you can maximize measurement quality and throughput.

NI 4065 DMMs also offer comparable accuracy over a 24-hour cycle

or one year of an external calibration to other GPIB, LAN, or USB-based

Digits

⁄

Resolution (bits)

Reading Rate (S/s)

1500

3000

Table 1. NI 4065 Reading Rates versus Resolution

Flexible Software Improves Usability

You can program NI 4065 DMMs through a standard application

programming interface (API) in NI LabVIEW and LabWindows/CVI or

Microsoft programming languages. For simple benchtop measurements,

the NI-DMM Soft Front Panel provides the common display and interface

found on traditional DMMs to make simple measurements quickly and

easily. When combined with switches, the DMM/Switch Express VI can

rapidly develop a high-channel-count data-logging system with a single

function call in LabVIEW. In LabVIEW SignalExpress, the DMM/Switch

Express VI sets up a live data logger without any programming.

⁄

-digit DMMs on the market. With an NI 4065, there is no need to

sacrifice basic measurement quality for a low selling price.

For higher resolution, accuracy, or speed, consider using one of the

NI 407x 6

⁄

-digit FlexDMM devices. The PCI-4070 can accurately measure

100 readings/s at 6

⁄

digits with 31 ppm of DC voltage accuracy over a

two-year period. This represents a 3X improvement over the NI 4065

DMMs for accuracy and noise. The PXI-4071 is also available with

measurements at 7

⁄

digits up to 1000 V. For more information on the

complete line of National Instruments DMMs, visit

ni.com/multimeters.

Low-Cost 6

⁄

-Digit Multimeters

Maximum common-mode voltage......................................... 300 VDC or V

rms

Input terminals....................................................................... Gold-plated low-thermal emf solid copper

Dimensions ............................................................................ PXI: 3U, 1 slot, PXI/CompactPCI module; 21.6 by 2.0 by 13.0 cm (8.5 by 0.8 by 5.1 in.)

PCI/PCI Express: 1 slot, PCI or PCI Express board; 18.3 by 12 cm (7.2 by 4.72 in.)

USB: 17.8 by 10.4 by 3.3 cm (7.0 by 4.1 by 1.3 in.)

Operating temperature .......................................................... PXI: 0 to 55 °C; PCI/PCI Express: 0 to 40 °C; USB: 0 to 45°C

Storage temperature.............................................................. -40 to 70 °C

Relative humidity ................................................................... Up to 95% at 40 °C

Measurement category.......................................................... CAT II

Pollution degree..................................................................... 2

Approved at altitudes ............................................................ Up to 2000 m

Safety

An NI 4065 meets the requirements of the following standards of safety and electrical equipment for measurement, control, and laboratory use:

• IEC 61010-1, EN 61010-1

• UL 61010-1, CSA 61010-1

Note:

For UL and other safety certifications, refer to the product label, or visit

ni.com/certification,

search by model number or product line,

and click the appropriate link in the Certification column.

Electromagnetic Compatibility

This product is designed to meet the requirements of the following standards of EMC for electrical equipment for measurement, control,

and laboratory use:

• EN 61326 EMC requirements; Minimum Immunity

• EN 55011 Emissions; Group 1, Class A

• CE, C-Tick, ICES, and FCC Part 15 Emissions; Class A

Note:

For EMC compliance, operate this device according to product documentation.

CE Compliance

This product meets the essential requirements of applicable European Directives, as amended for CE marking, as follows:

• 2006/95/EC; Low-Voltage Directive (safety)

• 2004/108/EC; Electromagnetic Compatibility Directive (EMC)

Note:

Refer to the Declaration of Conformity (DoC) for this product for any additional regulatory compliance information. To obtain the DoC for this

product, visit

ni.com/certification,

search by model number or product line, and click the appropriate link in the Certification column.

Waste Electrical and Electronic Equipment (WEEE)

EU Customers:

At the end of their life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling

centers and National Instruments WEEE initiatives, visit

ni.com/environment/weee.htm.

BUY ONLINE

ni.com

CALL 800 813 3693 (U.S.)
