3224190251 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 3224190251

3224190251: DescriptionDry Reed Relay, SPDT, Momentary, 0.012A (Coil), 24VDC (Coil), 288mW (Coil), 0.5A (Contact), 175VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size93KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

3224190251 Overview

Dry Reed Relay, SPDT, Momentary, 0.012A (Coil), 24VDC (Coil), 288mW (Coil), 0.5A (Contact), 175VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

3224190251 Parametric

Parameter Name	Attribute value
Maker	Standex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
body width	8 mm
body height	8.2 mm
Body length or diameter	20.5 mm
Maximum coil current (DC)	0.012 A
Coil operating voltage (DC)	15.8 V
Coil power	288 mW
Coil release voltage (DC)	3.6 V
Coil resistance	2200 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@175VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@175VDC
Maximum contact voltage (AC)	175 V
Maximum contact voltage (DC)	175 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3224190251
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	TUBE
physical size	20.5mm x 8mm x 8.2mm
Relay action	MOMENTARY
Relay function	SPDT
Relay type	DRY REED RELAY
release time	1.5 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

3224190251

Item:

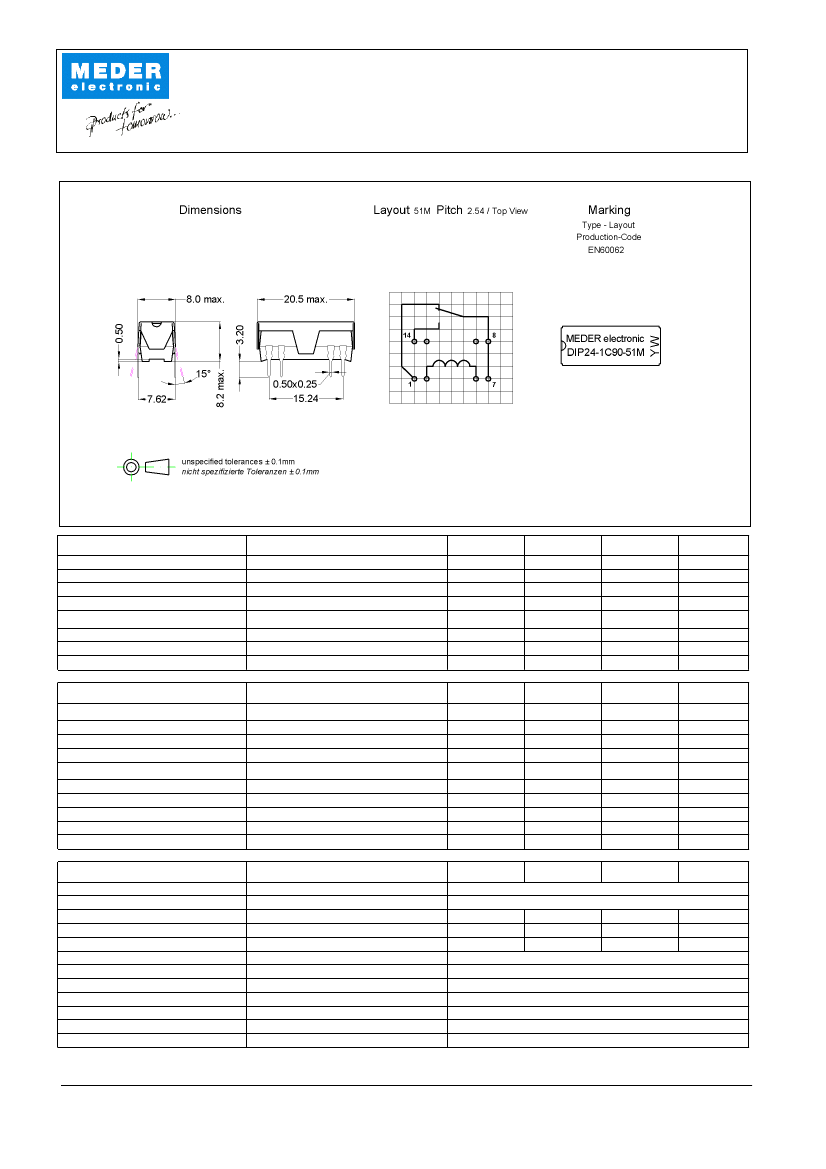

DIP24-1C90-51M
