ROS-ED8407/1+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> ROS-ED8407/1+

ROS-ED8407/1+: DescriptionVoltage Controlled Oscillator, 863MHz Min, 948MHz Max; CategoryPassive components oscillator; File Size94KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ROS-ED8407/1+ Overview

Voltage Controlled Oscillator, 863MHz Min, 948MHz Max

ROS-ED8407/1+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Maximum control voltage	5 V
Minimum control voltage	0.5 V
JESD-609 code	e4
Modulation sensitivity	40 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	948 MHz
Minimum operating frequency	863 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power
phase noise	-75 dBc/Hz
physical size	12.7mm x 12.7mm x 4.572mm
Maximum slew rate	10 mA
Nominal supply voltage	3 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Engineering Development Model

Voltage Controlled Oscillator

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

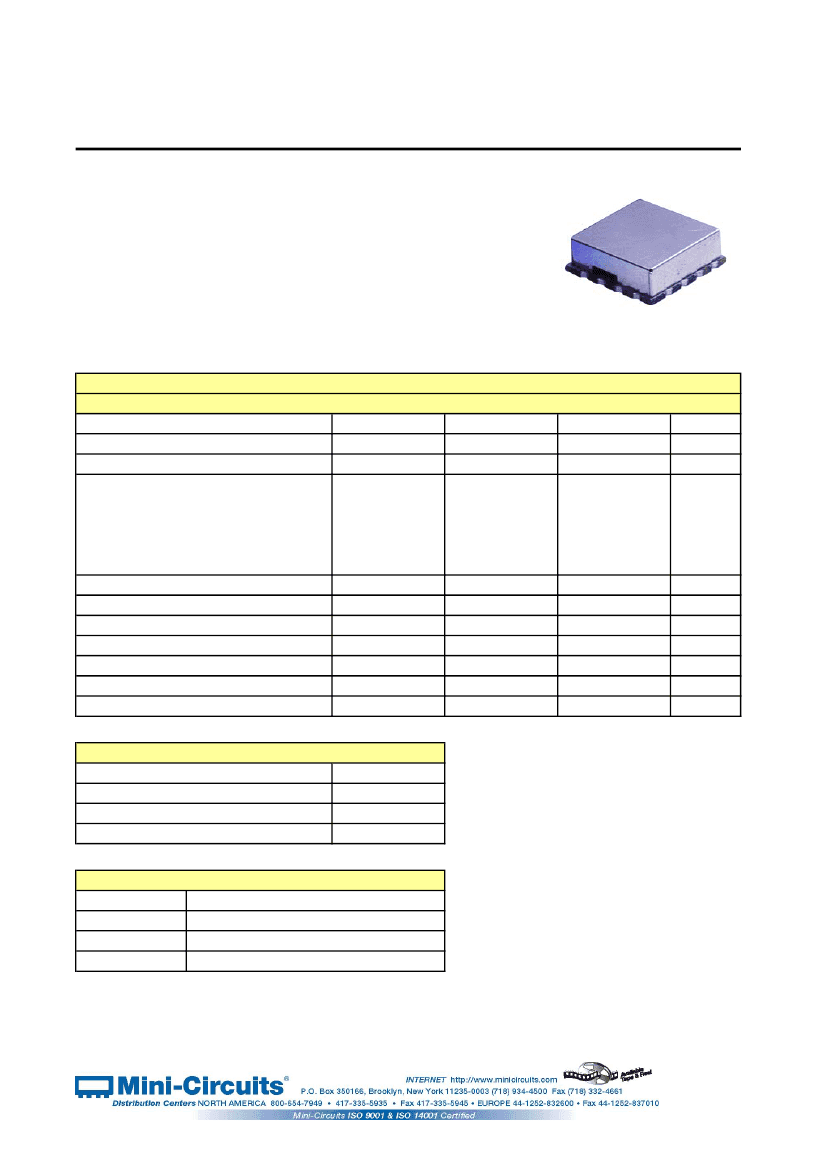

CASE STYLE : CK605

ROS-ED8407/1

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

863

0.5

Typ.

Max.

948

-75

-100

-120

-139

13 - 40

-18

Units

MHz

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-55°C to 85°C

-55°C to 100°C

+5V

+7V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

1,3,4,5,6,7,8,9,11,12,13,15,16

REV. X1

ROS-ED8407/1

60522

ROS-ED8407/1+ Related Products

	ROS-ED8407/1+	ROS-ED8407/1
Description	Voltage Controlled Oscillator, 863MHz Min, 948MHz Max	Voltage Controlled Oscillator, 863MHz Min, 948MHz Max
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Other features	TAPE AND REEL	TAPE AND REEL
Maximum control voltage	5 V	5 V
Minimum control voltage	0.5 V	0.5 V
JESD-609 code	e4	e0
Modulation sensitivity	40 MHz/V	40 MHz/V
Installation features	SURFACE MOUNT	SURFACE MOUNT
offset frequency	1 kHz	1 kHz
Maximum operating frequency	948 MHz	948 MHz
Minimum operating frequency	863 MHz	863 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
phase noise	-75 dBc/Hz	-75 dBc/Hz
physical size	12.7mm x 12.7mm x 4.572mm	12.7mm x 12.7mm x 4.572mm
Maximum slew rate	10 mA	10 mA
Nominal supply voltage	3 V	3 V
surface mount	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)

Recommended Resources

One of the voltage stabilizing circuits with auxiliary power supply and overcurrent protection

Two tube long delay timer circuit

Simple square wave generator circuit

Temperature measurement circuit using operational amplifier as differential amplifier

820e computer motherboard circuit diagram_45
