MODM-B-16-8P8C-S-S4-R

Description
Telecom and Datacom Connector, 128 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size119KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric Compare View All

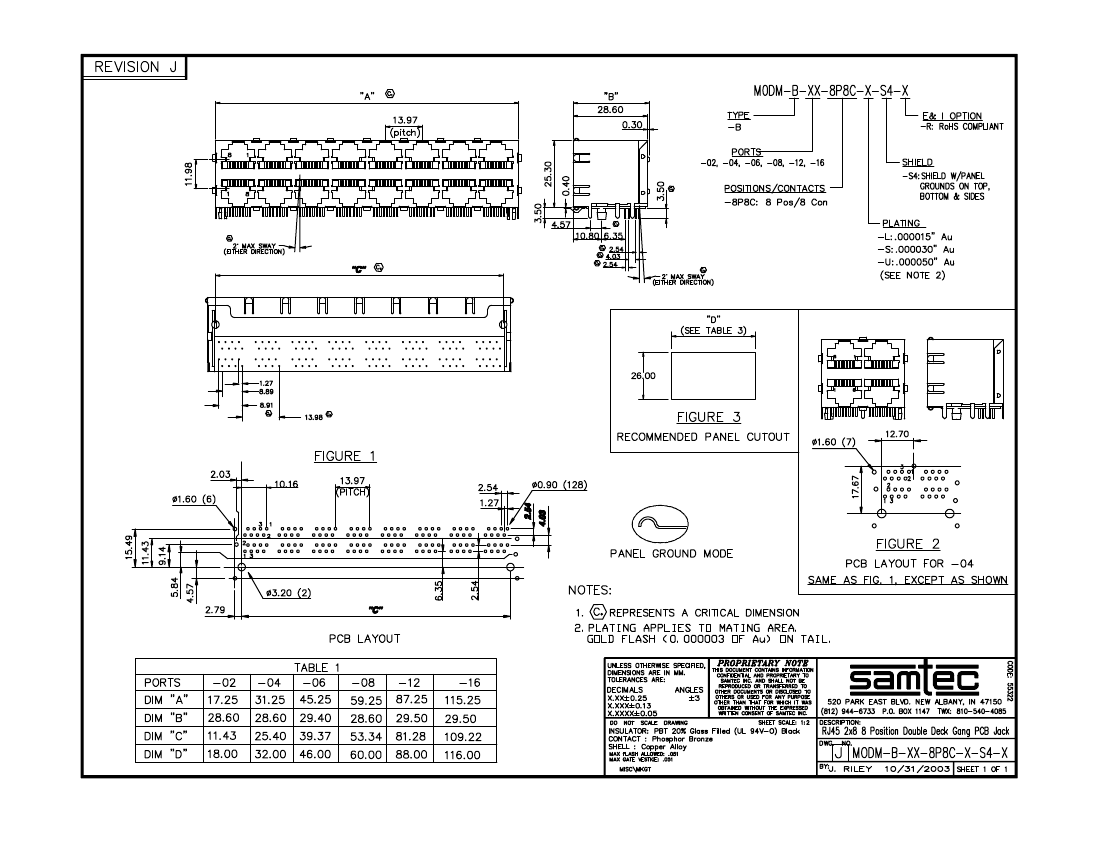

MODM-B-16-8P8C-S-S4-R Overview

Telecom and Datacom Connector, 128 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT

MODM-B-16-8P8C-S-S4-R Parametric

Parameter NameAttribute value
MakerSAMTEC
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresSTANDARD: RJ45, 16 PORTS 8 POSITIONS EACH, SHIELDED
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedGOLD FLASH (3)
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberMODM-B
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell materialCOPPER ALLOY
Termination typeSOLDER
Total number of contacts128
UL Flammability Code94V-0

MODM-B-16-8P8C-S-S4-R Related Products

MODM-B-16-8P8C-S-S4-R MODM-B-06-8P8C-S-S4-R MODM-B-08-8P8C-S-S4-R MODM-B-12-8P8C-S-S4-R MODM-B-16-8P8C-L-S4-R MODM-B-16-8P8C-U-S4-R
Description Telecom and Datacom Connector, 128 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT Telecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT Telecom and Datacom Connector, 96 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT Telecom and Datacom Connector, 128 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT Telecom and Datacom Connector, 128 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code unknown unknown unknown unknown unknown unknown
Other features STANDARD: RJ45, 16 PORTS 8 POSITIONS EACH, SHIELDED STANDARD: RJ45, 6 PORTS 8 POSITIONS EACH, SHIELDED STANDARD: RJ45, 8 PORTS 8 POSITIONS EACH, SHIELDED STANDARD: RJ45, 12 PORTS 8 POSITIONS EACH, SHIELDED STANDARD: RJ45, 16 PORTS 8 POSITIONS EACH, SHIELDED STANDARD: RJ45, 16 PORTS 8 POSITIONS EACH, SHIELDED
Body/casing type JACK JACK JACK JACK JACK JACK
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (15) GOLD (50)
Contact completed and terminated GOLD FLASH (3) GOLD FLASH (3) GOLD FLASH (3) GOLD FLASH (3) GOLD FLASH (3) GOLD FLASH (3)
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
DIN compliance NO NO NO NO NO NO
empty shell NO NO NO NO NO NO
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code e4 e4 e4 e4 e4 e4
MIL compliance NO NO NO NO NO NO
Manufacturer's serial number MODM-B MODM-B MODM-B MODM-B MODM-B MODM-B
Mixed contacts NO NO NO NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 128 48 64 96 128 128
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
