FES8HT: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 500V V(RRM), Silicon, TO-220AC,; CategoryDiscrete semiconductor diode; File Size74KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

FES8HT Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 500V V(RRM), Silicon, TO-220AC,

FES8HT Parametric

Parameter Name	Attribute value
Maker	General Instrument Corp
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

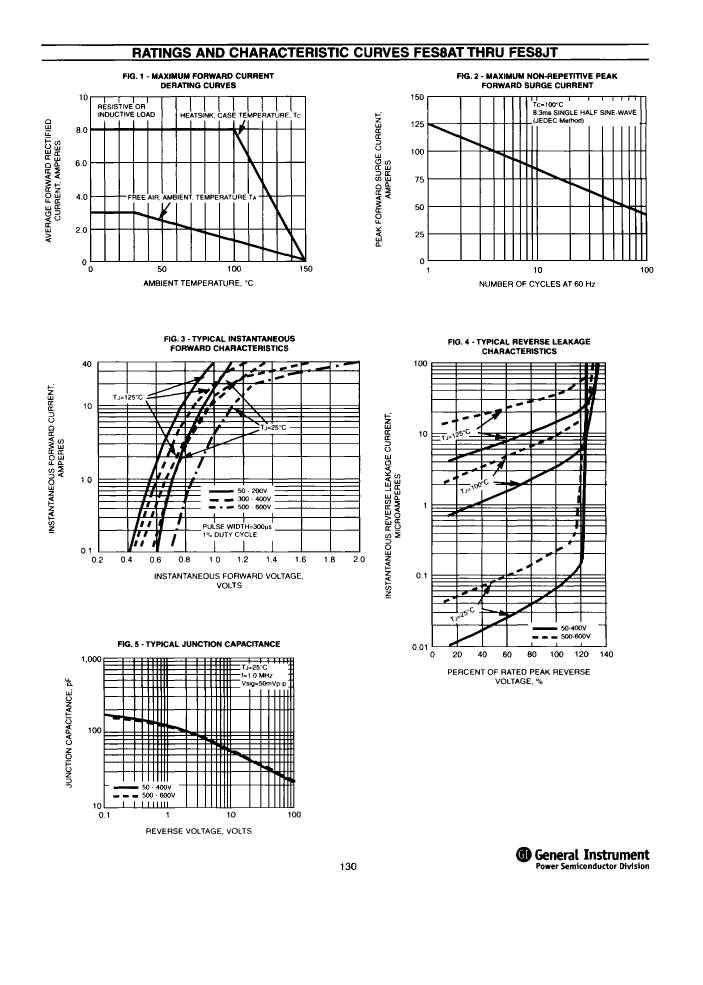

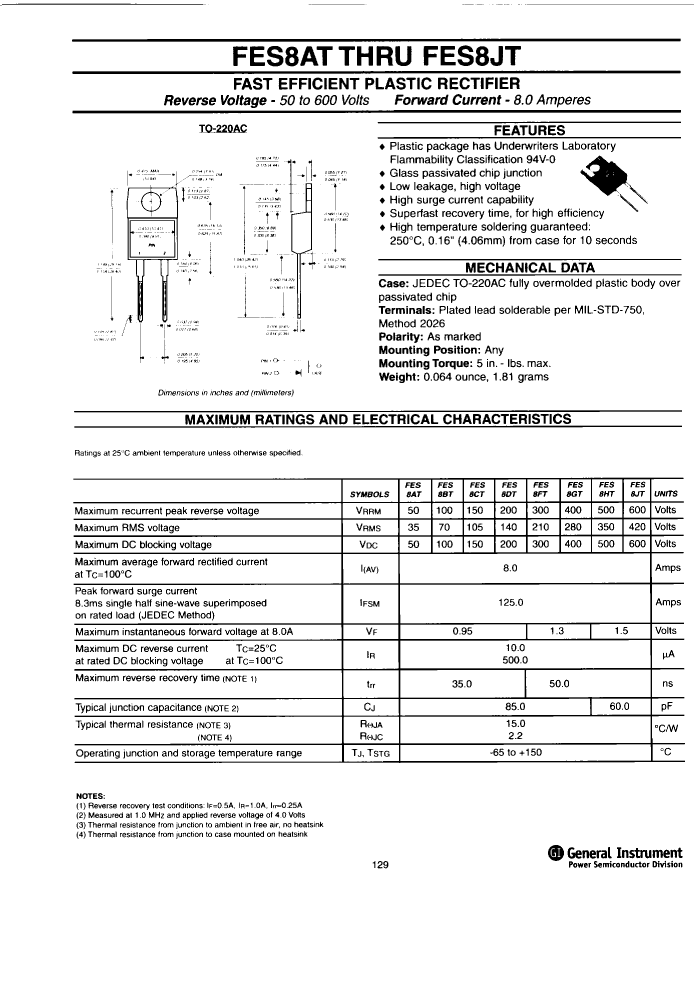

Preview

Download Datasheet

View All

FES8HT Related Products

	FES8HT	FES8BT	FES8DT	FES8GT	FES8CT	FES8AT	FES8FT	FES8JT
Description	Rectifier Diode, 1 Phase, 1 Element, 8A, 500V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 400V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 150V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 300V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 600V V(RRM), Silicon, TO-220AC,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	0.95 V	0.95 V	1.3 V	0.95 V	0.95 V	1.3 V	1.5 V
JEDEC-95 code	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A	125 A	125 A	125 A	125 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	100 V	200 V	400 V	150 V	50 V	300 V	600 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.05 µs	0.035 µs	0.035 µs	0.05 µs	0.035 µs	0.035 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	General Instrument Corp	-	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp
