KBJ401 ...... KBJ410
塑封硅整流桥堆
反向电压
50---1000V
正向电流
4.0 A
特征
Features
.134(3.4)
.122(3.1)
.189(4.8)
.173(4.4)
.150(3.8)
.134(3.4)
.382(9.7)
.366(9.3)
Single-phase Silicon Bridge Rectifier
Reverse Voltage 50 to 1000 V
Forward Current 4.0 A
·½的反向漏电流
Low reverse leakage
·较强的正向浪涌承受½力
High forward surge capability
·浪涌承受½力：170 A Surge
overload rating:170 Amperes peak
.602(15.3)
.578(14.7)
.157
(4.0)
￠.134(8.4)
.122(3.1)
.995(25.3)
.983(24.7)
.057(1.45)
.041(1.05)
.083(2.1)
.069(1.7)
.043(1.1)
.035(0.9)
+
~
~
-
.708(18.0)
.669(17.0)
机械数据
Mechanical Data
.114(2.8)
.098(2.5)
·封装:
塑料封装
Case: Molded Plastic
·极性:
标记模压或印于本½
Polarity: Symbols molded or marked on body
·安装½½:
任意
·重量: 4.6
克
Mounting Position: Any
Weight:4.6 Grams
.074(1.9)
.059(1.5)
.146(3.7)
.130(3.3)
.031(0.8)
.023(0.6)
.303(7.7) .303(7.7) .303(7.7)
.287(7.3) .287(7.3) .287(7.3)
Unit：inch（mm）
极限值和温度特性
TA = 25℃
除非另有规定。
Maximum Ratings & Thermal Characteristics
符号
最大可重复峰值反向电压
Maximum repetitive peak reverse voltage
最大均方根电压
Maximum RMS voltage
最大直流阻断电压
Maximum DC blocking voltage
最大正向平均整流电流
加散热片T
C
=108℃
Maximum average forward rectified current
无散热片Ta=25℃
Ratings at 25℃ ambient temperature unless otherwise specified.
KBJ401 KBJ402 KBJ403 KBJ404 KBJ406 KBJ408 KBJ410
单½
V
V
V
A
A
µA
℃/W
Symbols
GBJ401GBJ402 GBJ403 GBJ404 GBJ406 GBJ408 GBJ410
Unit
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
R(AV)
R
θJA
Tj, TSTG
100
70
100
200
140
200
300
210
300
400
280
400
4.0
2.3
150
30
10
600
420
600
800
560
800
1000
700
1000
峰值正向浪涌电流 8.3ms单一正弦半波
Peak forward surge current 8.3 ms single half sine-wave
@TA = 75℃
最大反向峰值电流
Maximum
peak
reverse current full cycle
典型热阻
Typical thermal resistance
工½结温和存储温度
Operating junction and storage temperature range
-50 --- +150
℃
电特性
TA = 25℃
除非另有规定。
Electrical Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
符号
最大正向电压
Maximum forward voltage
KBJ401 KBJ402 KBJ403 KBJ404 KBJ406 KBJ408 KBJ410
单½
Unit
V
µA
Symbols
GBJ401GBJ402 GBJ403 GBJ404 GBJ406 GBJ408 GBJ410
I
F
= 2.0A
TA= 25℃
TA=100℃
V
F
1.0
10
500
45
最大反向电流
Maximum reverse current
典型结电容
V
R
=
4.0V, f = 1MHz
Type junction capacitance
I
R
Cj
pF
Web: www.ps-pfs.com http://ps-pfs.en.alibaba.com/
KBJ401 ...... KBJ410

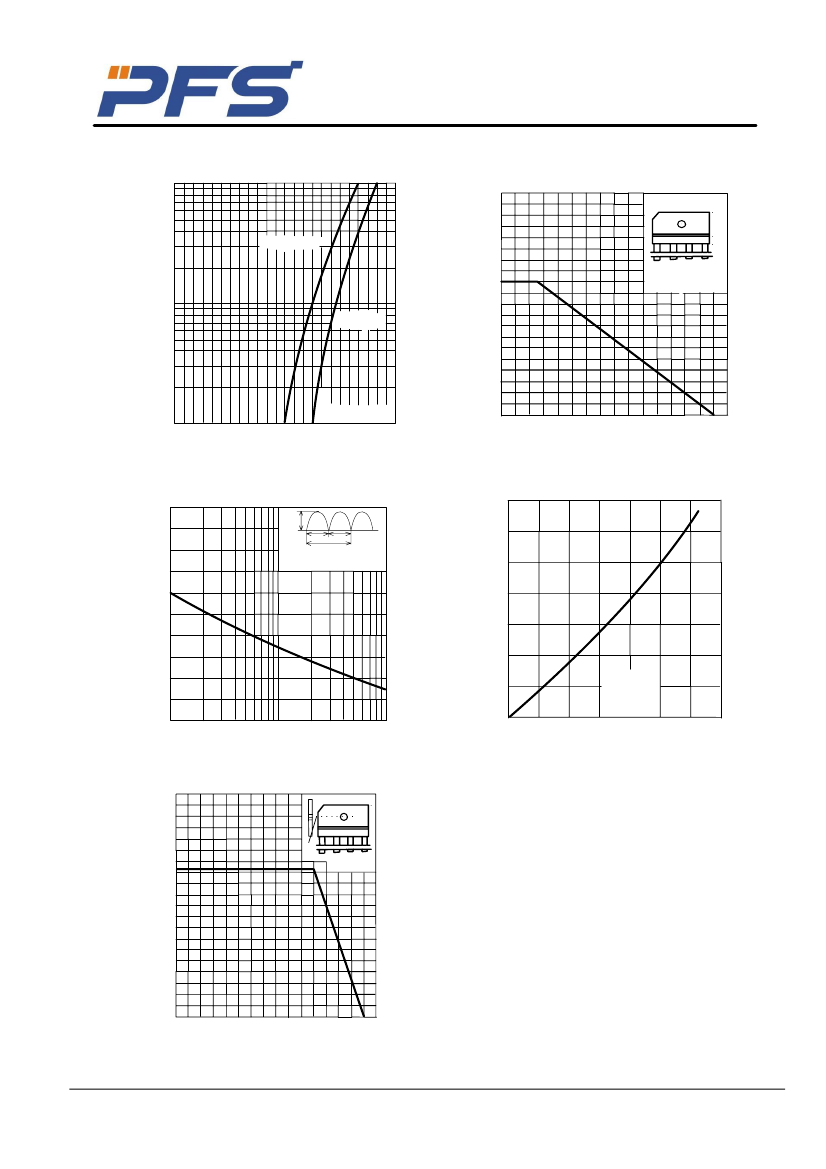

特性曲线
Characteristic Curves
正向特性曲线（典型值）
TYPICAL FORWARD CHARACTERISTIC
10
4.0
正向电流降额曲线
FORWARD CURRENT DERATING CURVE
on glass-epoxi substrate
I
F
Instantaneous Forward Current (A)
Tl=150℃
平均正向电流
I
F(AV)
(A)
Average Forward Rectified Current (A)
+
~
~
-
3.0
P.C.B.
soldering land 5mmф
sine wave R-load
free in air
正向电流 I
F
(A)
1
2.0
Tl=25℃
1.0
0.1
0
0.2
0.4
0.6
Pulse measurement
per diode
I
F(A)
00
40
80
120
160
0.8
1
1.2
V
F
正向电压 V
F
(V)
Instantaneous Forward Voltage (V)
环境温度 Ta(°C)
Tamb, ambient temperature (°C)
功率损耗曲线
浪涌特性曲线（最大值）
MAXIMUM NON REPETITIVE
PEAK FORWARD SURGE CURRENT
200
I
FSM
10mS
10mS
14
12
FORWARD POWER DISSIPATION
I
FSM
Peak Forward Surge Current (A)
non-repetitive
Tj=25℃ before
FORWARD POWER DISSIPATION P
F
(W))
1 Cycle
10
8
6
4
2
0
峰值正向浪涌电流 I
FSM
(A)
100
功率损耗
P(W)
Sine wave
Tj=150℃
0
1
2
3
4
5
6
7
0
0
2
5
10
20
50
100
通过电流的周期
Number of Cycles at 60 Hz.
平均整流电流 I
0
[A]
AVERAGE RECGIFIED FORWARD
CURRENT I
o
(A)
正向电流降额曲线
FORWARD CURRENT DERATING CURVE
6.0
Tc-sensing point
平均正向电流
I
F(AV)
(A)
Average Forward Rectified Current (A)
+
~
~
-
4.5
Tc
sine wave R-load
with heatsink
3.0
1.5
I
F(A)
00
40
80
120
160
环境温度 T
C
(°C)
Case Temperature Tc(℃)
Web: www.ps-pfs.com http://ps-pfs.en.alibaba.com/
