BTA13-800B datasheet, PDF - EEWORLD Datasheet

BTA13-800B: DescriptionTRIAC,800V V(DRM),12A I(T)RMS,TO-220; CategoryAnalog mixed-signal IC Trigger device; File Size177KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

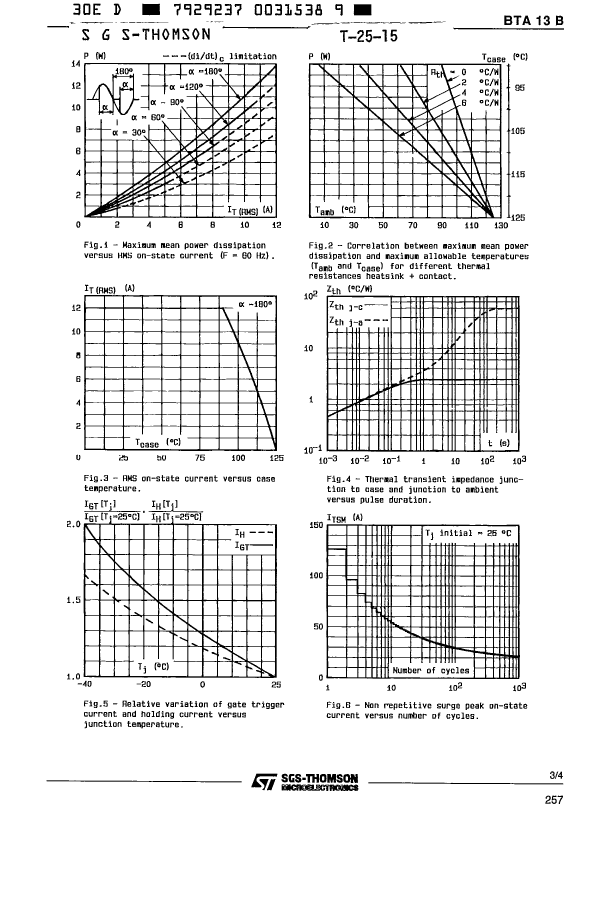

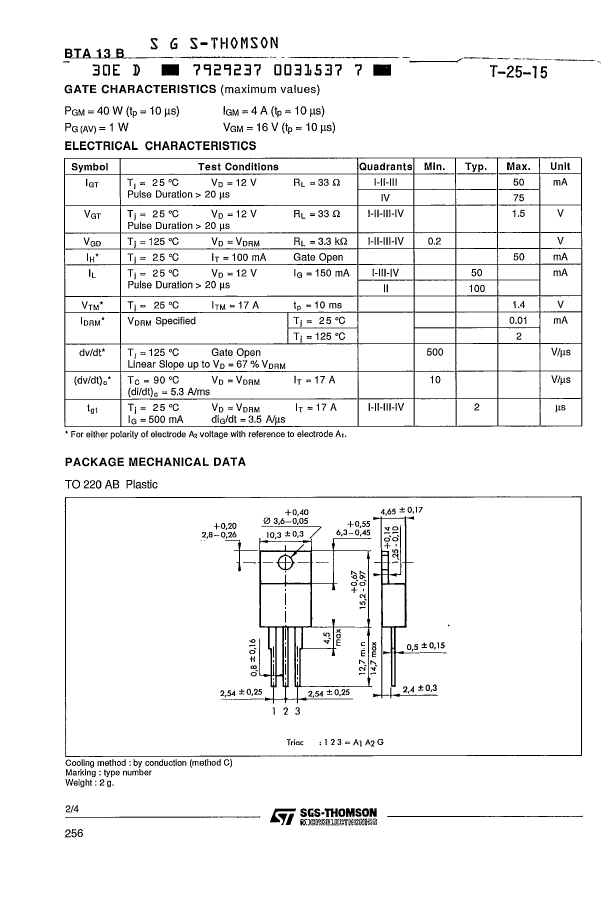

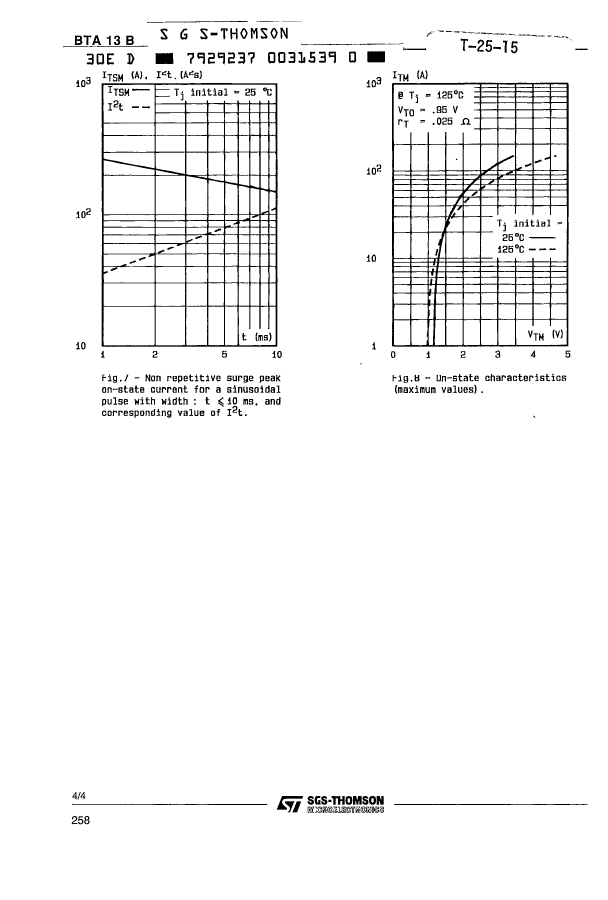

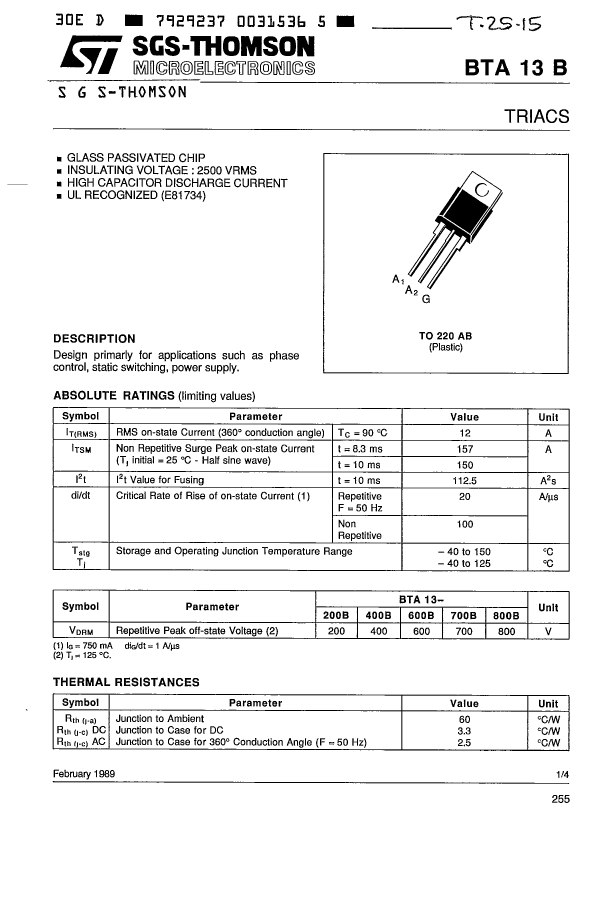

BTA13-800B Overview

TRIAC,800V V(DRM),12A I(T)RMS,TO-220

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	,
Reach Compliance Code	not_compliant
Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	75 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
JESD-609 code	e0
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

	BTA13-800B	BTA13-200B	BTA13-400B	BTA13-600B	BTA13-700B
Description	TRIAC,800V V(DRM),12A I(T)RMS,TO-220	TRIAC,200V V(DRM),12A I(T)RMS,TO-220	TRIAC,400V V(DRM),12A I(T)RMS,TO-220	TRIAC,600V V(DRM),12A I(T)RMS,TO-220	TRIAC,700V V(DRM),12A I(T)RMS,TO-220
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Critical rise rate of commutation voltage - minimum value	10 V/us	10 V/us	10 V/us	10 V/us	10 V/us
Critical rise rate of minimum off-state voltage	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	75 mA	75 mA	75 mA	75 mA	75 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	50 mA	50 mA	50 mA	50 mA	50 mA
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	12 A	12 A	12 A	12 A	12 A
Off-state repetitive peak voltage	800 V	200 V	400 V	600 V	700 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
