NDS9400A_NL

Description
Small Signal Field-Effect Transistor, 3.4A I(D), 30V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, LEAD FREE, SO-8
CategoryDiscrete semiconductor    The transistor
File Size193KB,7 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric View All

NDS9400A_NL Overview

Small Signal Field-Effect Transistor, 3.4A I(D), 30V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, LEAD FREE, SO-8

NDS9400A_NL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFairchild
Parts packaging codeSOT
package instructionLEAD FREE, SO-8
Contacts8
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage30 V
Maximum drain current (Abs) (ID)3.4 A
Maximum drain current (ID)3.4 A
Maximum drain-source on-resistance0.13 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PDSO-G8
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals8
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeP-CHANNEL
Maximum power dissipation(Abs)2.5 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
February 1996
NDS9400A
Single P-Channel Enhancement Mode Field Effect Transistor
General Description
These P-Channel enhancement mode power field effect
transistors are produced using Fairchild's proprietary, high cell
density, DMOS technology. This very high density process is
especially tailored to minimize on-state resistance, provide
superior switching performance, and withstand high energy
pulses in the avalanche and commutation modes. These
devices are particularly suited for low voltage applications such
as notebook computer power management and other battery
powered circuits where fast switching, low in-line power loss,
and resistance to transients are needed.
Features
-3.4A, -30V. R
DS(ON)
= 0.13
@ V
GS
= -10V.
High density cell design for extremely low R
DS(ON)
.
High power and current handling capability in a widely used
surface mount package.
Rugged and reliable.
________________________________________________________________________________
5
6
4
3
7
8
2
1
Absolute Maximum Ratings
Symbol
V
DSS
V
GSS
I
D
P
D
Parameter
Drain-Source Voltage
Gate-Source Voltage
Drain Current - Continuous
- Pulsed
Maximum Power Dissipation
T
A
= 25°C unless otherwise noted
NDS9400A
-30
± 20
(Note 1a)
Units
V
V
A
± 3.4
± 10
(Note 1a)
(Note 1b)
(Note 1c)
2.5
1.2
1
-55 to 150
W
T
J
,T
STG
Operating and Storage Temperature Range
°C
THERMAL CHARACTERISTICS
R
θ
JA
R
θ
JC
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case
(Note 1a)
(Note 1)
50
25
°C/W
°C/W

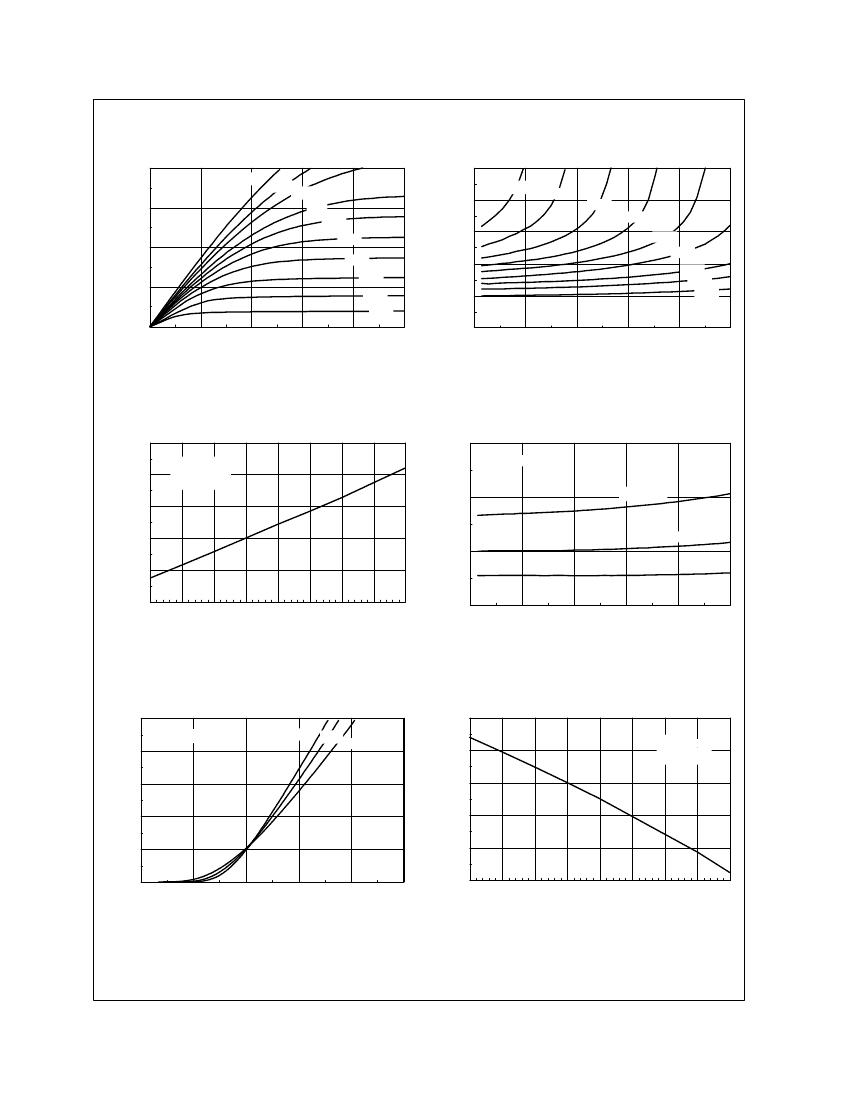

© 1997 Fairchild Semiconductor Corporation
NDS9400A.SAM
