MBRB10H100/45-E3 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> MBRB10H100/45-E3

MBRB10H100/45-E3: DescriptionDIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size85KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MBRB10H100/45-E3 Overview

DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode

MBRB10H100/45-E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	D2PAK
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

MBR10H100, MBRF10H100 & MBRB10H100

New Product

Vishay Semiconductors

formerly General Semiconductor

Reverse Voltage

90 to 100V

Forward Current

10A

Maximum Junction Temperature

175°C

High Voltage Schottky Rectifiers

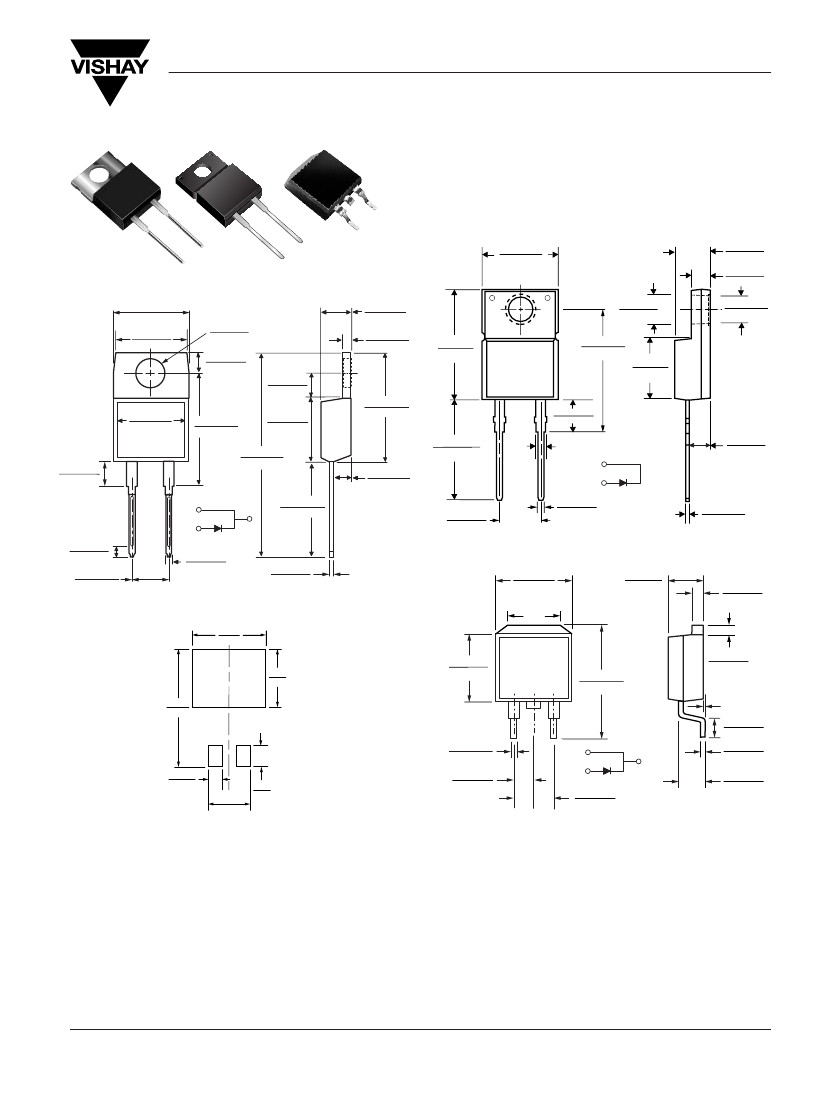

ITO-220AC (MBRF10H90, MBRF10H100)

0.405 (10.27)

0.383 (9.72)

0.188 (4.77)

0.172 (4.36)

0.110 (2.80)

0.100 (2.54)

0.185 (4.70)

0.175 (4.44)

0.154 (3.91)

0.370 (9.40)

0.360 (9.14)

0.148 (3.74)

0.113 (2.87)

0.103 (2.62)

0.145 (3.68)

0.135 (3.43)

0.410 (10.41)

0.390 (9.91)

0.160 (4.06)

0.140 (3.56)

1.148 (29.16)

1.118 (28.40)

0.110 (2.79)

0.100 (2.54)

0.560 (14.22)

0.530 (13.46)

CASE

TO-220AC (MBR10H90, MBR10H100)

0.415 (10.54) MAX.

DIA.

0.140 (3.56)

DIA.

0.130 (3.30)

0.131 (3.39)

DIA.

0.122 (3.08)

0.055 (1.39)

0.045 (1.14)

0.600 (15.5)

0.580 (14.5)

0.676 (17.2)

0.646 (16.4)

0.350 (8.89)

0.330 (8.38)

0.635 (16.13)

0.625 (15.87)

0.350 (8.89)

0.330 (8.38)

0.603 (15.32)

0.573 (14.55)

0.191 (4.85)

0.171 (4.35)

0.560 (14.22)

0.530 (13.46)

0.060 (1.52)

PIN 1

PIN 2

0.110 (2.80)

0.100 (2.54)

PIN 1

PIN 2

0.205 (5.20)

0.195 (4.95)

0.037 (0.94)

0.027 (0.69)

0.022 (0.55)

0.014 (0.36)

0.105 (2.67)

0.095 (2.41)

0.205 (5.20)

0.195 (4.95)

0.037 (0.94)

0.027 (0.68)

0.022 (0.56)

0.014 (0.36)

TO-263AB (MBRB10H90, MBRB10H100)

0.411 (10.45)

0.380 (9.65)

0.245 (6.22)

MIN

0.055 (1.40)

0.047 (1.19)

0.624 (15.85)

0.591 (15.00)

0-0.01 (0-0.254)

0.110 (2.79)

0.090 (2.29)

0.027 (0.686)

0.037 (0.940)

PIN 1

PIN 2

K - HEATSINK

0.190 (4.83)

0.160 (4.06)

0.055 (1.40)

0.045 (1.14)

Mounting Pad Layout TO-263AB

0.42

(10.66)

0.33

(8.38)

0.63

(17.02)

0.360 (9.14)

0.320 (8.13)

Dimensions in inches

and (millimeters)

0.021 (0.53)

0.014 (0.36)

0.140 (3.56)

0.110 (2.79)

0.08

(2.032)

0.24

(6.096)

0.105 (2.67)

0.12

(3.05)

0.095 (2.41)

0.205 (5.20)

0.195 (4.95)

Features

• Plastic package has Underwriters Laboratory

Flammability Classifications 94V-0

• Metal silicon junction, majority carrier conduction

• Low power loss, high efficiency

• Guardring for overvoltage protection

• For use in low voltage, high frequency inverters, free

wheeling, and polarity protection applications

Mechanical Data

Case:

JEDEC TO-220AC, ITO-220AC & TO-263AB

molded plastic body

Terminals:

Plated leads, solderable per

MIL-STD-750, Method 2026

High temperature soldering guaranteed:

250°C/10 seconds, 0.25" (6.35mm) from case

(TO-220AC & ITO-220AC) at terminals (TO-263AB)

Polarity:

As marked

Mounting Position:

Any

Mounting Torque:

10 in-lbs maximum

Weight:

0.08 oz., 2.24 g

Packaging Codes:

see next page

www.vishay.com

Document Number 88667

03-Oct-02

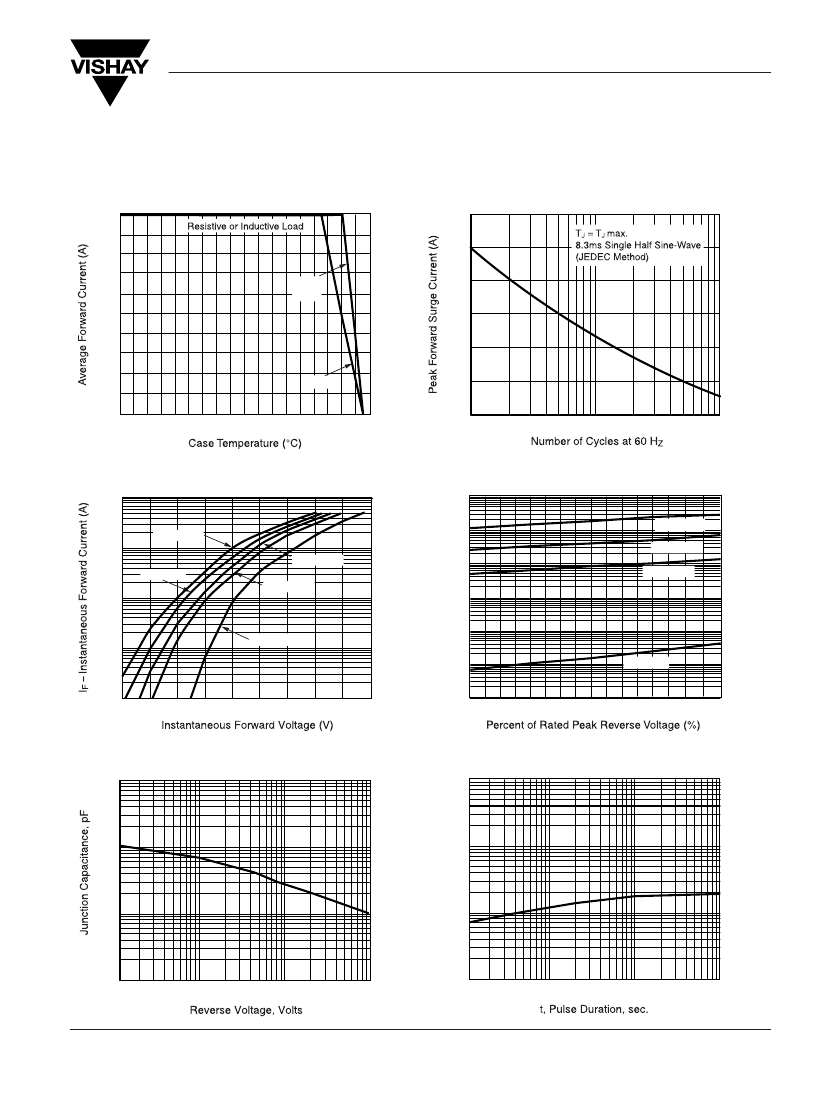

MBRB10H100/45-E3 Related Products

	MBRB10H100/45-E3	MBRB10H90-E3/31	MBR10H90/45-E3	MBR10H90/45	MBR10H100/45-E3	MBRB10H90/31-E3	MBRB10H90/45-E3	MBRB10H90/81-E3	MBRB10H100/81-E3	MBRB10H100/31-E3
Description	DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-220AC, PLASTIC PACKAGE-2, Rectifier Diode	Rectifier Diode, Schottky, 1 Element, 10A, 90V V(RRM),	DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AC, PLASTIC PACKAGE-2, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-263AB, PLASTIC PACKAGE-3, Rectifier Diode
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	-	conform to	-	conform to	conform to	conform to	-
Parts packaging code	D2PAK	D2PAK	TO-220AC	-	TO-220AC	D2PAK	D2PAK	D2PAK	D2PAK	D2PAK
package instruction	PLASTIC PACKAGE-3	R-PSSO-G2	PLASTIC PACKAGE-2	-	PLASTIC PACKAGE-2	R-PSSO-G2	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3
Contacts	3	3	3	-	3	3	3	3	3	3
