Datasheet> All Categories > Discrete semiconductor> diode> BYR30-500

Preview

BYR30-500: DescriptionRectifier Diode, 1 Phase, 1 Element, 14A, 500V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size208KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYR30-500 Overview

Rectifier Diode, 1 Phase, 1 Element, 14A, 500V V(RRM), Silicon,

BYR30-500 Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	180 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	14 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

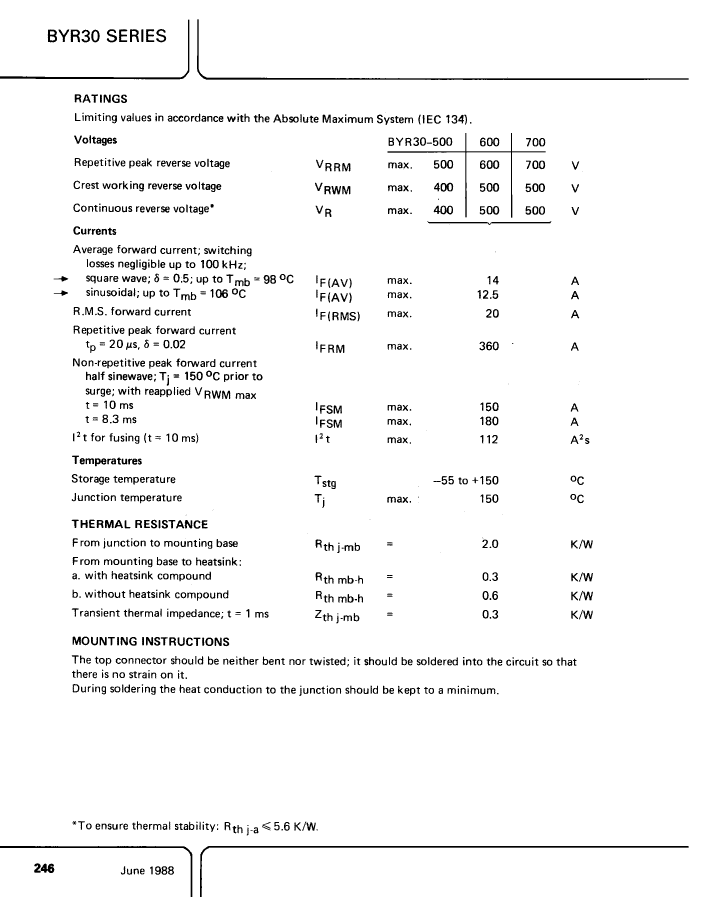

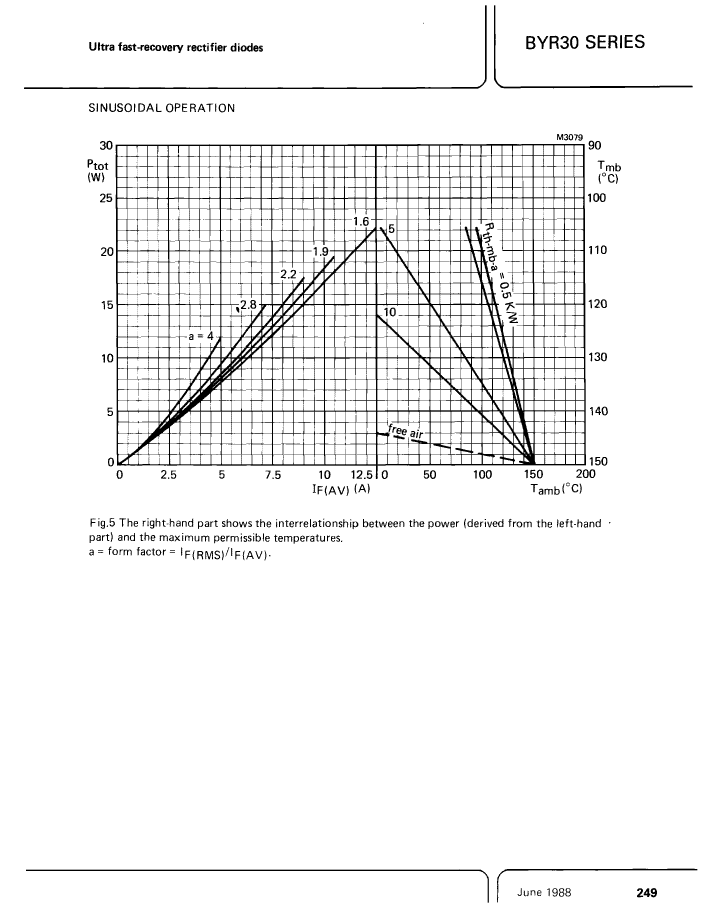

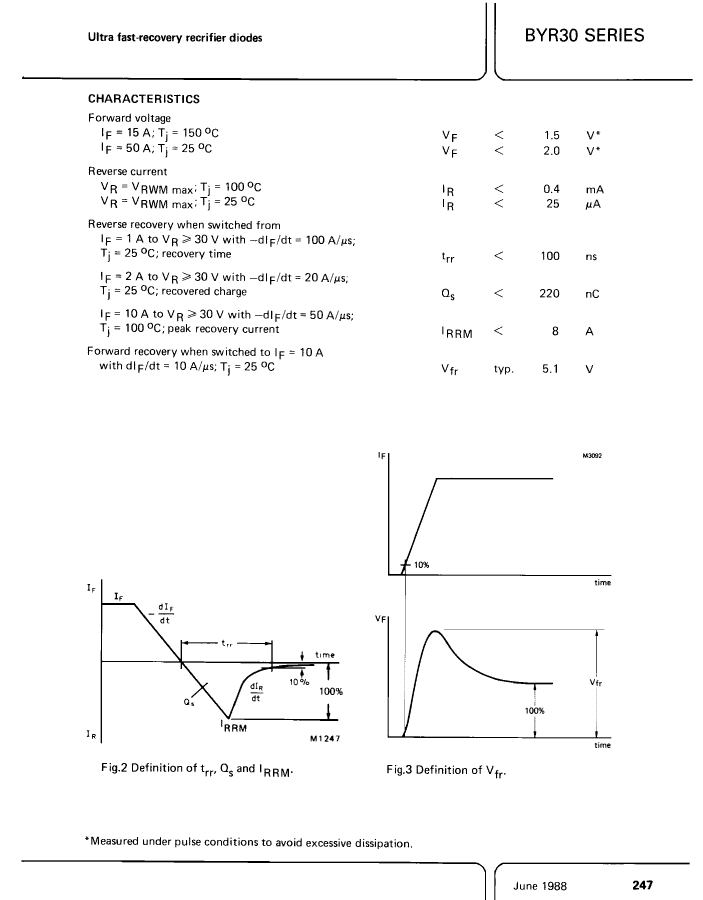

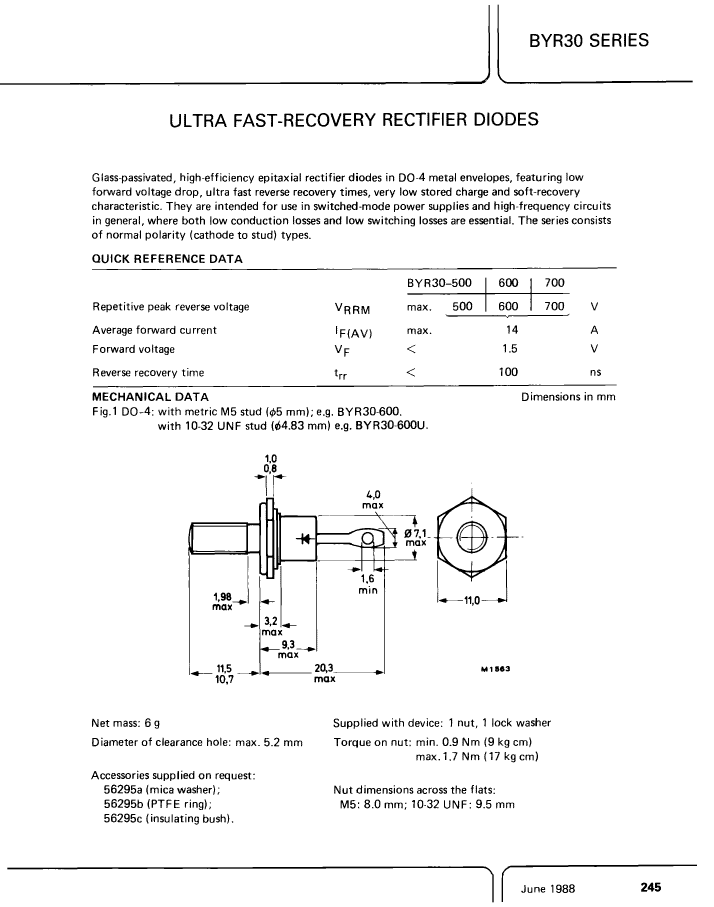

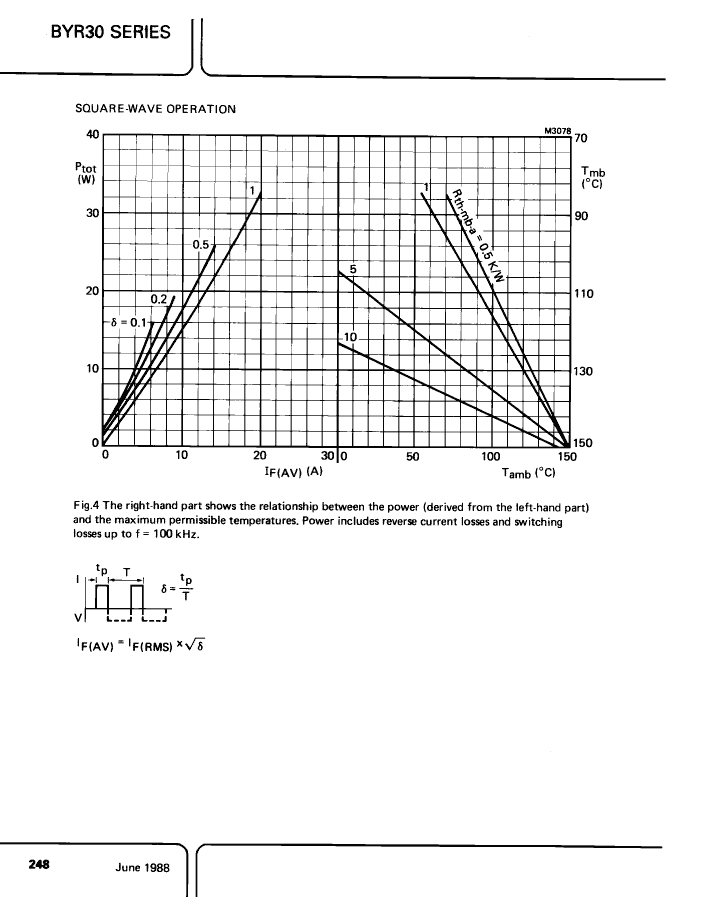

Preview

Download Datasheet

View All

BYR30-500 Related Products

	BYR30-500	BYR30-700	BYR30-700U	BYR30-500U	BYR30-600	BYR30-600U
Description	Rectifier Diode, 1 Phase, 1 Element, 14A, 500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 14A, 700V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 14A, 700V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 14A, 500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 14A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 14A, 600V V(RRM), Silicon,
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V	2 V	2 V	2 V	2 V	2 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	180 A	180 A	180 A	180 A	180 A	180 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	14 A	14 A	14 A	14 A	14 A	14 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	700 V	700 V	500 V	600 V	600 V
Maximum reverse current	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA
Maximum reverse recovery time	0.1 µs	0.1 µs	0.1 µs	0.1 µs	0.1 µs	0.1 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
