BYT12-600R datasheet, PDF - EEWORLD Datasheet

BYT12-600R: Description12A, 600V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size103KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

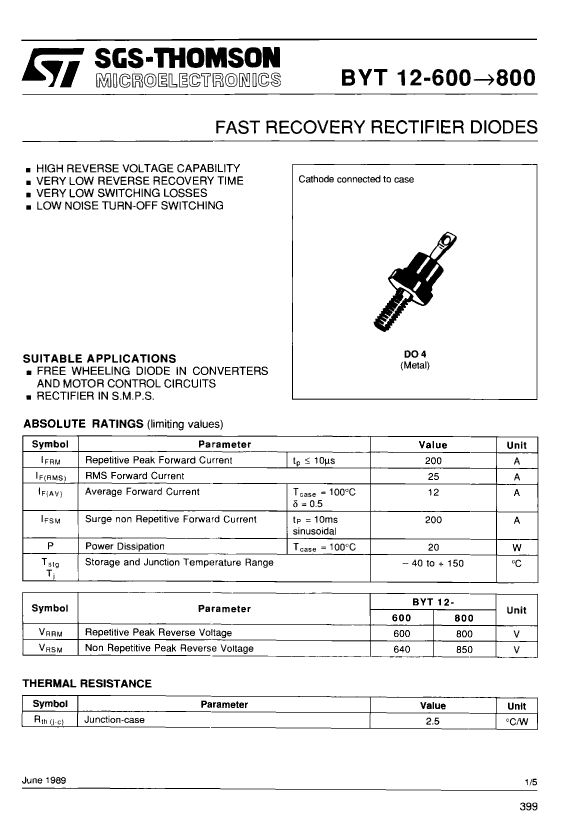

BYT12-600R Overview

12A, 600V, SILICON, RECTIFIER DIODE

Parameter Name	Attribute value
Maker	STMicroelectronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

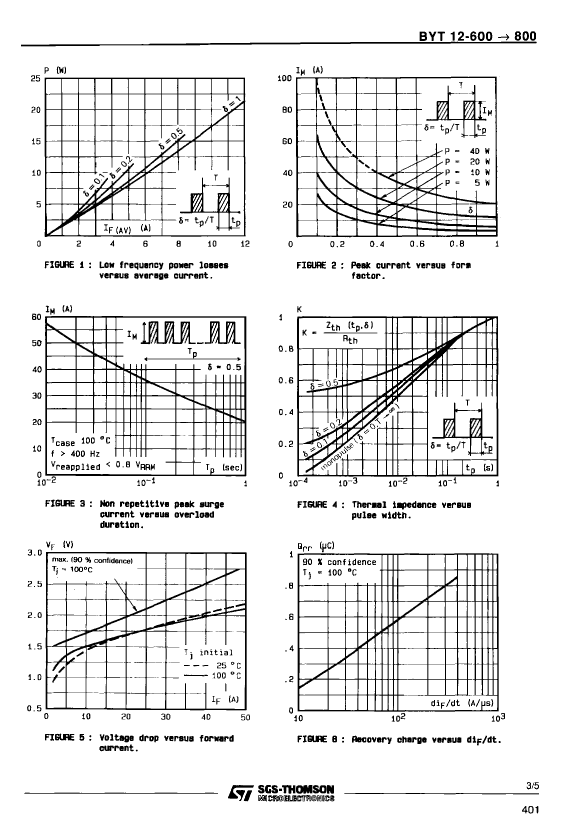

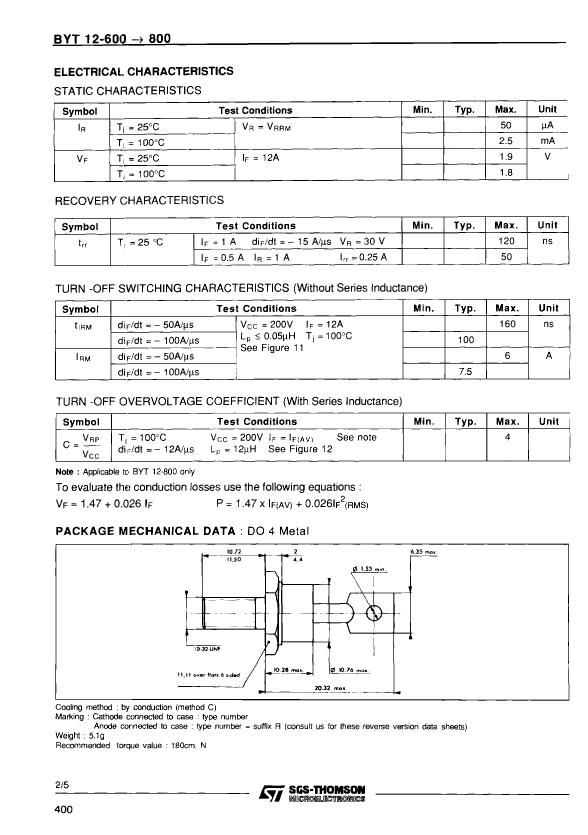

Maximum forward voltage (VF)	1.9 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	200 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	12 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Maximum power dissipation	20 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	50 µA

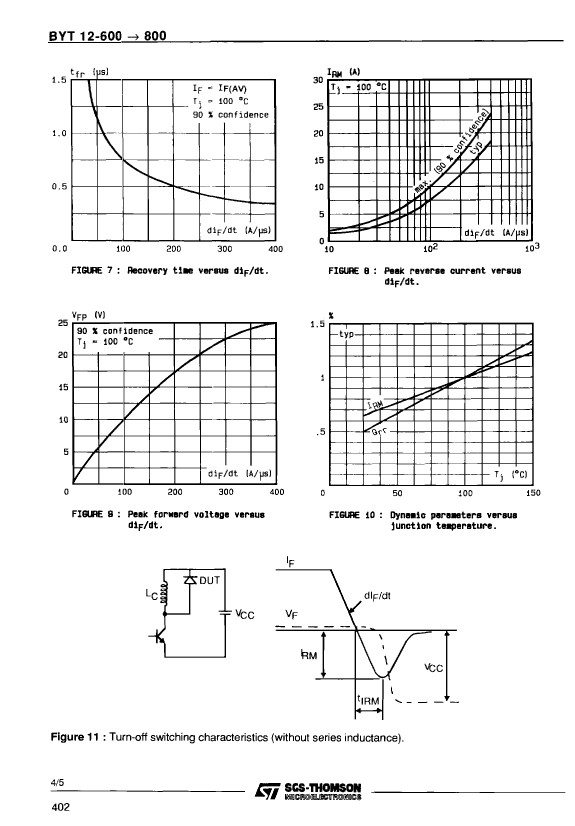

Maximum reverse recovery time	0.12 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

	BYT12-600R	BYT12-800R
Description	12A, 600V, SILICON, RECTIFIER DIODE	12A, 800V, SILICON, RECTIFIER DIODE
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE
application	FAST RECOVERY	FAST RECOVERY
Shell connection	ANODE	ANODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.9 V	1.9 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	200 A	200 A
Number of components	1	1
Phase	1	1
Number of terminals	1	1
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	12 A	12 A
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Maximum power dissipation	20 W	20 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	800 V
Maximum reverse current	50 µA	50 µA
Maximum reverse recovery time	0.12 µs	0.12 µs
surface mount	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
