BTB08-200AW datasheet, PDF - EEWORLD Datasheet

BTB08-200AW: DescriptionTRIAC,200V V(DRM),8A I(T)RMS,TO-220; CategoryAnalog mixed-signal IC Trigger device; File Size187KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

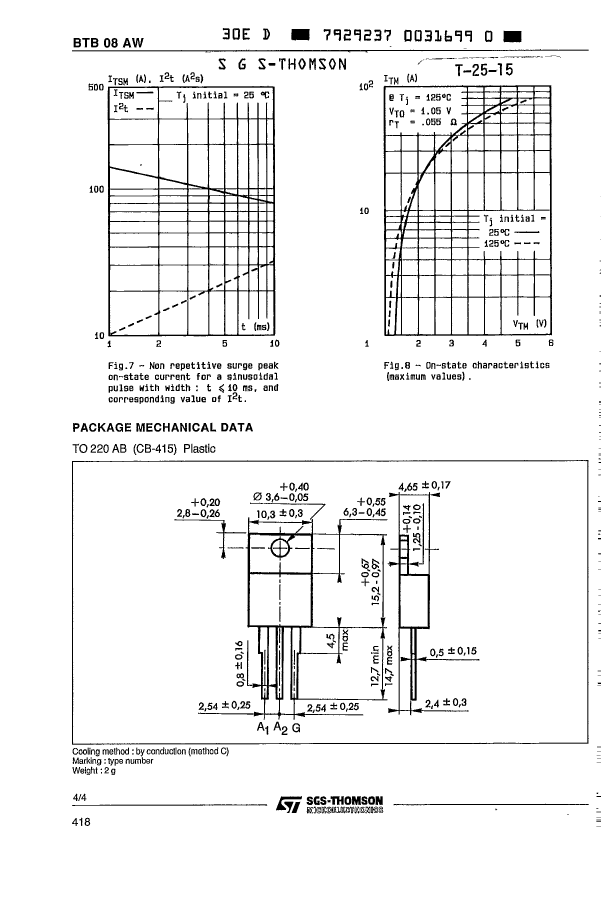

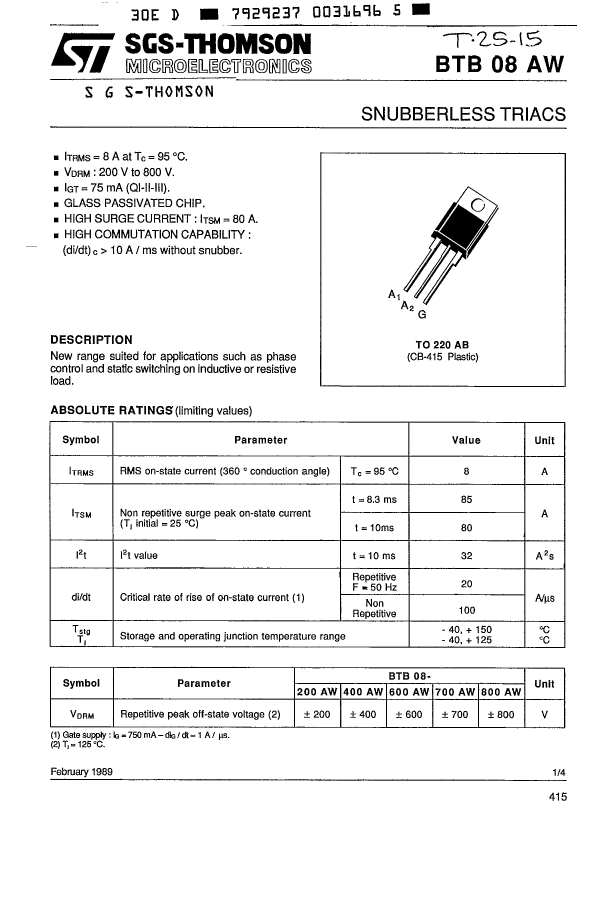

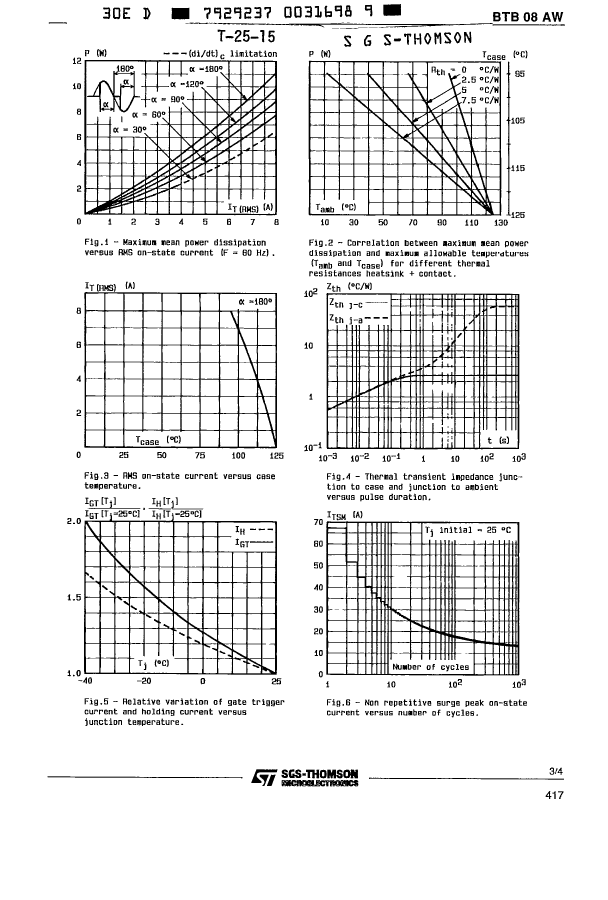

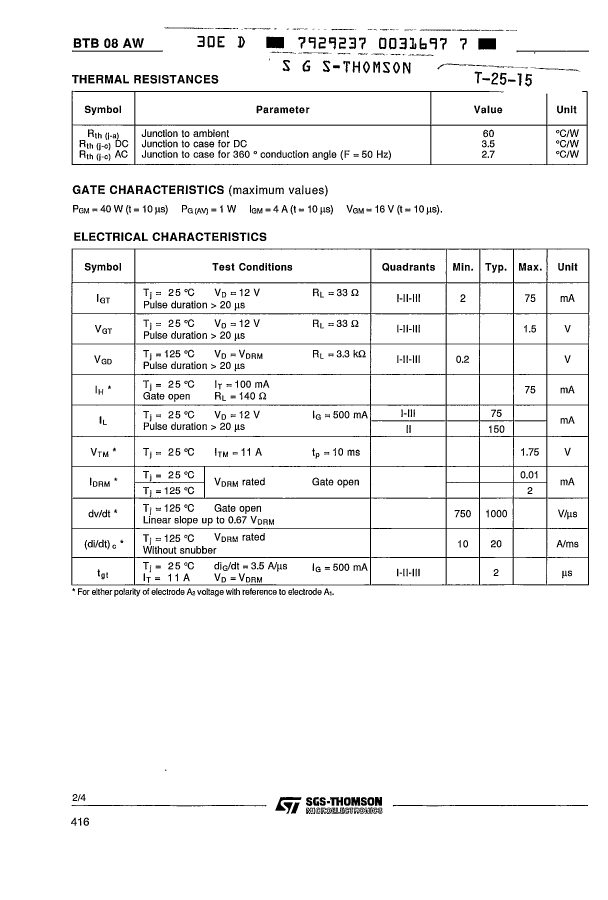

BTB08-200AW Overview

TRIAC,200V V(DRM),8A I(T)RMS,TO-220

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	,
Reach Compliance Code	not_compliant
Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	750 V/us
Maximum DC gate trigger current	75 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	100 mA
JESD-609 code	e0
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

	BTB08-200AW	BTB08-800AW	BTB08-400AW	BTB08-600AW	BTB08-700AW
Description	TRIAC,200V V(DRM),8A I(T)RMS,TO-220	TRIAC,800V V(DRM),8A I(T)RMS,TO-220	TRIAC,400V V(DRM),8A I(T)RMS,TO-220	TRIAC,600V V(DRM),8A I(T)RMS,TO-220	TRIAC,700V V(DRM),8A I(T)RMS,TO-220
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Critical rise rate of commutation voltage - minimum value	10 V/us	10 V/us	10 V/us	10 V/us	10 V/us
Critical rise rate of minimum off-state voltage	750 V/us	750 V/us	750 V/us	750 V/us	750 V/us
Maximum DC gate trigger current	75 mA	75 mA	75 mA	75 mA	75 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	100 mA	100 mA	100 mA	100 mA	100 mA
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	8 A	8 A	8 A	8 A	8 A
Off-state repetitive peak voltage	200 V	800 V	400 V	600 V	700 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
